Mil & Data Link Connectors: Wiring Diagram

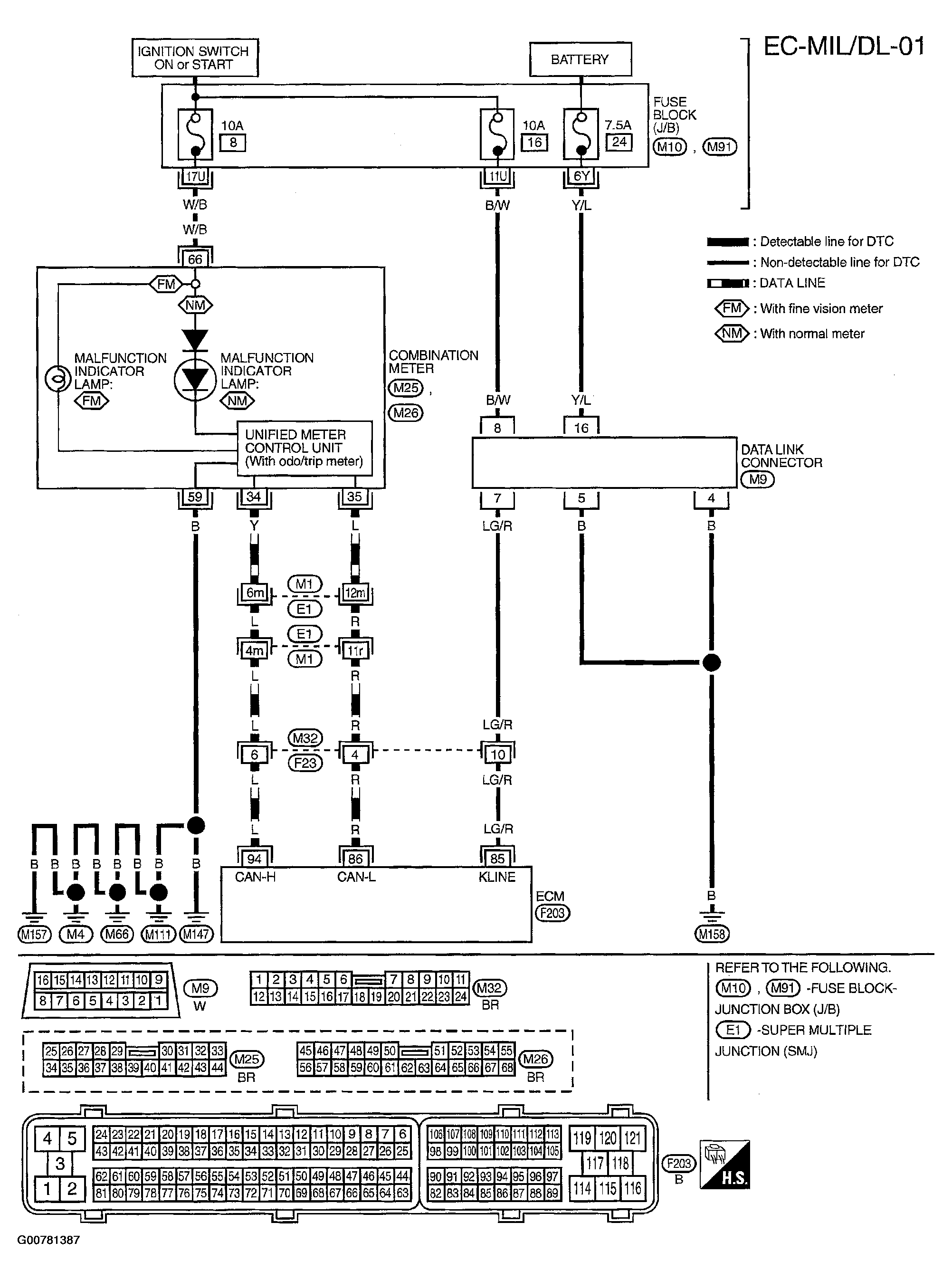

Fig 1: Wiring Diagram - MIL And Data Link Connector

G00781387

Courtesy of NISSAN MOTOR CO., U.S.A.
