Diagnostic Procedure

INSPECTION START
1. Turn ignition switch "ON".
2. Select "CAN DIAG SUPPORT MNTR" in "DATA MONITOR" mode with CONSULT-II.
3. Print out the CONSULT-II screen.
  A/T models with VDC

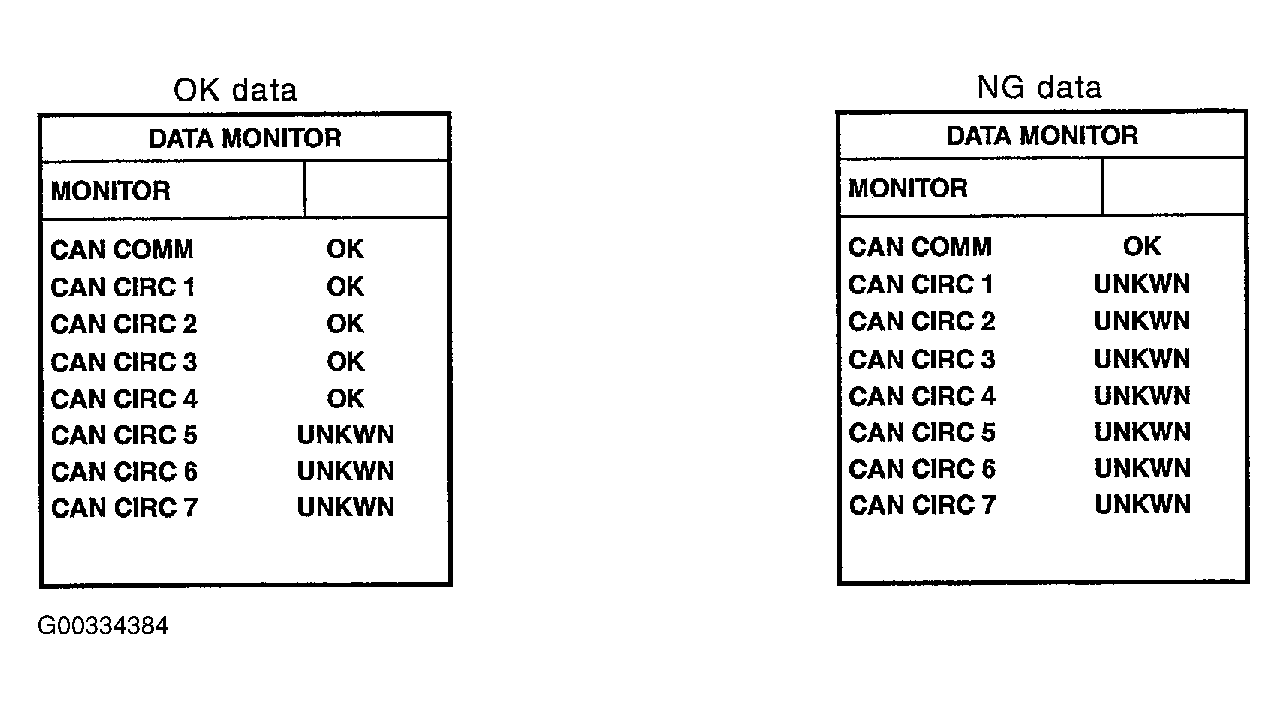

  Fig 1: CONSULT-II Function Display (1 Of 3)
  Courtesy of NISSAN MOTOR CO., U.S.A.

  A/T models without VDC

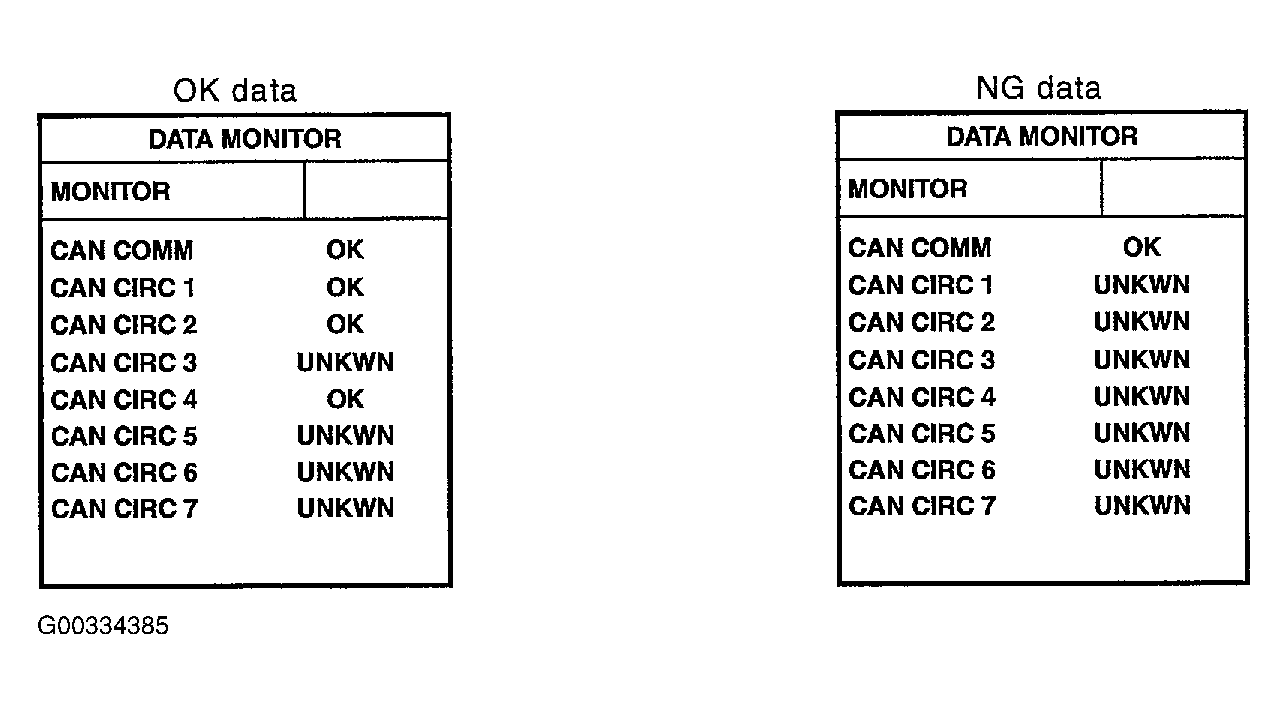

  Fig 2: CONSULT-II Function Display (2 Of 3)
  Courtesy of NISSAN MOTOR CO., U.S.A.

  M/T models

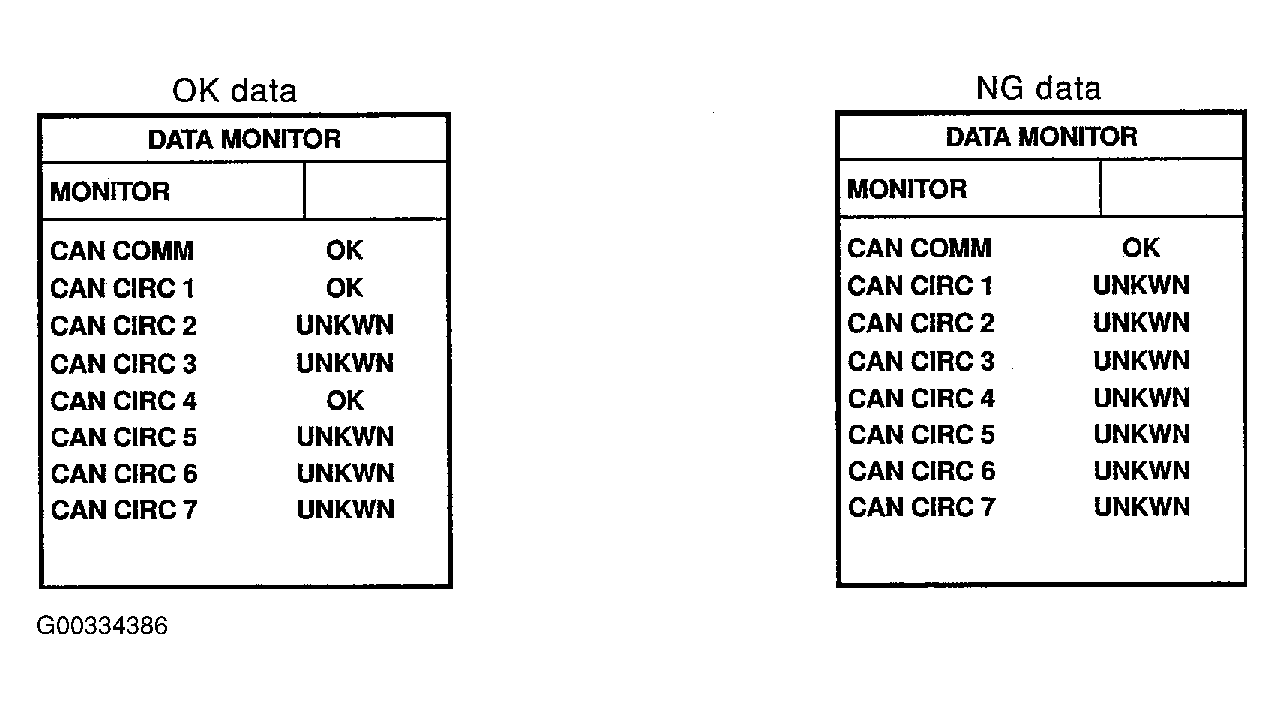

  Fig 3: CONSULT-II Function Display (3 Of 3)
  Courtesy of NISSAN MOTOR CO., U.S.A.
  1. GO to "CAN COMMUNICATION UNIT ".
