DTC P2127, P2128: App Sensor: Wiring Diagram

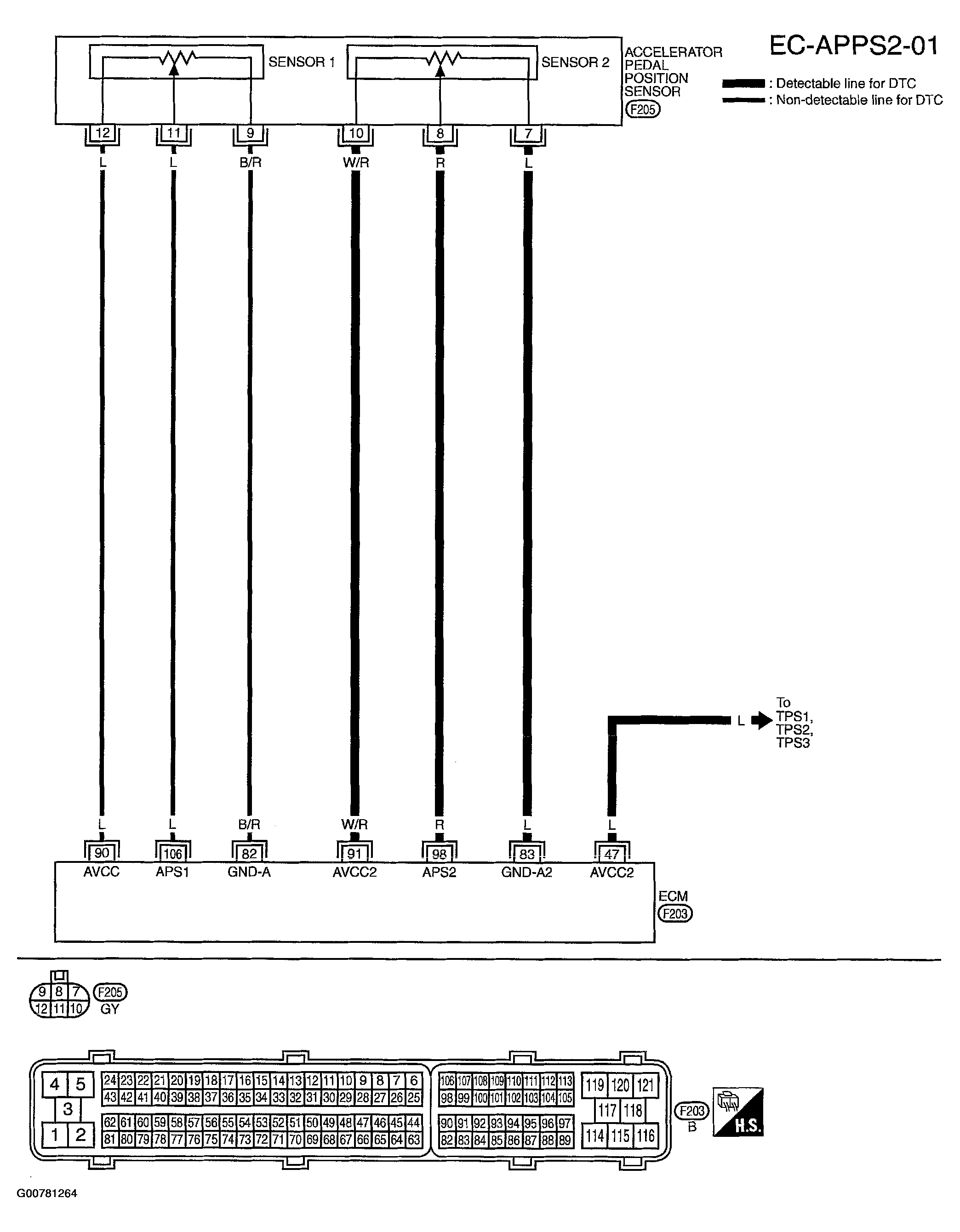

Fig 1: Wiring Diagram - APP Sensor

G00781264

Courtesy of NISSAN MOTOR CO., U.S.A.
