DTC P1805: Brake Switch: Wiring Diagram

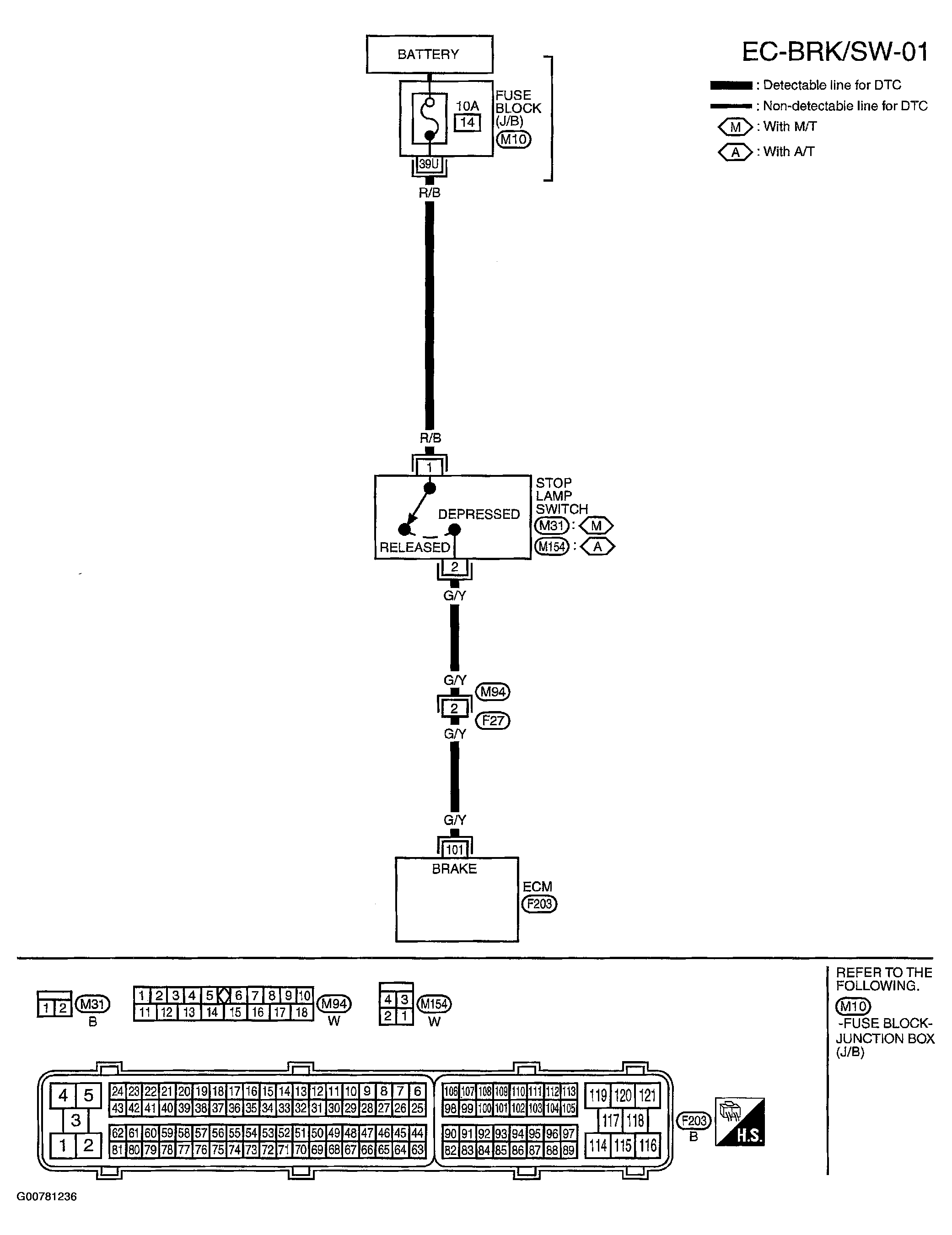

Fig 1: Wiring Diagram - Brake Switch

G00781236

Courtesy of NISSAN MOTOR CO., U.S.A.
