DTC P1572: ASCD Brake Switch: Wiring Diagram

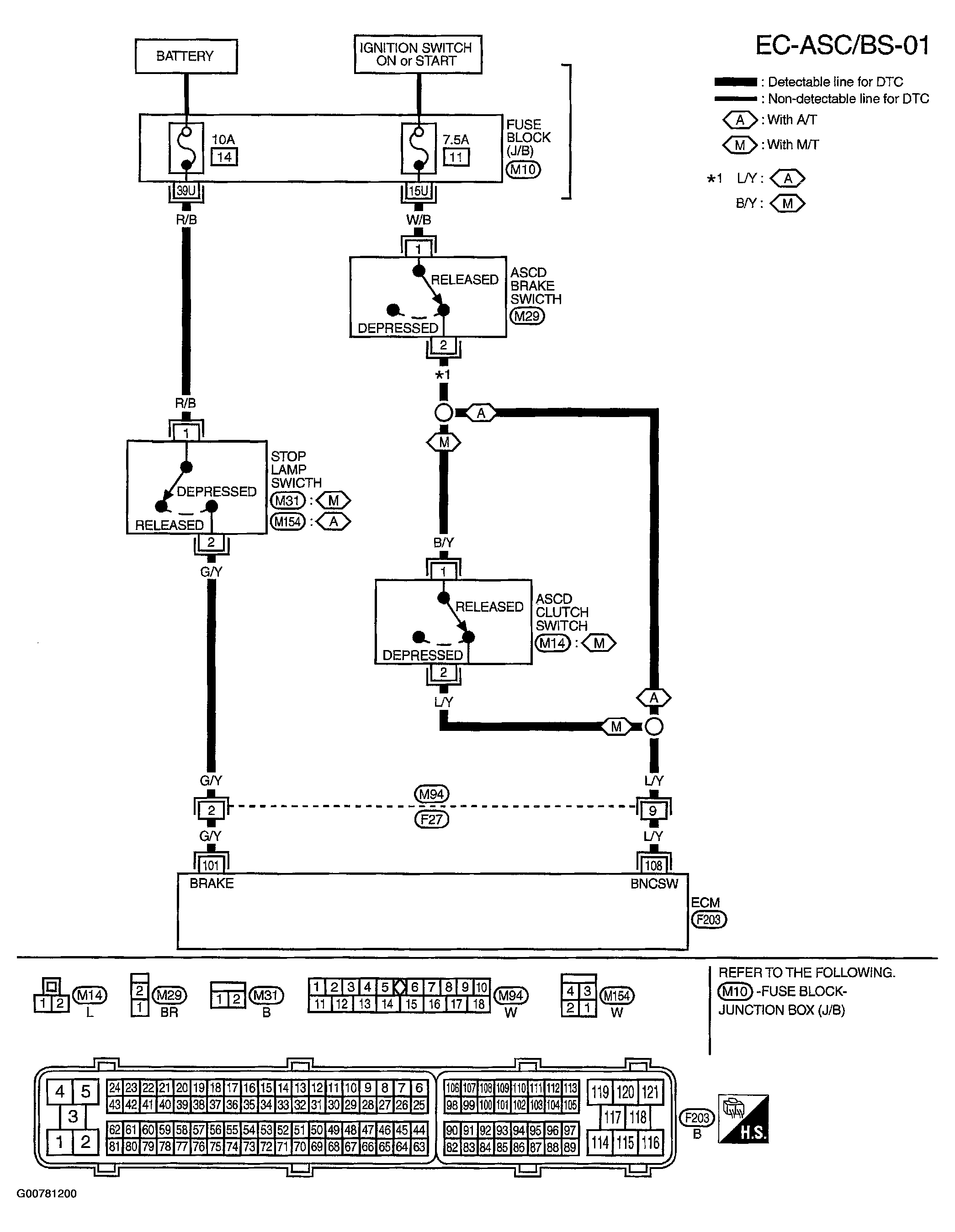

Fig 1: Wiring Diagram - ASCD Brake Switch

G00781200

Courtesy of NISSAN MOTOR CO., U.S.A.
