On Board Diagnosis Procedure

This self-diagnosis has the one trip detection logic. The MIL will not light up for this self-diagnosis.

NOTE: If DTC P1564 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer to DTC P0605 ECM .

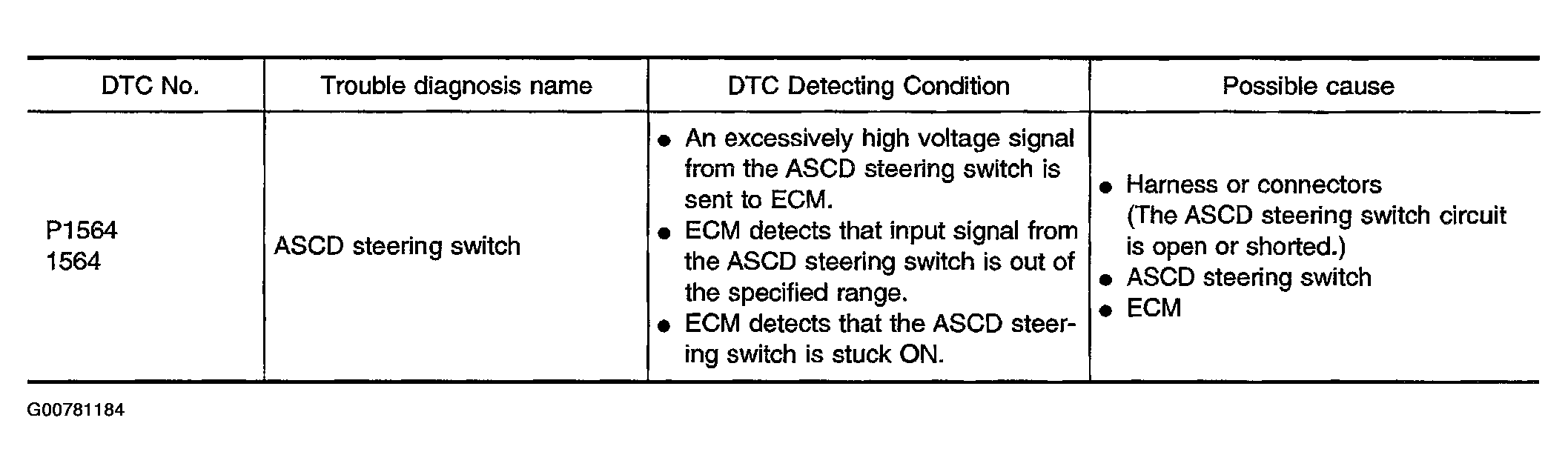

Fig 1: DTC P1564 Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
