DTC P1165: Swirl Control Valve Control Vacuum Check Switch: Wiring Diagram

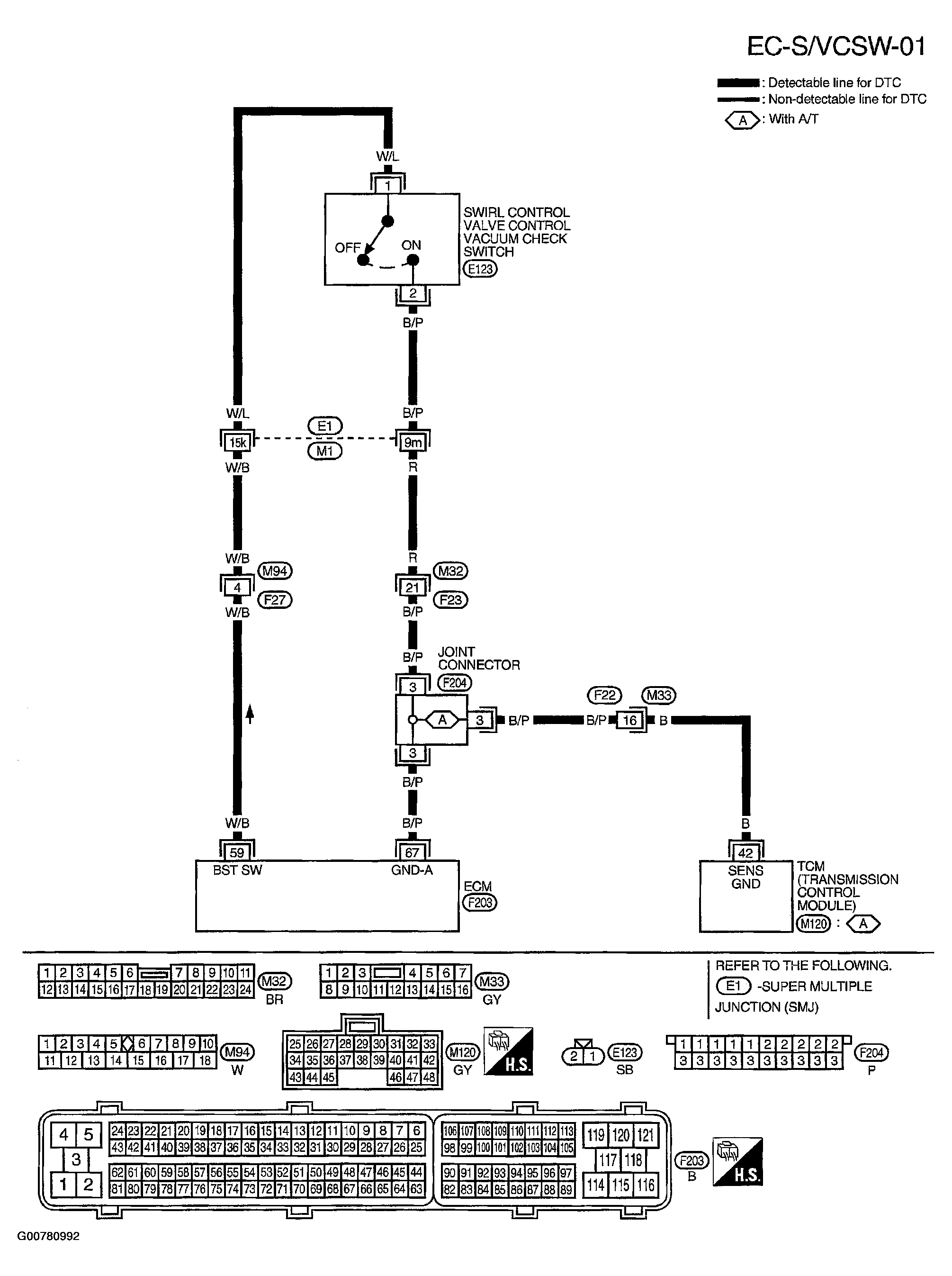

Fig 1: Swirl Control Valve Control Vacuum Check Switch - Wiring Diagram

G00780992

Courtesy of NISSAN MOTOR CO., U.S.A.
