DTC P1130: Swirl Control Valve Control Solenoid Valve: Wiring Diagram

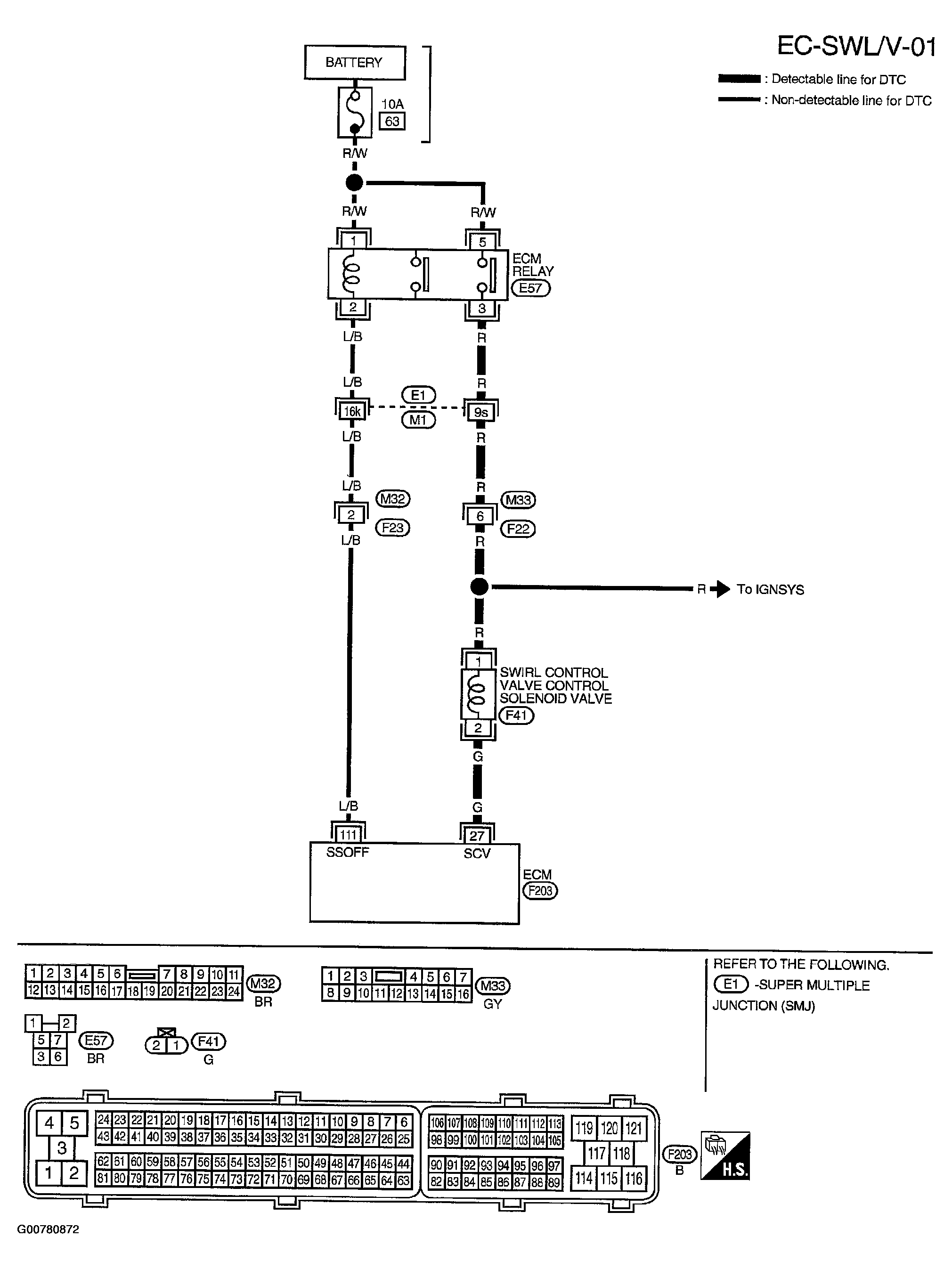

Fig 1: Wiring Diagram

G00780872

Courtesy of NISSAN MOTOR CO., U.S.A.
