Diagnostic Procedure

INTAKE VALVE TIMING CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT
1. Turn ignition switch "OFF".
2. Disconnect intake valve timing control solenoid valve harness connector.

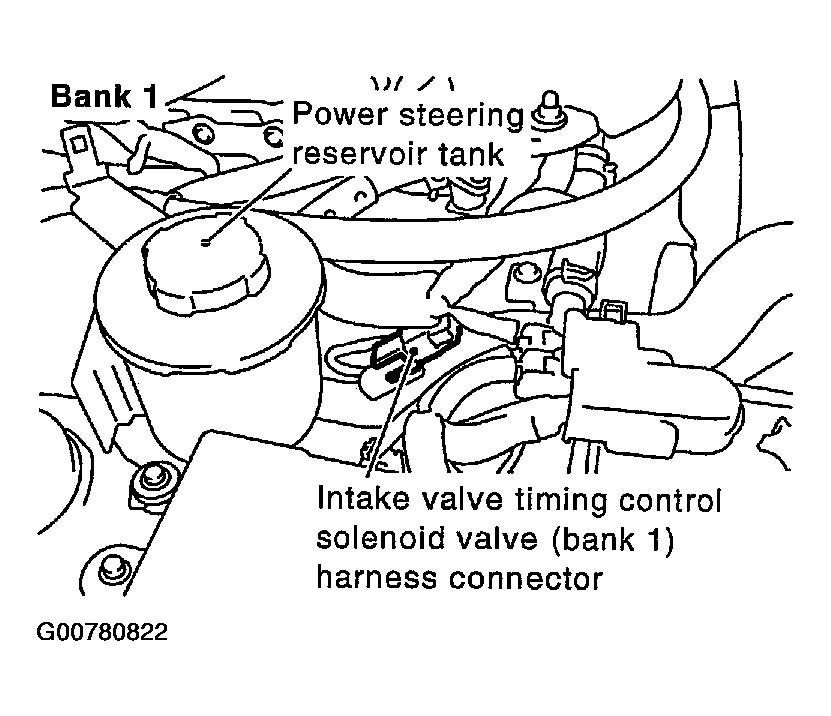

  Fig 1: Identifying Intake Valve Timing Control Solenoid Valve (Bank 1) Harness Connector
  Courtesy of NISSAN MOTOR CO., U.S.A.

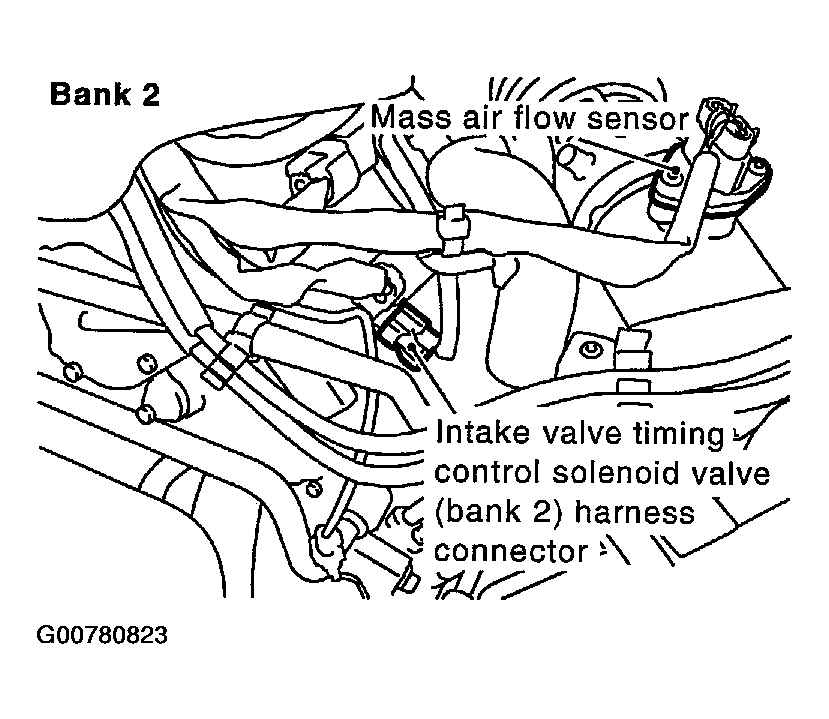

  Fig 2: Identifying Intake Valve Timing Control Solenoid Valve (Bank 2) Harness Connector
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Turn ignition switch "ON".
4. Check voltage between intake valve timing control solenoid valve terminal 1 and ground with CONSULT-II or tester.

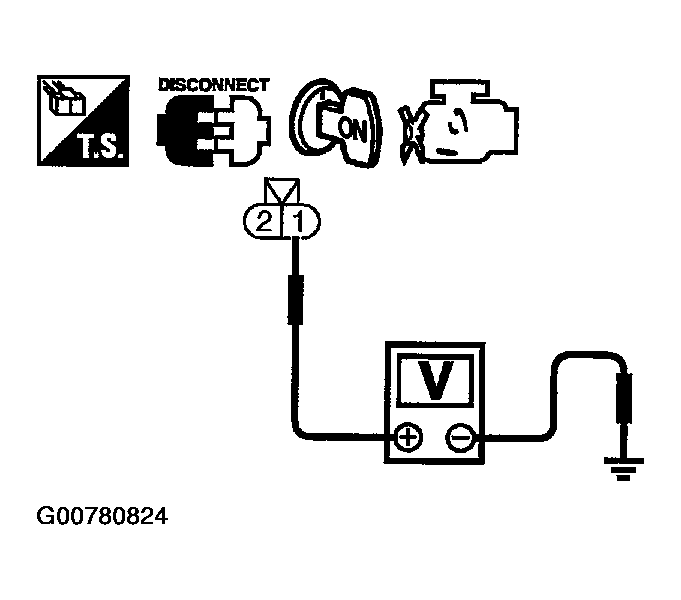

  Fig 3: Checking Voltage Between Intake Valve Timing Control Solenoid Valve Terminal 1 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Voltage: Battery voltage
OK or NG
1. OK: GO TO 3 .
2. NG: GO TO 2.
DETECT MALFUNCTION PART
Check the following.
- Harness connectors E1, M1
- Harness connectors M33, F22
- Harness continuity between intake valve timing control solenoid valve and ECM relay
1. Repair harness or connectors.
CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE OUTPUT CIRCUIT FOR OPEN AND SHORT
1. ignition switch "OFF".
2. Disconnect ECM harness connector.
3. Check harness connectors continuity between ECM terminal 11 (bank 1) or 10 (bank 2) and intake valve timing control solenoid valve terminal 2. Refer to WIRING DIAGRAM .
  Continuity should exist.
4. Also check harness for short to ground and short to power.
OK or NG
1. OK: GO TO 4.
2. NG: Repair open circuit or short to ground or short to power in harness or connectors.
CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE
Check resistance between intake valve timing control solenoid valve terminals as follows.

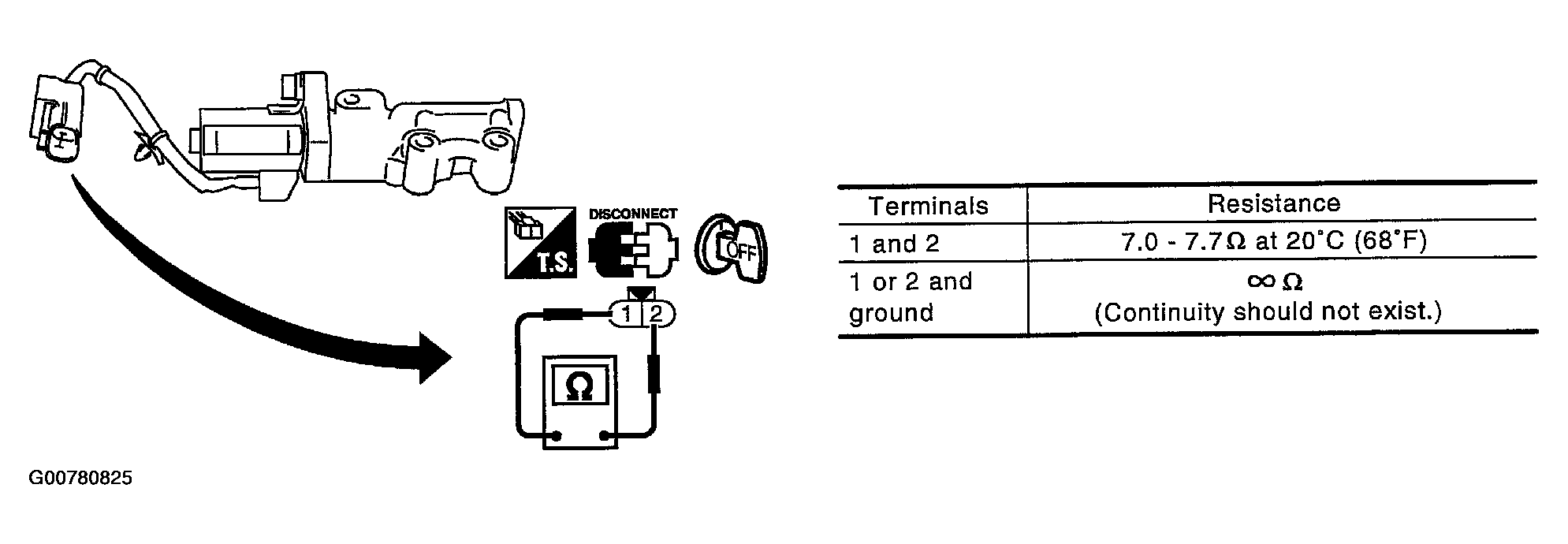

Fig 4: Checking Resistance Between Intake Valve Timing Control Solenoid Valve Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: GO TO 5.
2. NG: Repair intake valve timing control solenoid valve.
CHECK INTERMITTENT INCIDENT
Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT " .
1. INSPECTION END
