Component Description

Battery voltage is supplied to the ECM even when the ignition switch is turned OFF for the ECM memory function of the DTC memory, the air-fuel ratio feedback compensation value memory, the idle air volume learning value memory, etc.

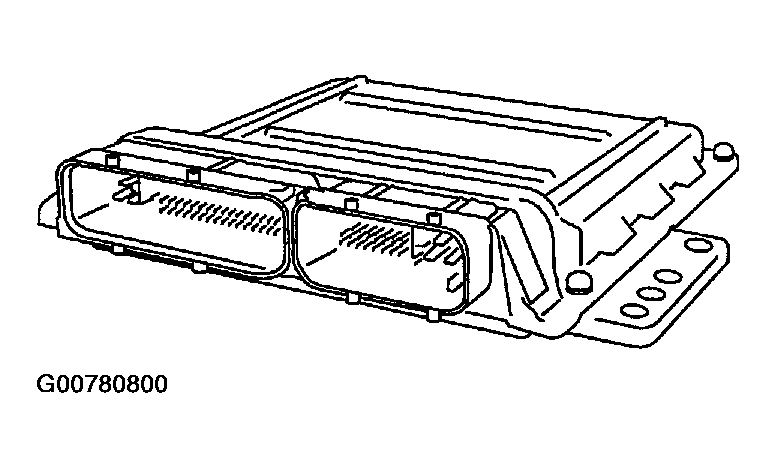

Fig 1: Identifying Electronic Control Module Pin Connector

Courtesy of NISSAN MOTOR CO., U.S.A.
