Camshaft Position Sensor (Phase)

  1. Loosen the fixing bolt of the sensor.
  2. Disconnect camshaft position sensor (PHASE) harness connector.
  3. Remove the sensor.
  4. Visually check the sensor for chipping.

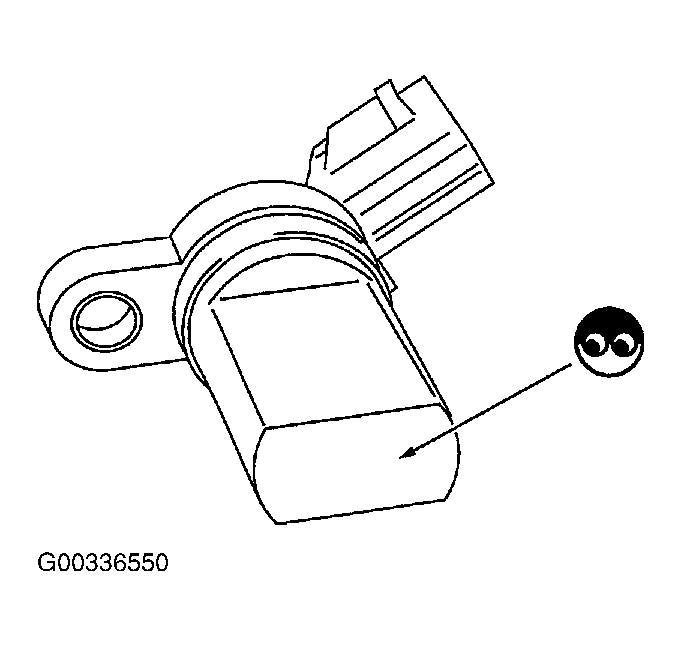

    Fig 1: Identifying Visually Checking Sensor For Chipping
    G00336550Courtesy of NISSAN MOTOR CO., U.S.A.

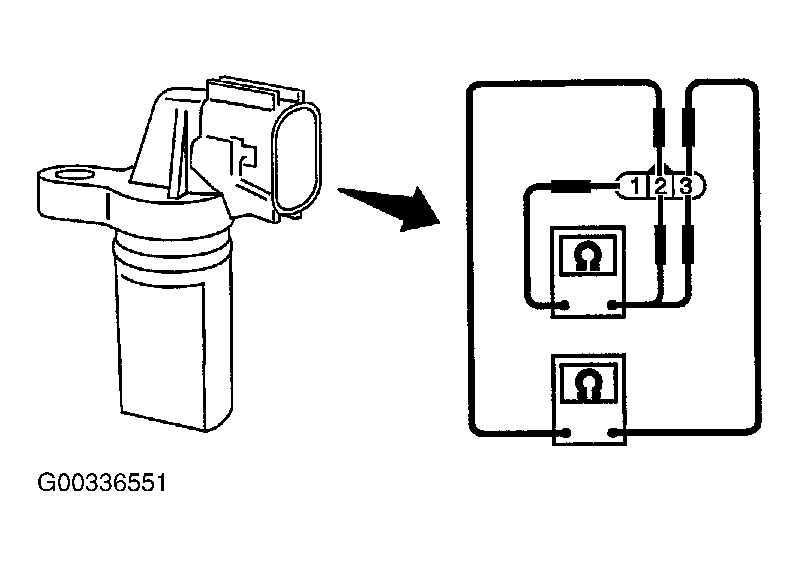

    Fig 2: Checking Resistance
    G00336551Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Check resistance as shown in the figure.

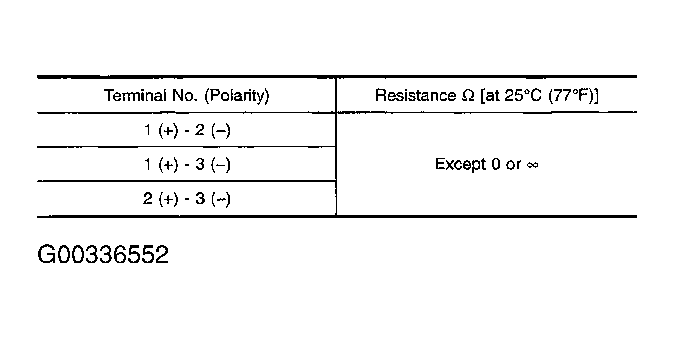

Fig 3: Terminal Resistance Chart
G00336552Courtesy of NISSAN MOTOR CO., U.S.A.
