DTC P0327, P0328: KS: Wiring Diagram

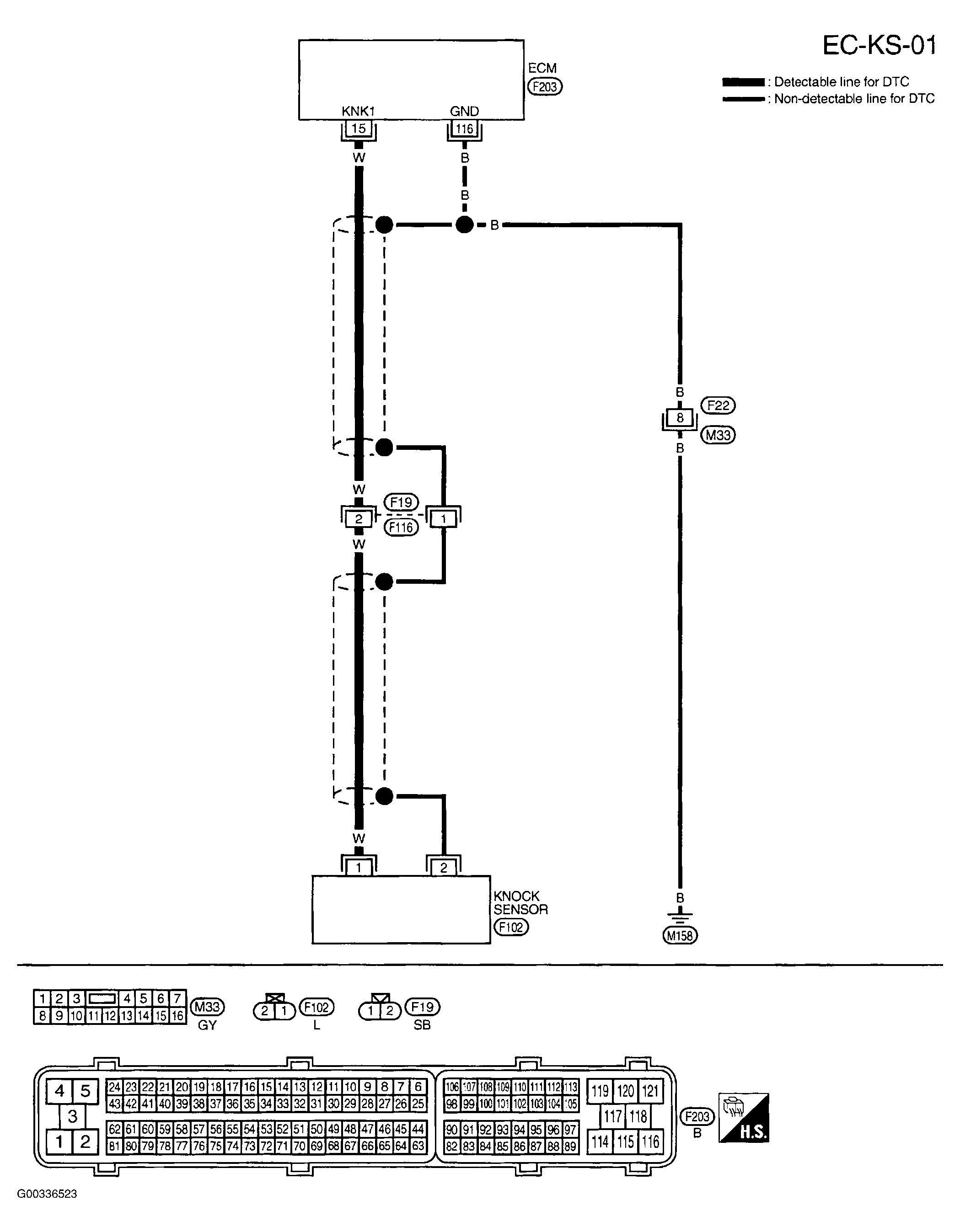

Fig 1: Wiring Diagram (EC-KS-01)

G00336523

Courtesy of NISSAN MOTOR CO., U.S.A.
