DTC P0139, P0159: Ho2S2
>>
Wiring Diagram
>>
Bank 1
Bank 1

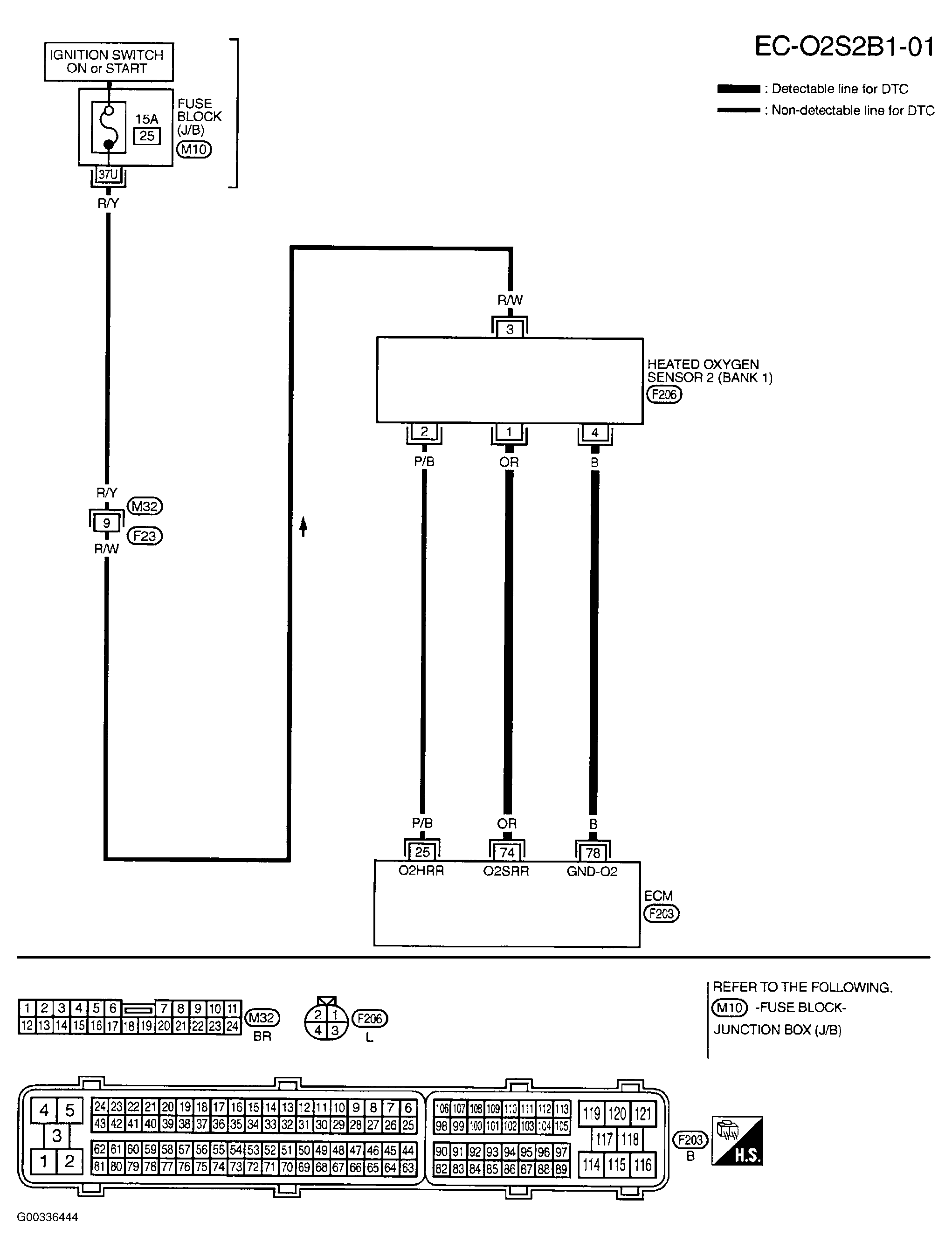

Fig 1: Wiring Diagram - Heated Oxygen Sensor 2 (Bank 1)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
