On Board Diagnosis Logic: Notes

These self-diagnoses have the one trip detection logic.

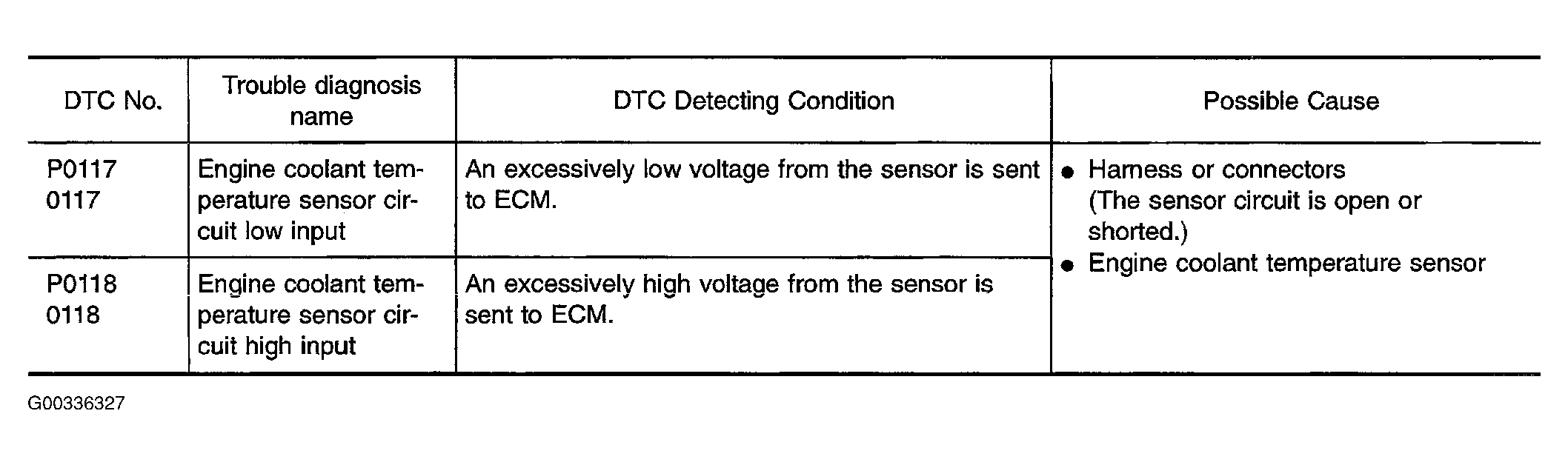

Fig 1: DTC P0117 And P0118 Diagnostic Chart
G00336327Courtesy of NISSAN MOTOR CO., U.S.A.
