DTC P0102, P0103: MAF Sensor: Wiring Diagram

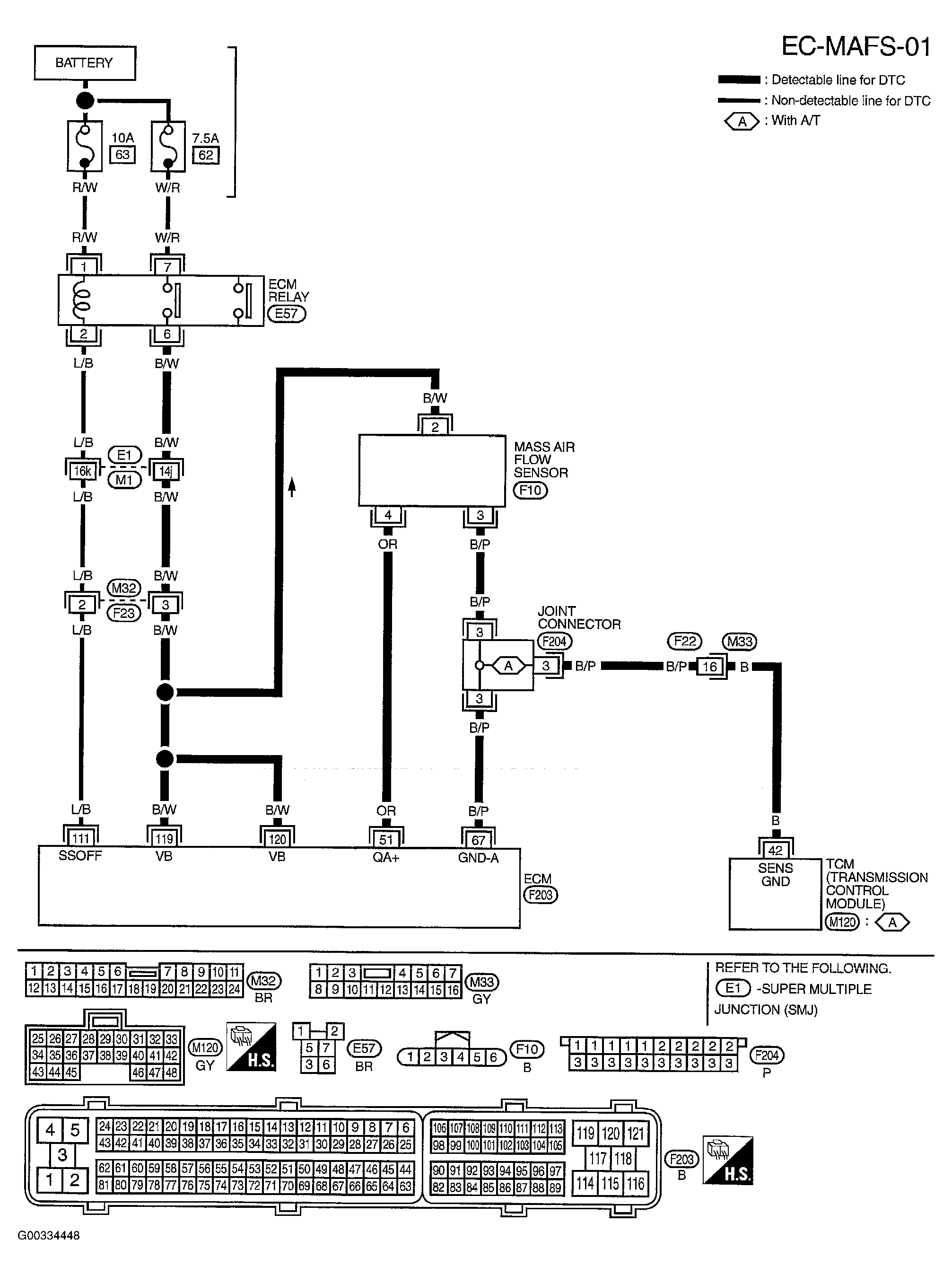

Fig 1: Wiring Diagram

G00334448

Courtesy of NISSAN MOTOR CO., U.S.A.
