DTC Confirmation Procedure: Notes

NOTE: If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

TESTING CONDITION:

Before performing the following procedure, confirm that battery voltage is between 11V and 16V at idle.

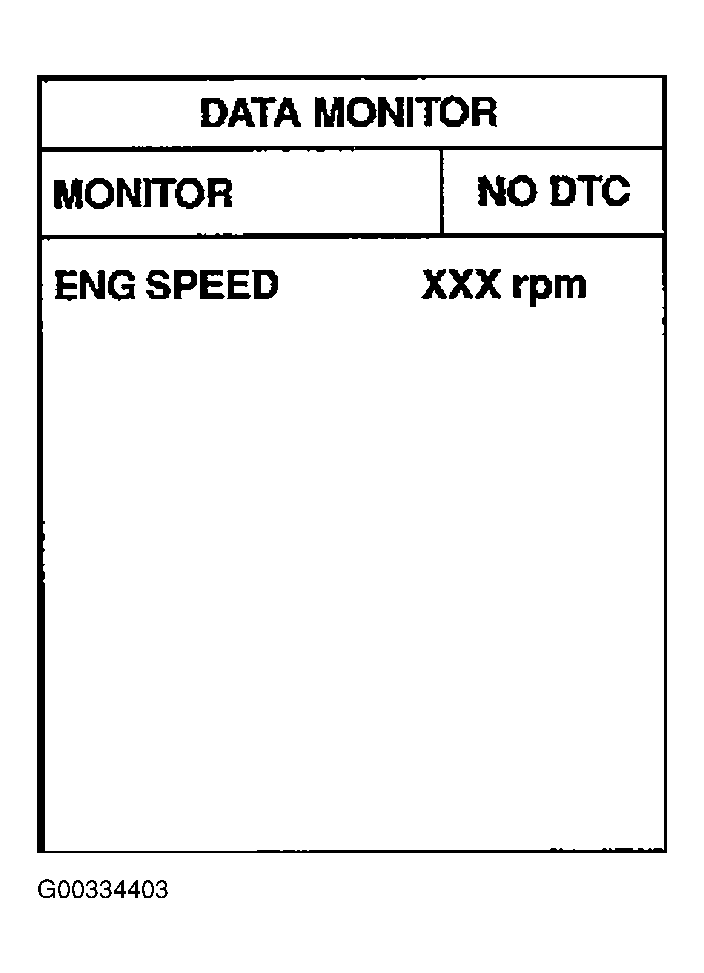

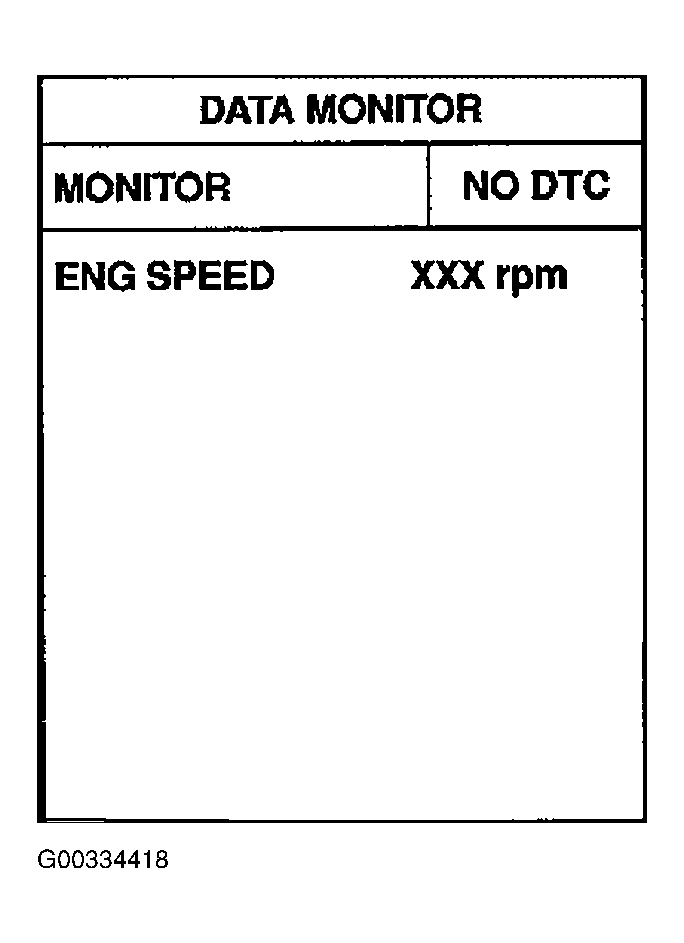

Fig 1: Data Monitor Display

Courtesy of NISSAN MOTOR CO., U.S.A.
