Control Units
CONTROL UNITS LOCATION

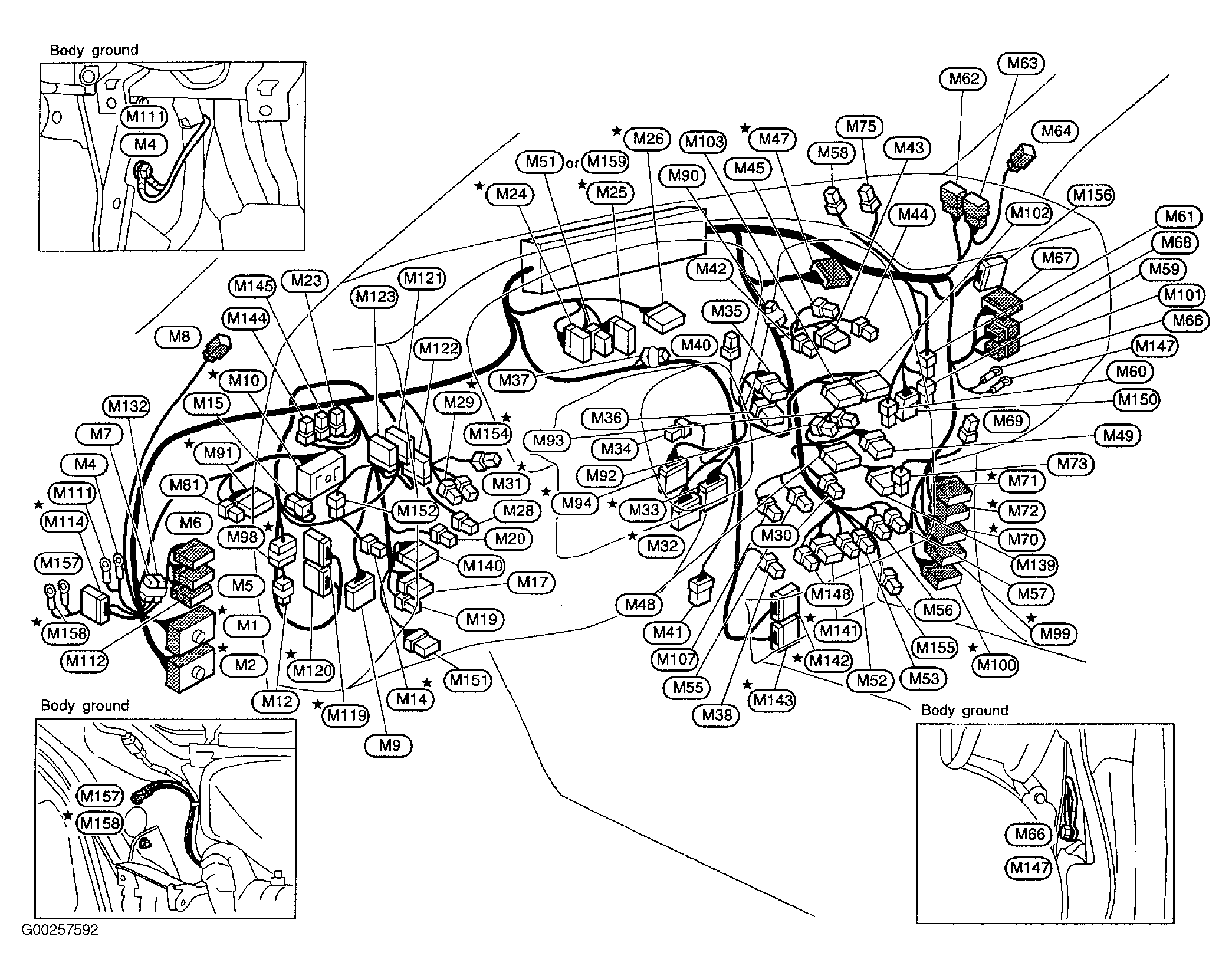

| Component | Location |
|---|---|
| ABS Actuator & Electric Unit | On right side of engine compartment. See Figure . |
| A/C Auto Amplifier | Behind center of dash. See Figure . |

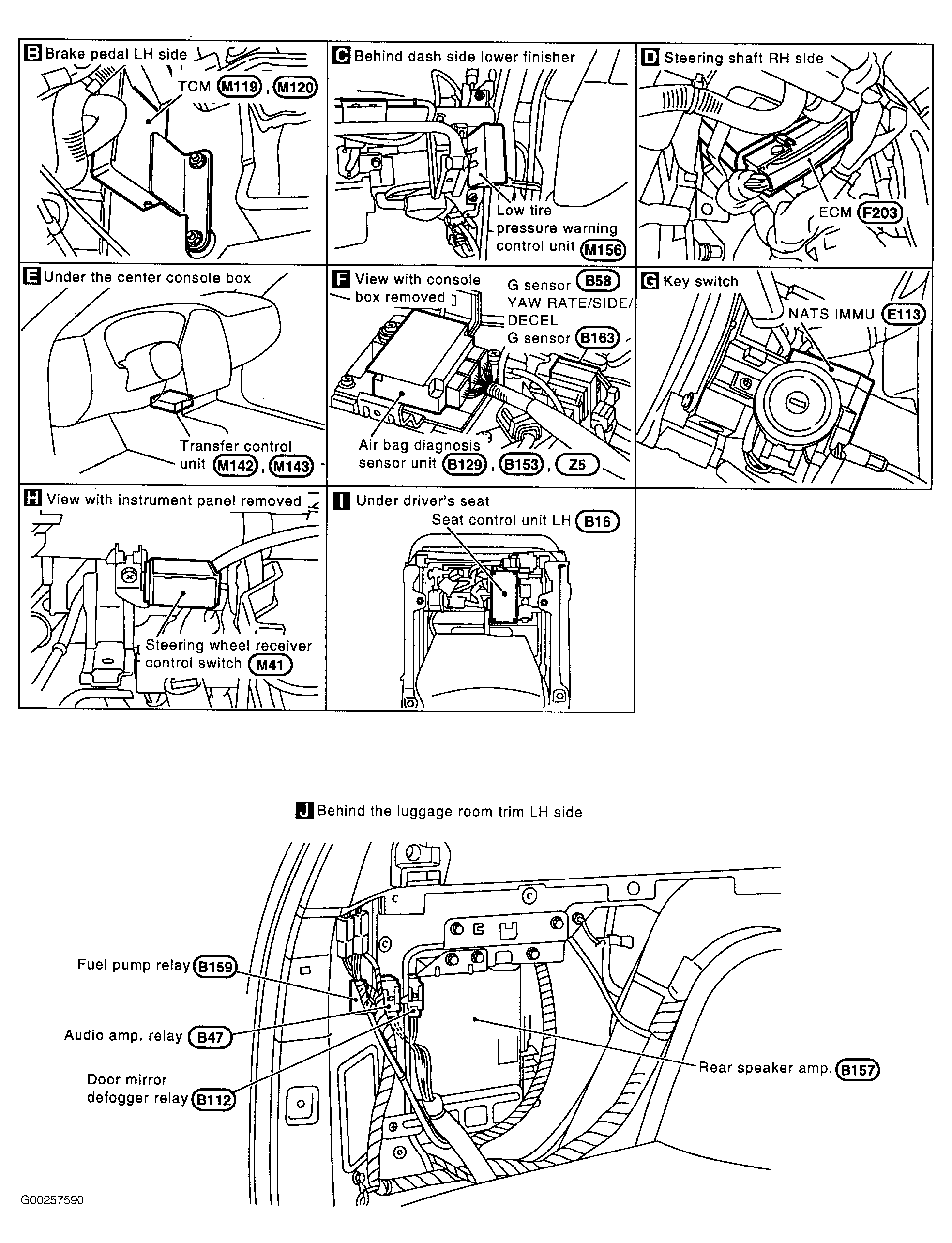

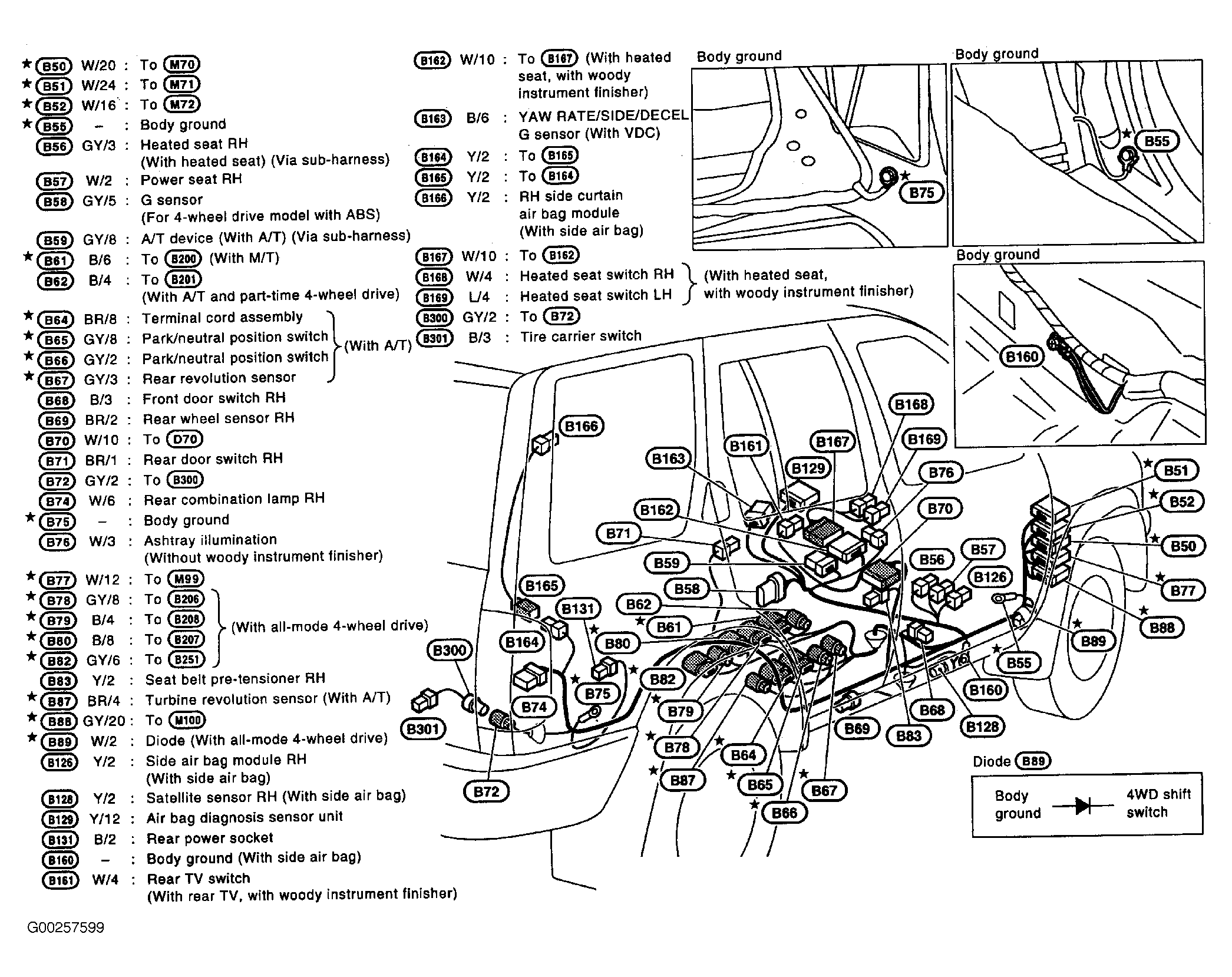

| Air Bag Diagnosis Sensor Unit | Below rear of center console. See Figure . |

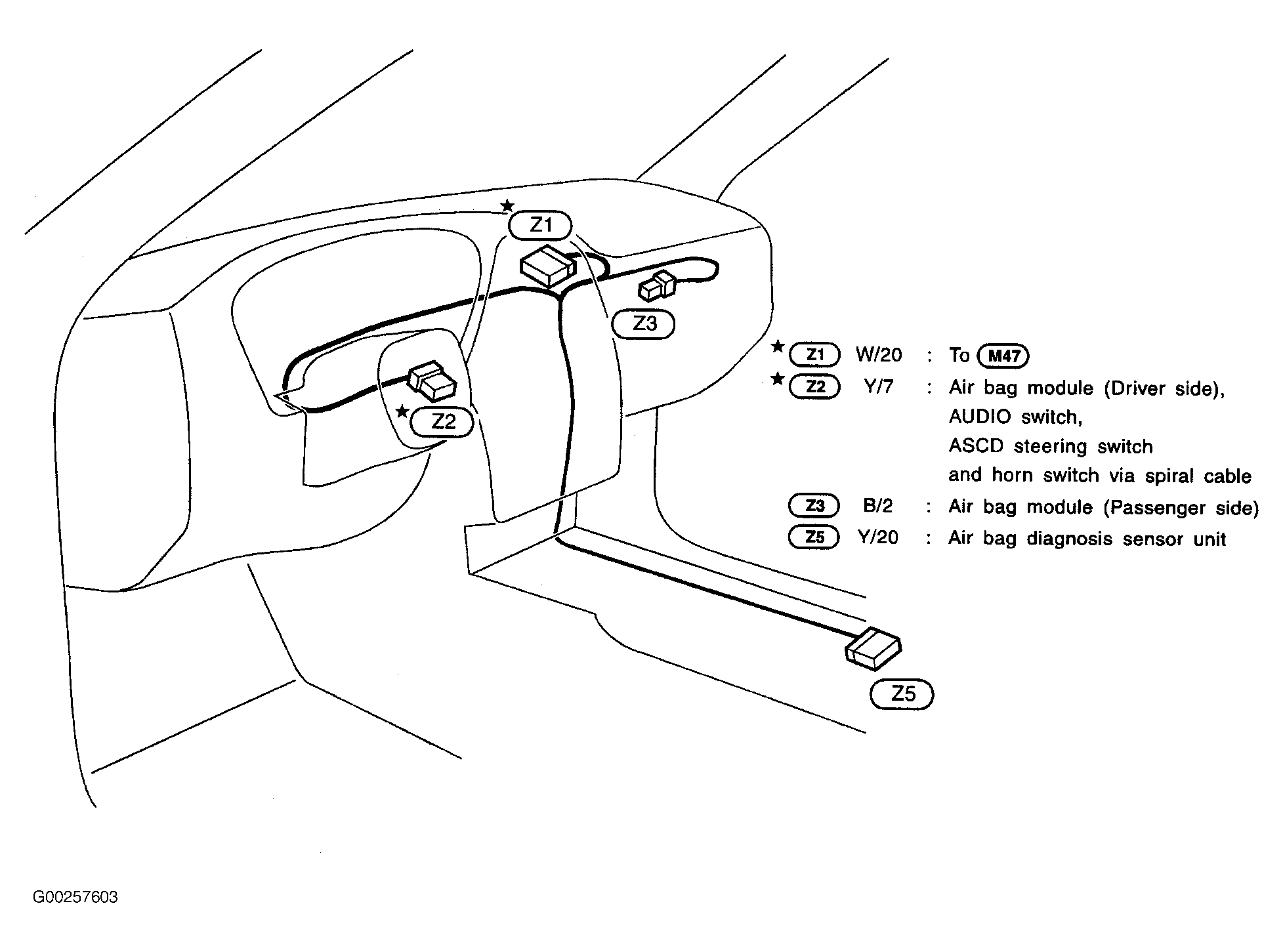

| Air Bag Module (Driver Side) (Z2) | In steering column. See Figure . |
| Air Bag Module (Passenger Side) (Z3) | Behind right side of dash. See Figure . |
| Combination Flasher Unit (M15) | Behind left side of dash. See Figure . |
| Daytime Light Control Unit (Canada) | On right front fenderwell. See Figure . |
| ECM | Behind center of dash. See Figure . |

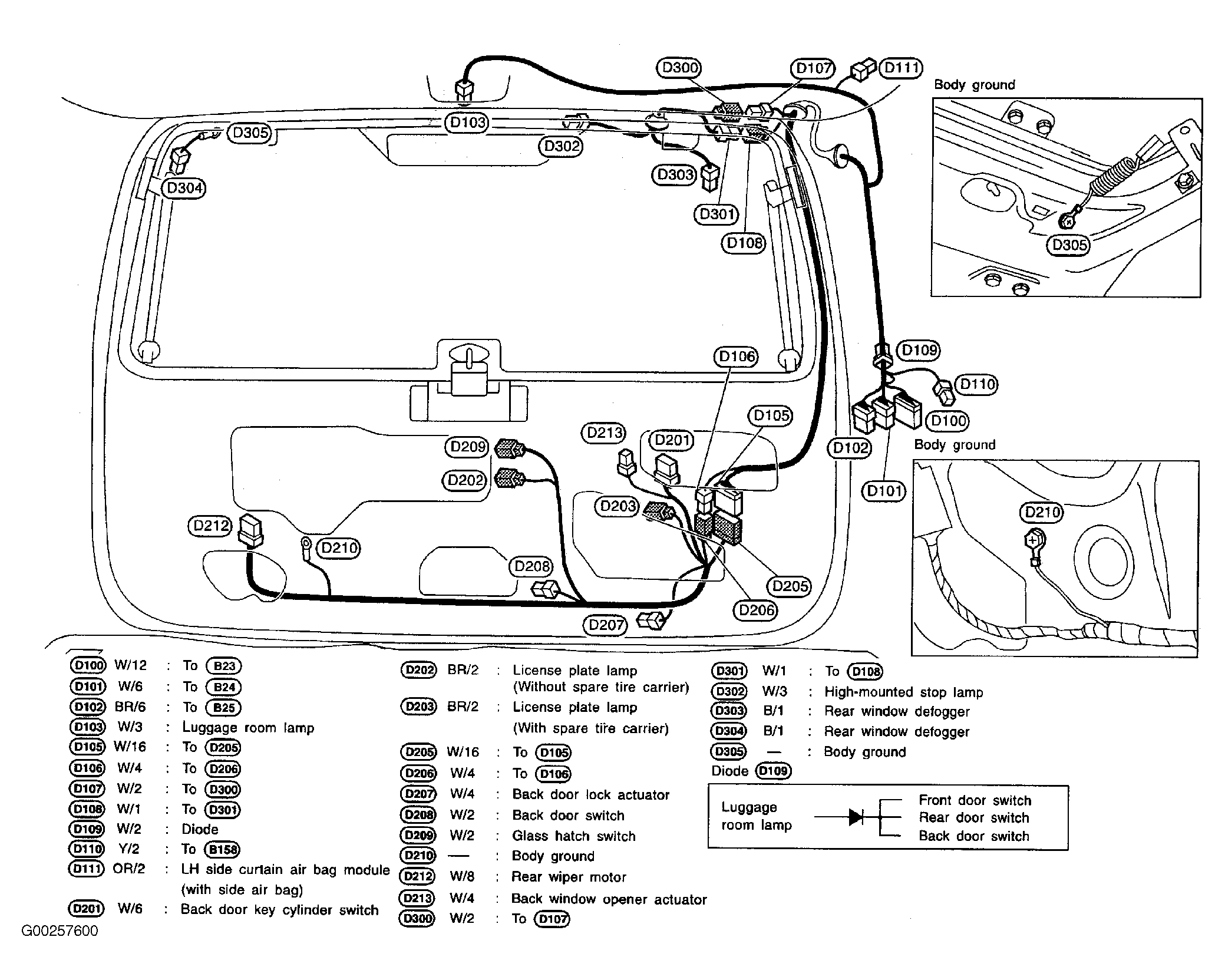

| LH Side Curtain Air Bag Module (W/Side Air Bag) (D111) | At top of left "D" pillar. See Figure . |
| Low Tire Pressure Warning Control Unit | Behind upper right side of dash. See Figure . |
| NATS IMMU | On ignition key cylinder. See Figure . |
| RH Side Curtain Air Bag Module (W/Side Air Bag) (B166) | At top of right "D" pillar. See Figure . |

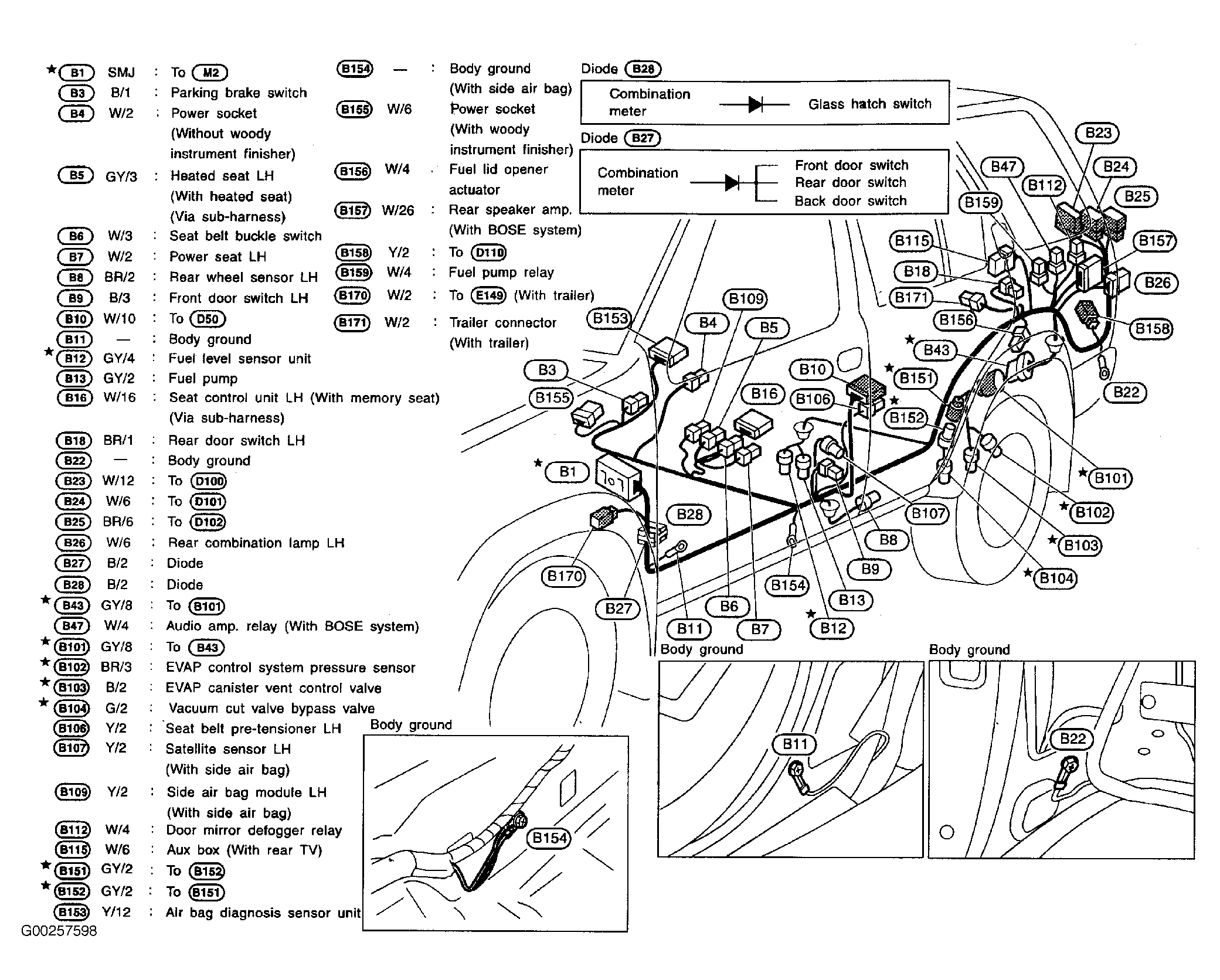

| Seat Control Unit LH (W/Memory Seat) (Via Sub-Harness) | Under driver seat. See Figure . |
| Side Air Bag Module LH (W/Side Air Bag) (B109) | Under left front seat. See Figure . |
| Side Air Bag Module RH (W/Side Air Bag) (B126) | Under right front seat. See Figure . |
| Smart Entrance Control Unit | Behind dash, next to fuse block (J/B). See Figure . |
| TCM | Behind dash, left of steering column. See Figure . |

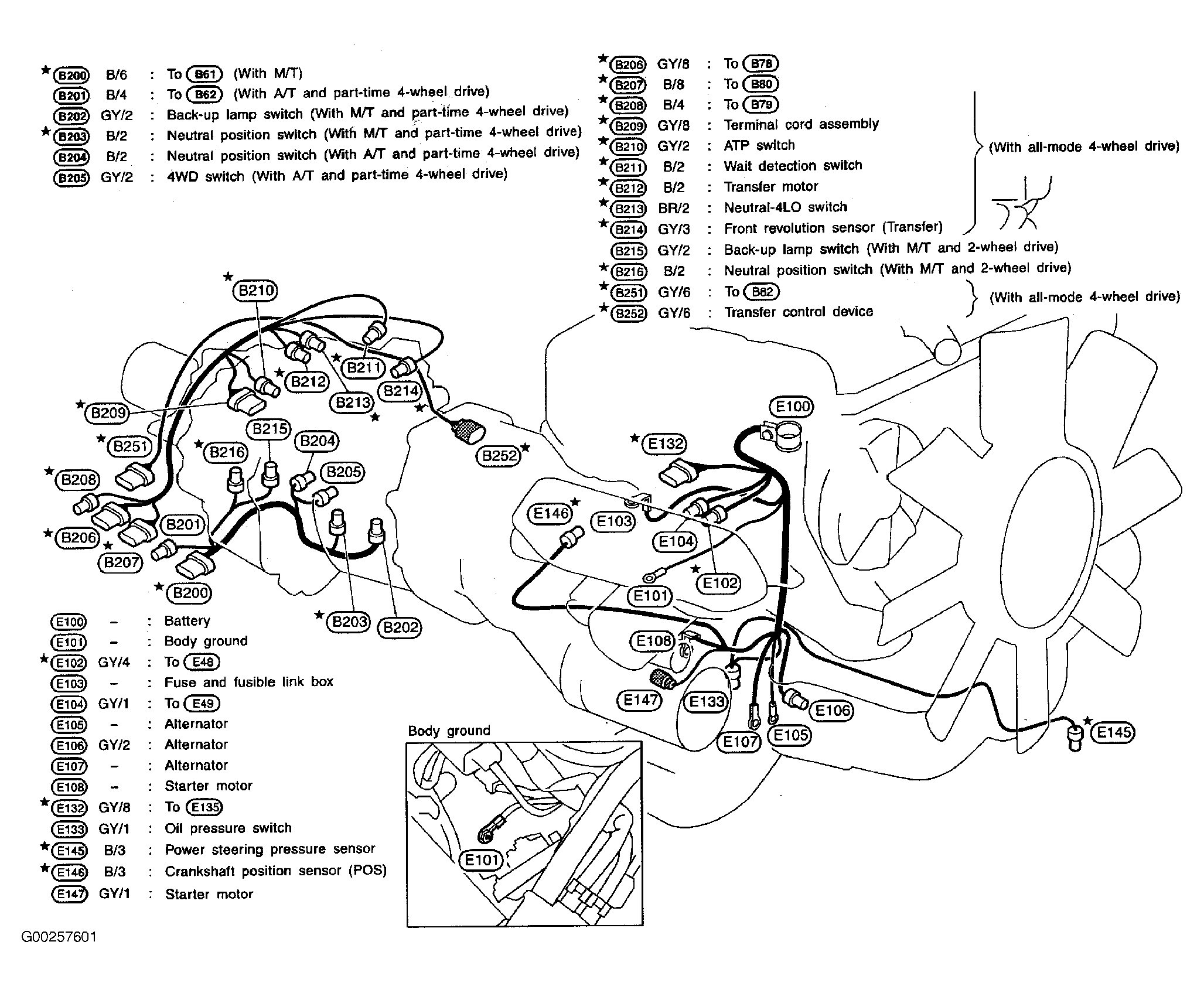

| Transfer Control Device (W/All-Mode 4-Wheel Drive) (B252) | At top front of transmission. See Figure . |
| Transfer Control Unit | Behind lower center dash panel. See Figure . |
