Operation Procedure

CAUTION:
  • Do not perform active test while driving the vehicle.
  • Make sure to completely bleed air from brake system.
  • Active test cannot be performed when ABS warning lamp is on.
  1. Connect CONSULT-II to data link connector and start the engine.
  2. Touch "START" on the display.
  3. Touch "ABS" and "ACTIVE TEST".

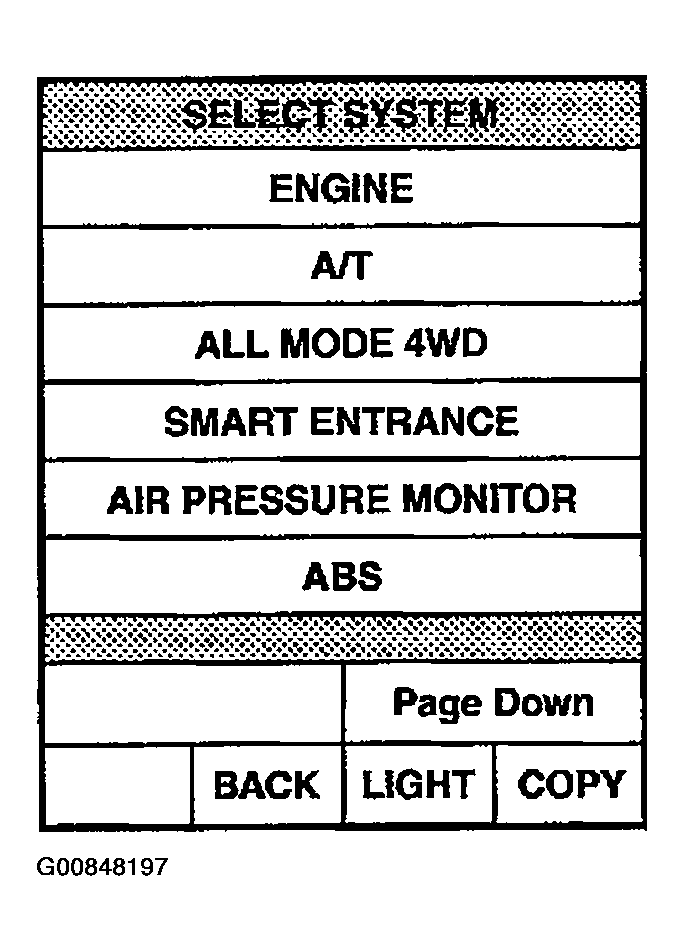

    Fig 1: Displaying ABS On CONSULT-II Screen
    G00848197Courtesy of NISSAN MOTOR CO., U.S.A.

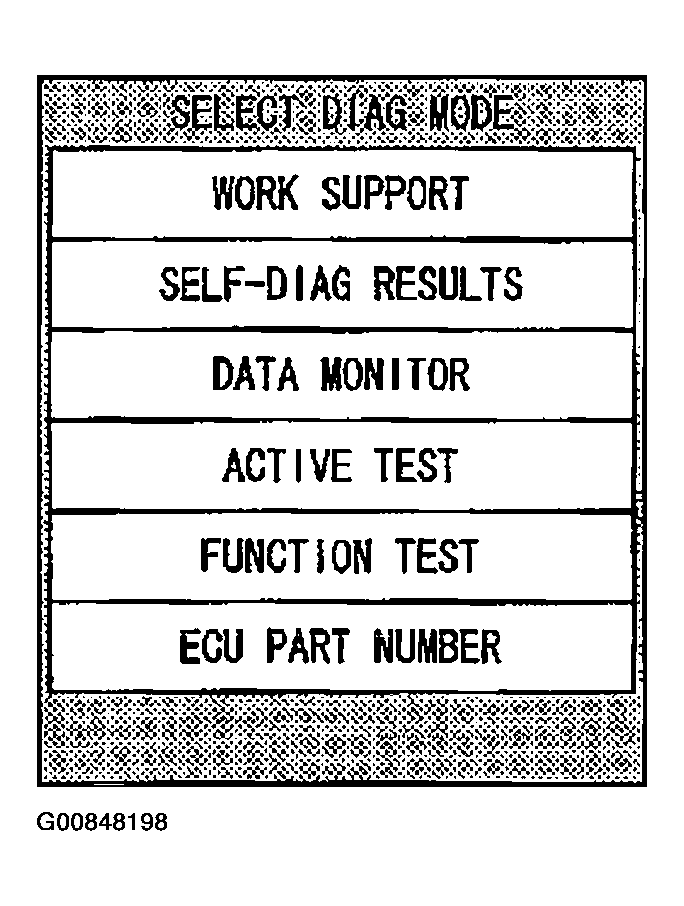

    Fig 2: Displaying ACTIVE TEST On CONSULT-II Screen
    G00848198Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Test item selection screen is displayed.
  5. Touch necessary test item.

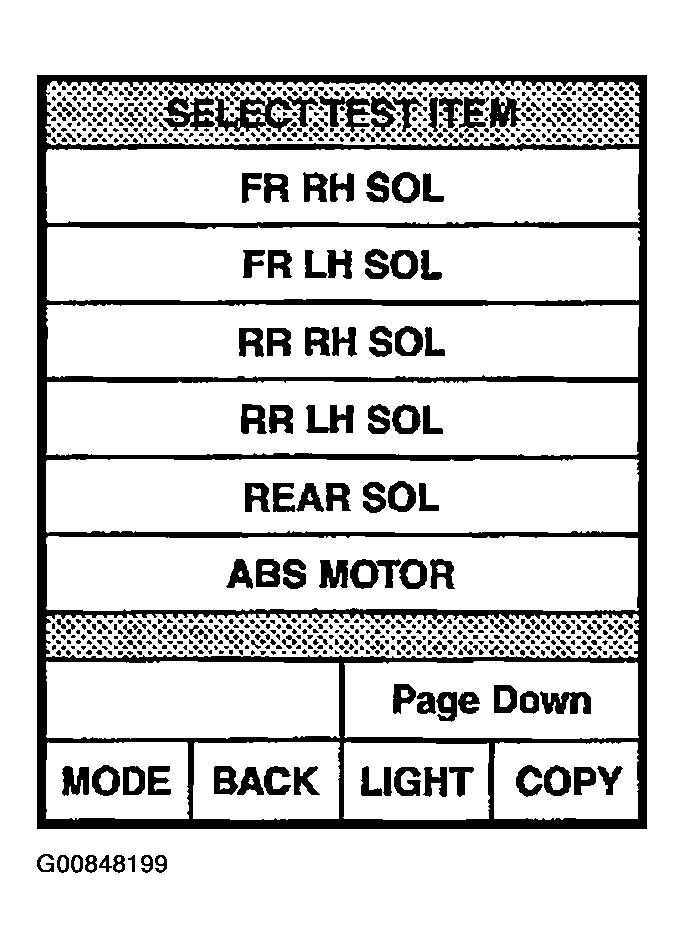

    Fig 3: Displaying Test Item Selection Screen
    G00848199Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "START" with "MAIN SIGNALS" line inverted.

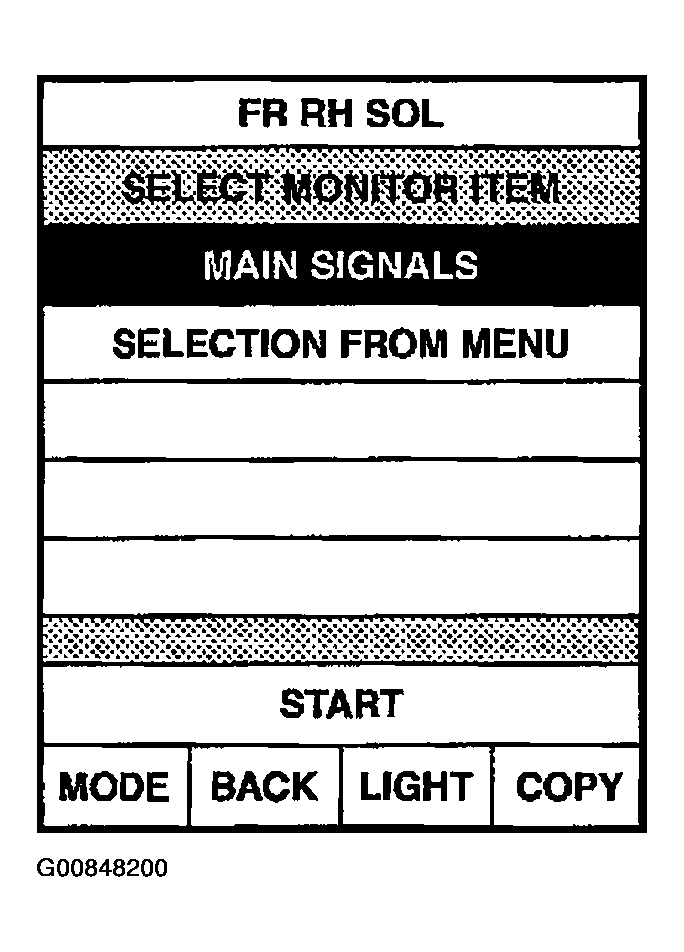

    Fig 4: Displaying MAIN SIGNALS On CONSULT-II Screen
    G00848200Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Active test screen is displayed.

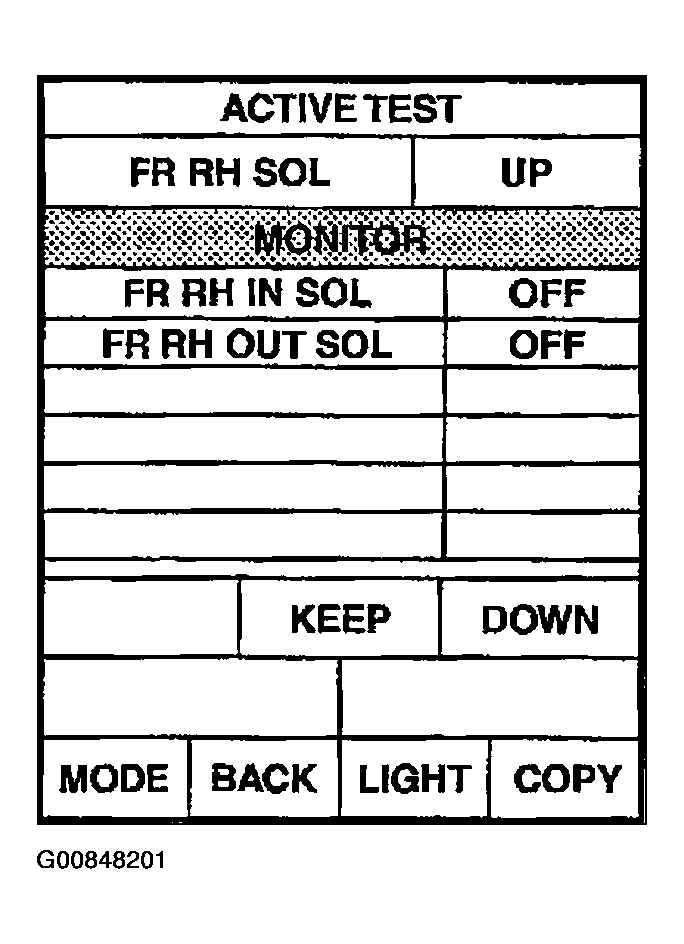

    Fig 5: Displaying Active Test Screen
    G00848201Courtesy of NISSAN MOTOR CO., U.S.A.
