Calibration of Decel G Sensor
- After removing/installing or replacing ABS actuator and electric unit (control unit), suspension components, or after adjusting wheel alignment or replacing yaw rate/side/decel G sensor, make sure to calibrate decel G sensor before running vehicle.
CAUTION:
To calibrate decel G sensor, make sure to use CONSULT-II. (Adjustment cannot be done without CONSULT-II.)
- Stop vehicle horizontally with front wheels in straight-ahead position.

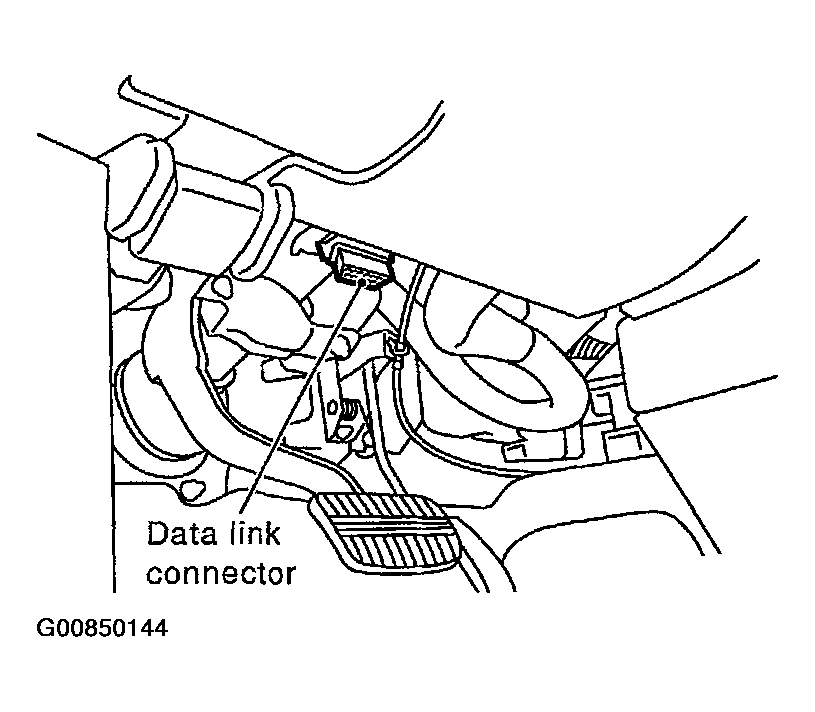

- Connect CONSULT-II and CONSULT-II CONVERTER to data link connector on vehicle, and turn ignition switch ON (do not start engine).

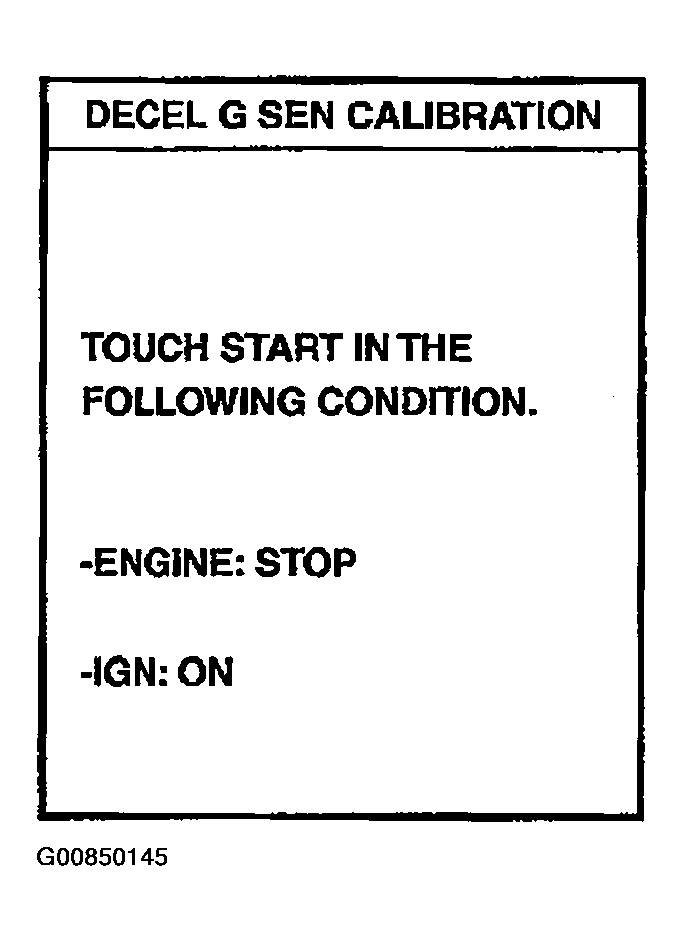

- Touch "ABS", "WORK SUPPORT" and "DECEL G SEN CALIBRATION" on CONSULT-II screen in this order.
- Touch "START".CAUTION: The vehicle should be set horizontal and stationary.
- After approximately 10 seconds, touch "END". (After approximately 60 seconds, it ends automatically.)
- Turn ignition switch OFF, then turn it ON again.CAUTION: Be sure to carry out above operation.
- Run vehicle with front wheels in straight-ahead position, then stop.
- Select "DATA MONITOR", "CONTROL MODULE INPUT ITEM", and "DECEL G SEN" on CONSULT-II screen. Then check that "DECEL G SEN" is within +/-0.08G. If value is more than specification, repeat steps 1 to 5.
- Erase memory of ABS actuator and electric unit (control unit) and ECM.
- Turn ignition switch to OFF.
