Front Sensor Rotor: Removal

  1. Remove the front wheel hub. Refer to REMOVAL, OVERHAUL & INSTALLATION .
  2. Remove the sensor rotor using suitable puller, drift and bearing replacer.

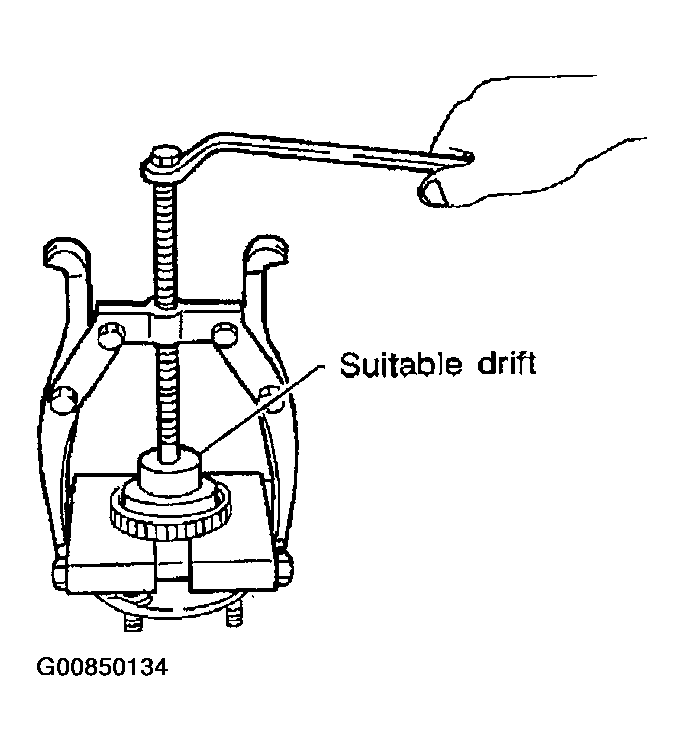

    Fig 1: Removing Front Sensor Rotor
    G00850134Courtesy of NISSAN MOTOR CO., U.S.A.
