Brake Control System - Abs: Description: Schematic

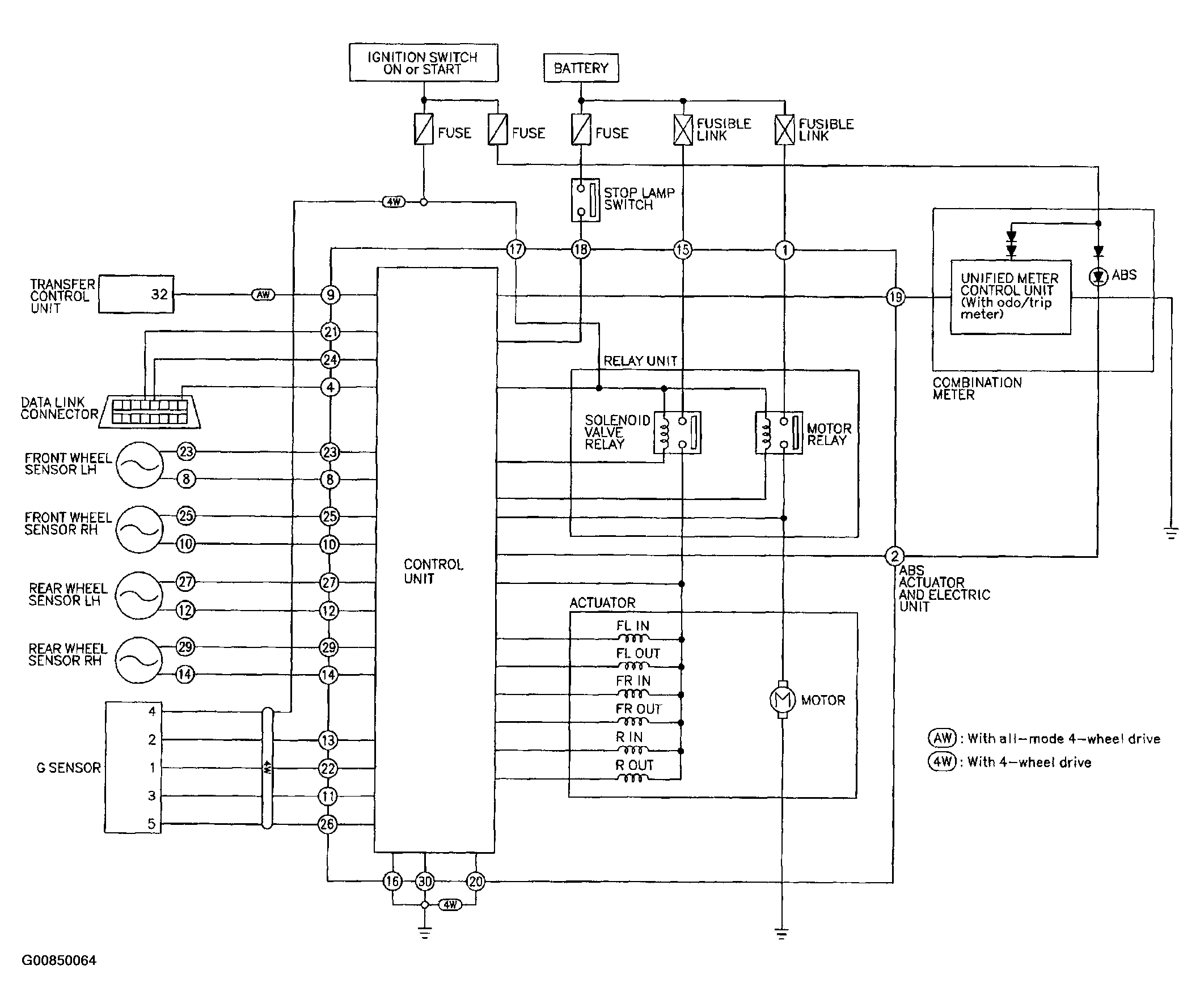

Fig 1: Identifying Schematic

G00850064

Courtesy of NISSAN MOTOR CO., U.S.A.
