Nissan-Datsun
>>
2004
>>
Pathfinder LE, RWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Power Windows
>>
Power Window
>>
Trouble Diagnoses
>>
Notes
Trouble Diagnoses: Notes

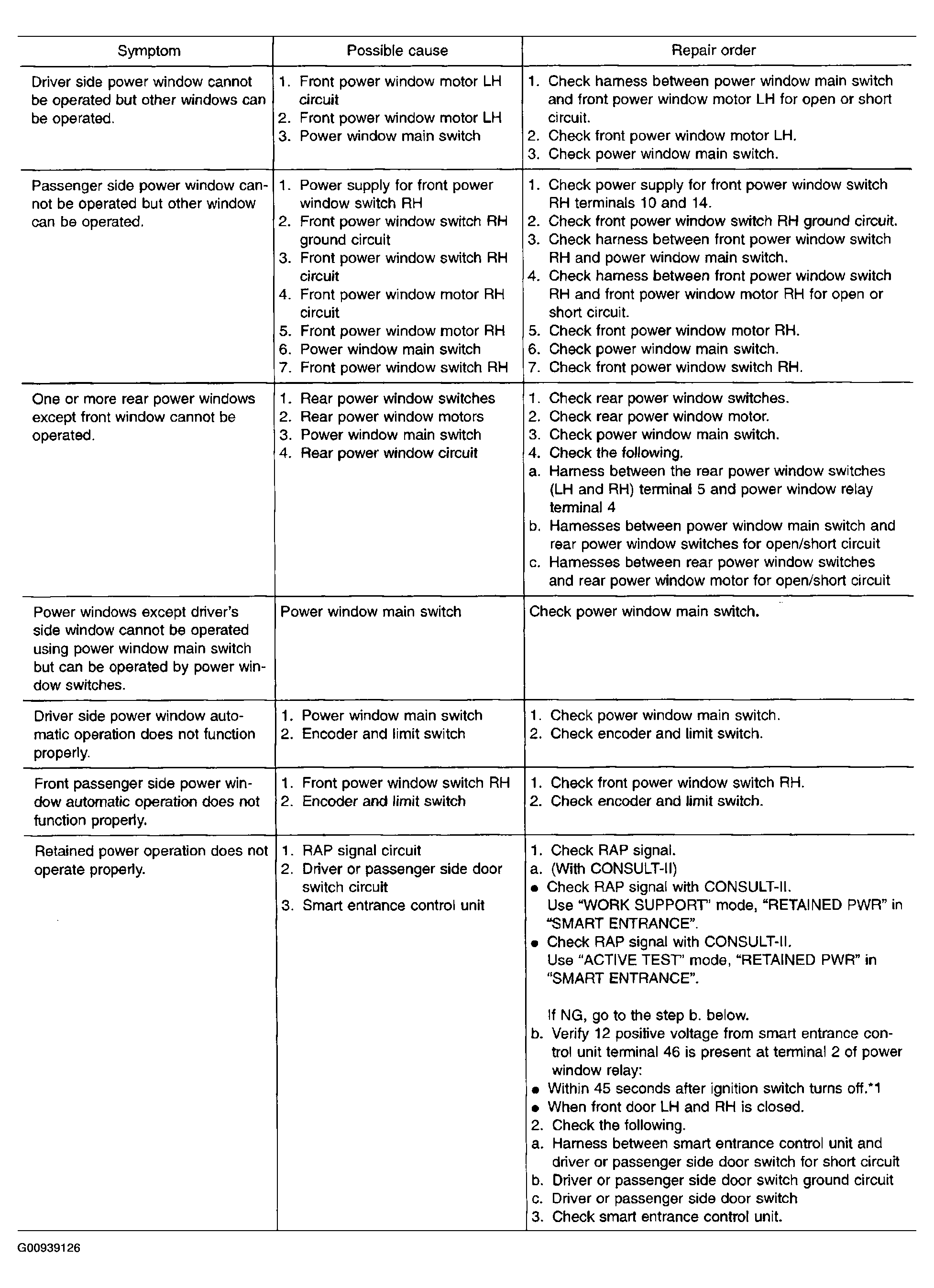

Fig 1: Symptom Chart (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

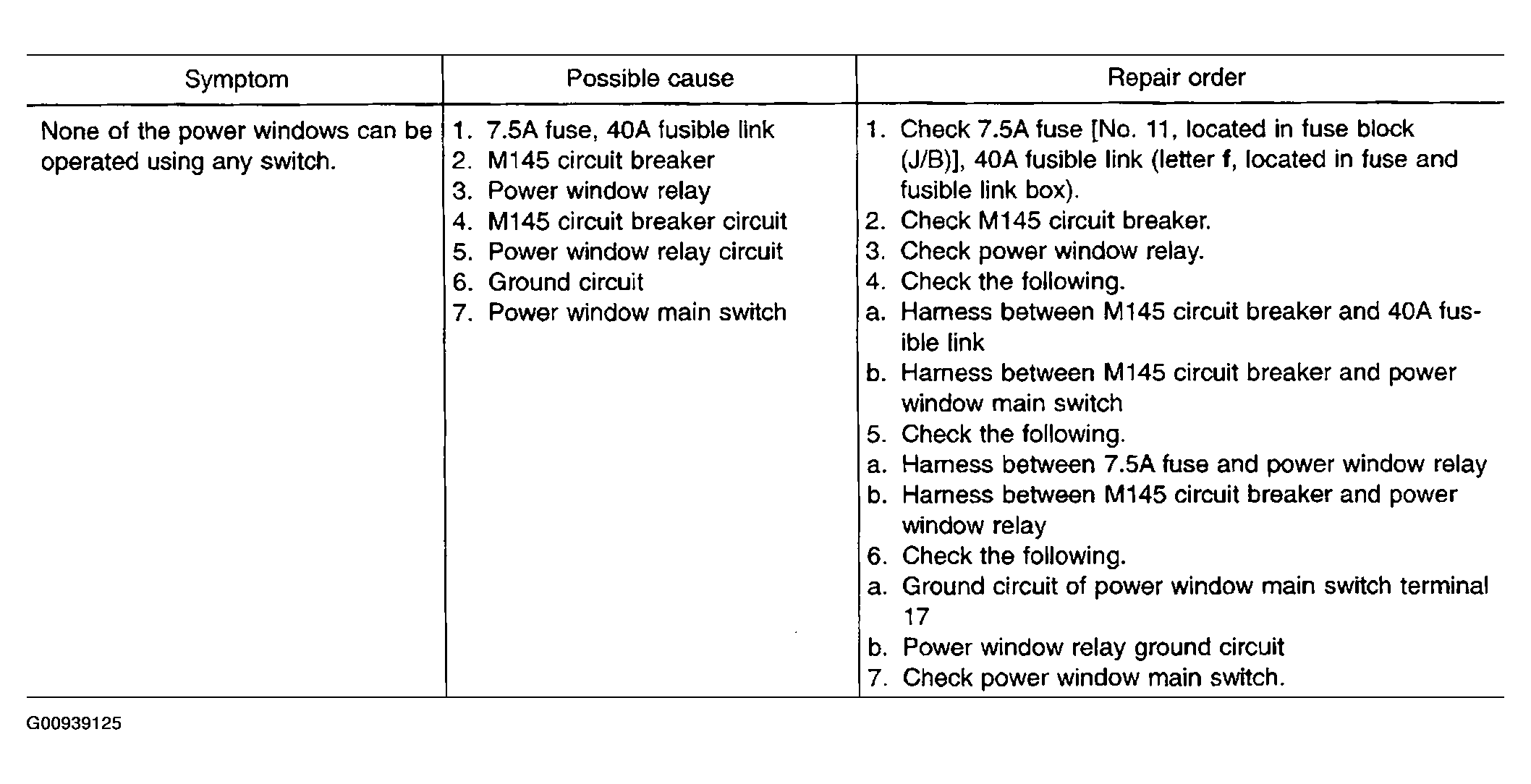

Fig 2: Symptom Chart (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

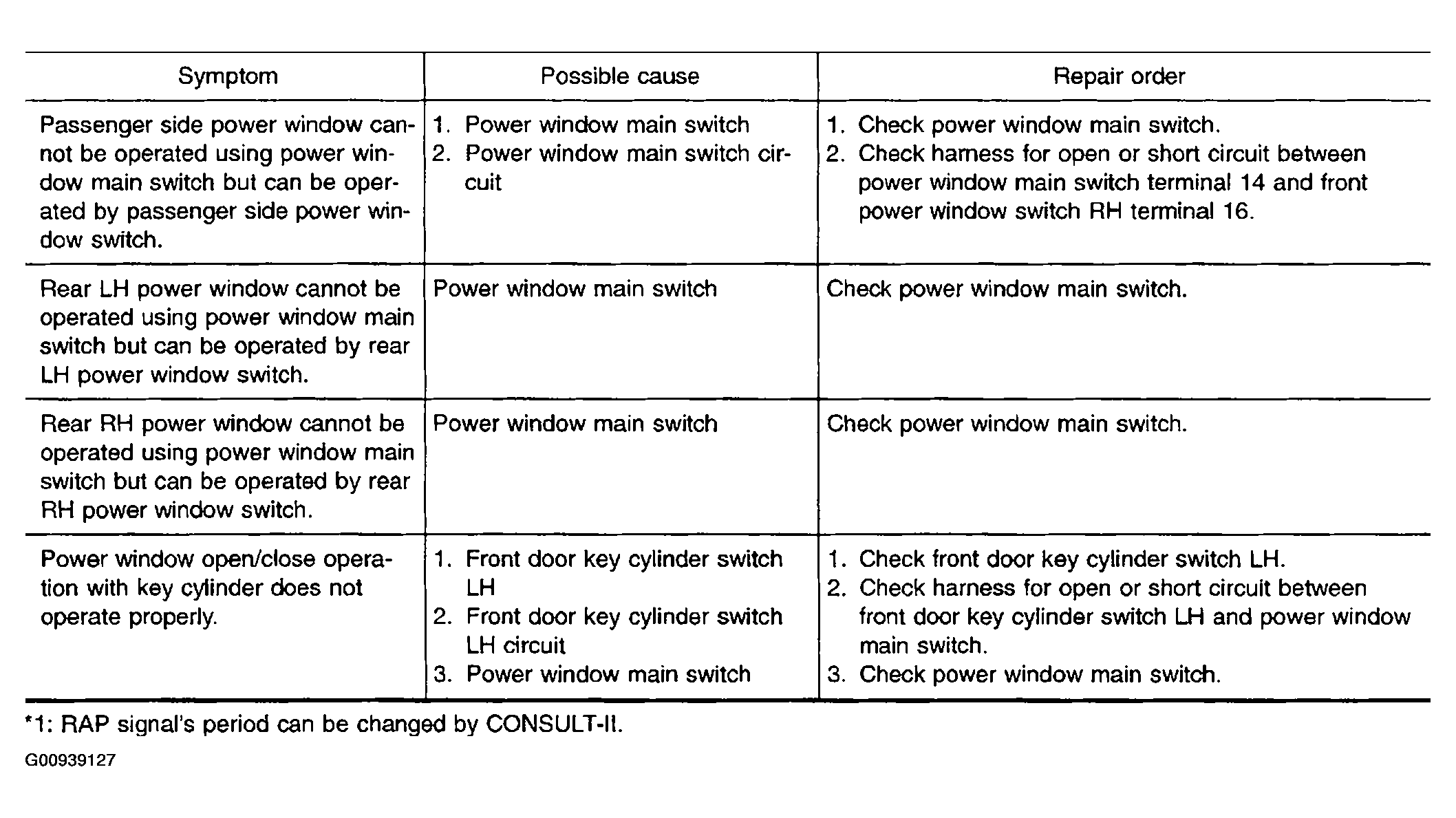

Fig 3: Symptom Chart (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
