Remote Keyless Entry System: Schematic

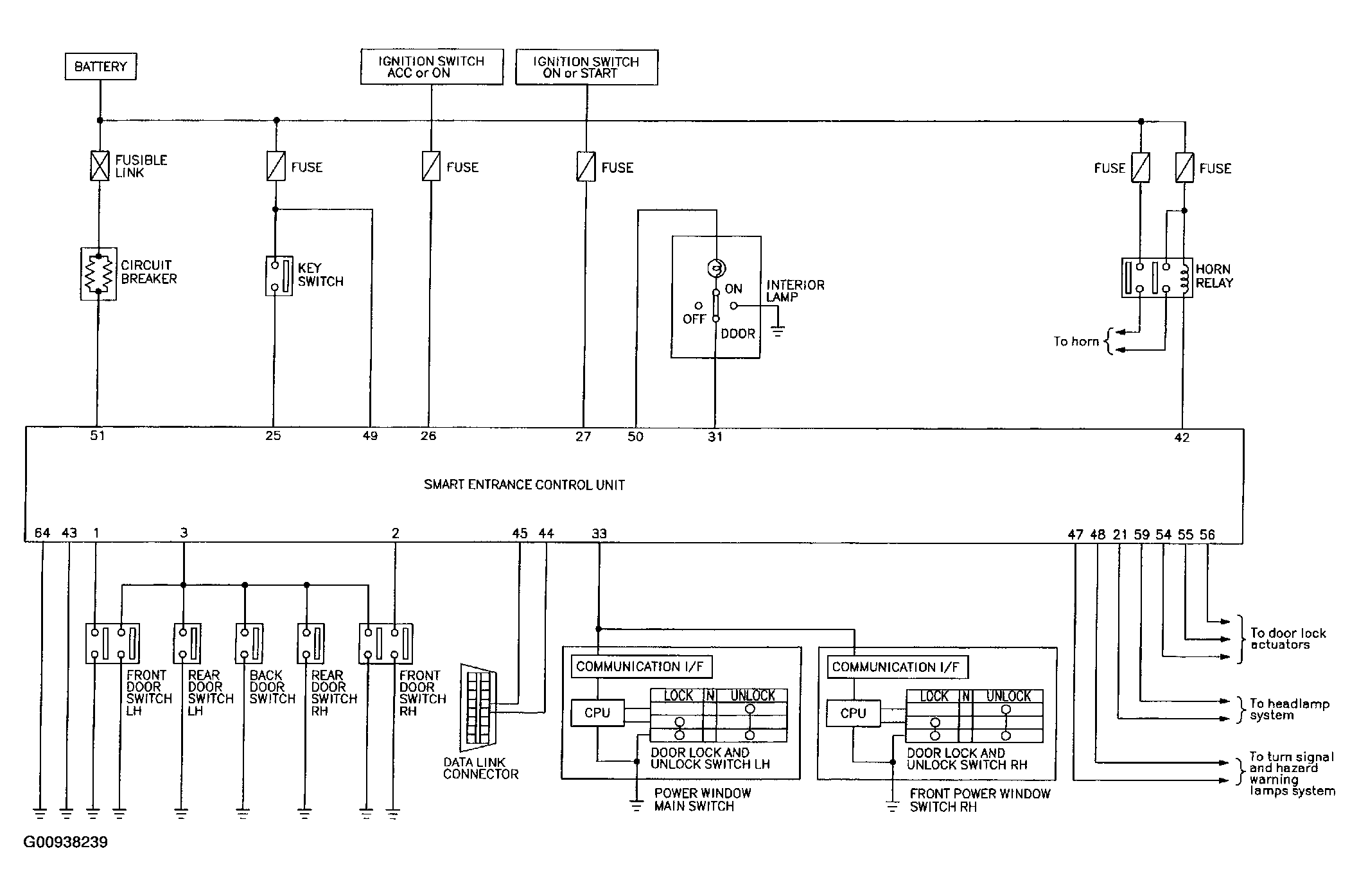

Fig 1: Schematic

G00938239

Courtesy of NISSAN MOTOR CO., U.S.A.
