DTC P1229: Sensor Power Supply: Wiring Diagram

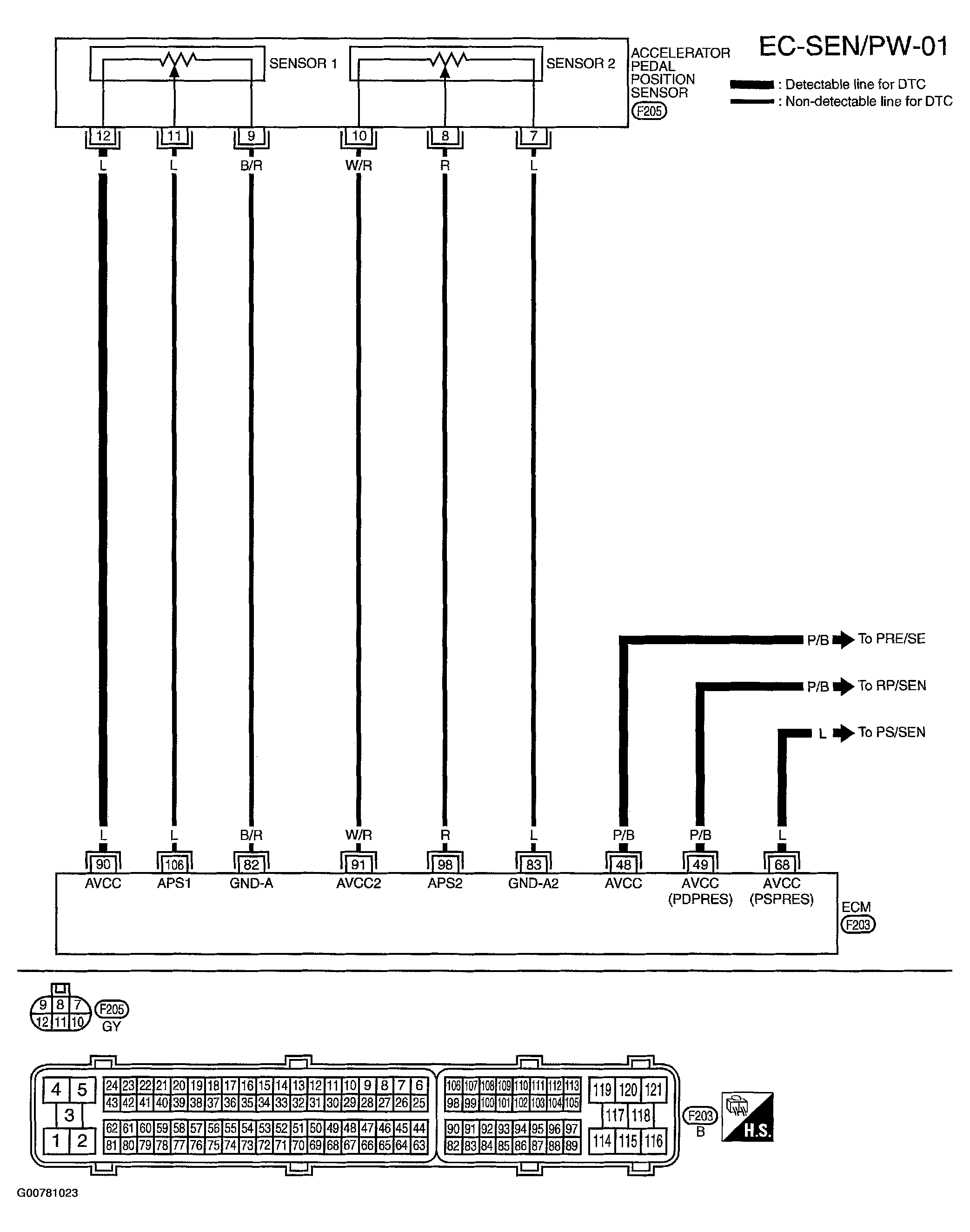

Fig 1: Wiring Diagram Of Accelerator Pedal Position Sensor

G00781023

Courtesy of NISSAN MOTOR CO., U.S.A.
