Crankshaft Position Sensor (Pos)

  1. Loosen the fixing bolt of the sensor.
  2. Disconnect crankshaft position sensor (POS) harness connector.
  3. Remove the sensor.
  4. Visually check the sensor for chipping.

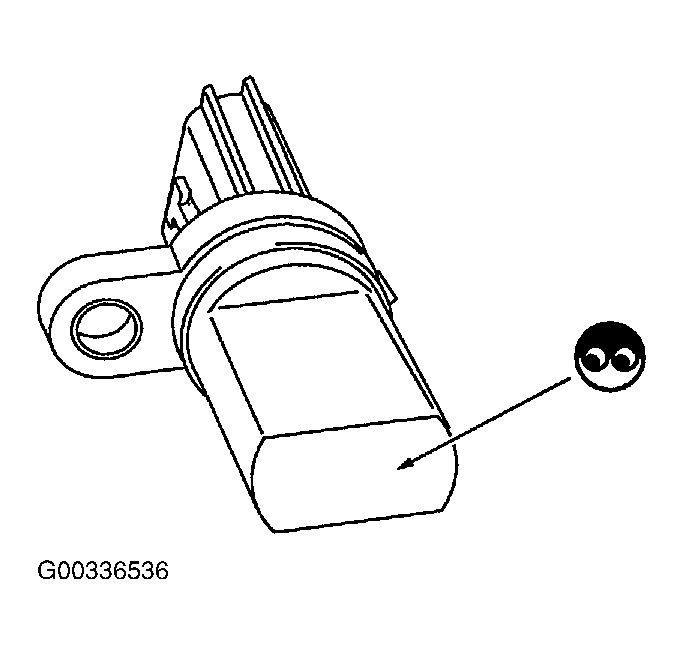

    Fig 1: Identifying Crankshaft Position Sensor
    G00336536Courtesy of NISSAN MOTOR CO., U.S.A.

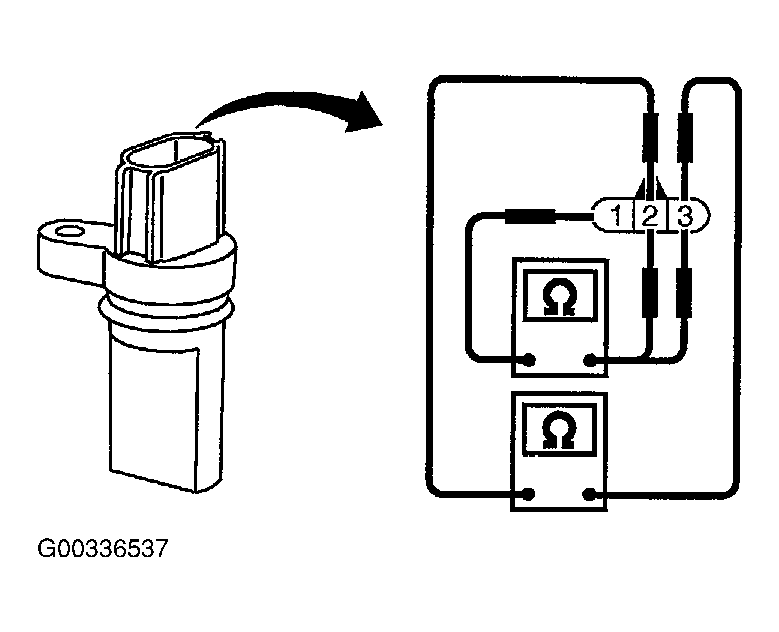

    Fig 2: Checking Resistance
    G00336537Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Check resistance as shown in the figure.

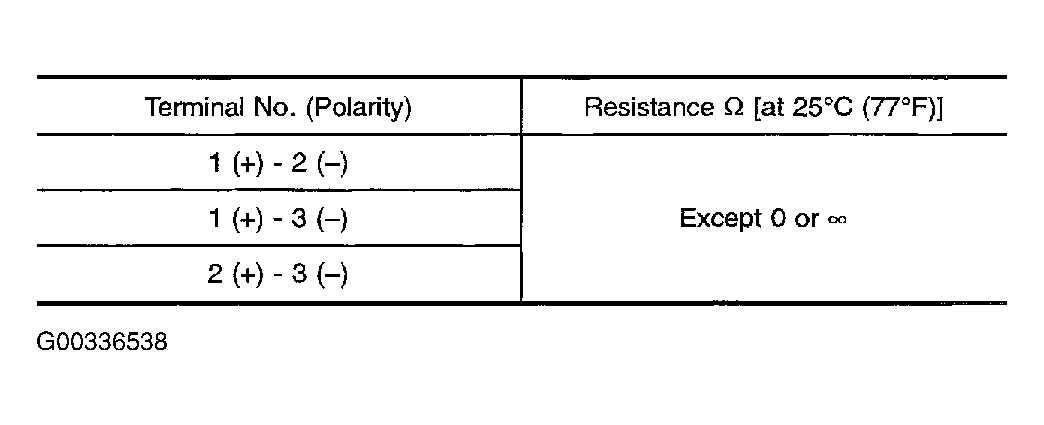

Fig 3: Terminal Resistance Chart
G00336538Courtesy of NISSAN MOTOR CO., U.S.A.
