KEYFOB Id Set Up With Consult-II

NOTE: If a keyfob is lost, the ID code of the lost keyfob must be erased to prevent unauthorized use. When the ID code of a lost keyfob is not known, all keyfob ID codes should be erased. After all ID codes are erased, the ID codes of all remaining and/or new keyfob must be re-registered.

Turn ignition switch "OFF".
Connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector.

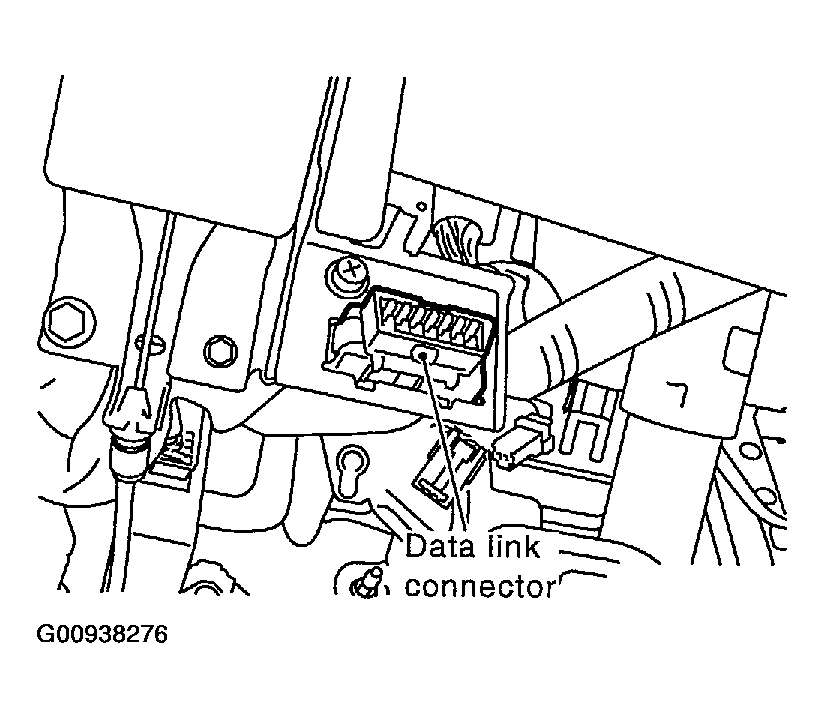

Fig 1: Connecting "CONSULT-II" And "CONSULT-II CONVERTER" To Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON".
Touch "START (NISSAN BASED VHCL)".

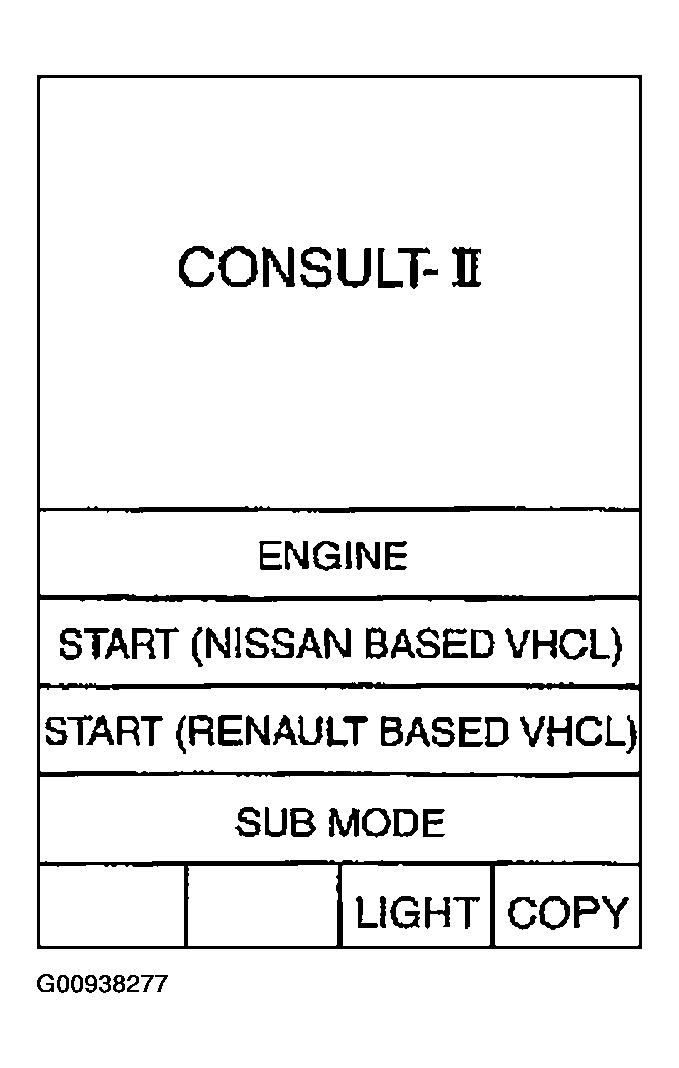

Fig 2: Displaying Touch "START (NISSAN BASED VHCL)"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "SMART ENTRANCE".
If "SMART ENTRANCE" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

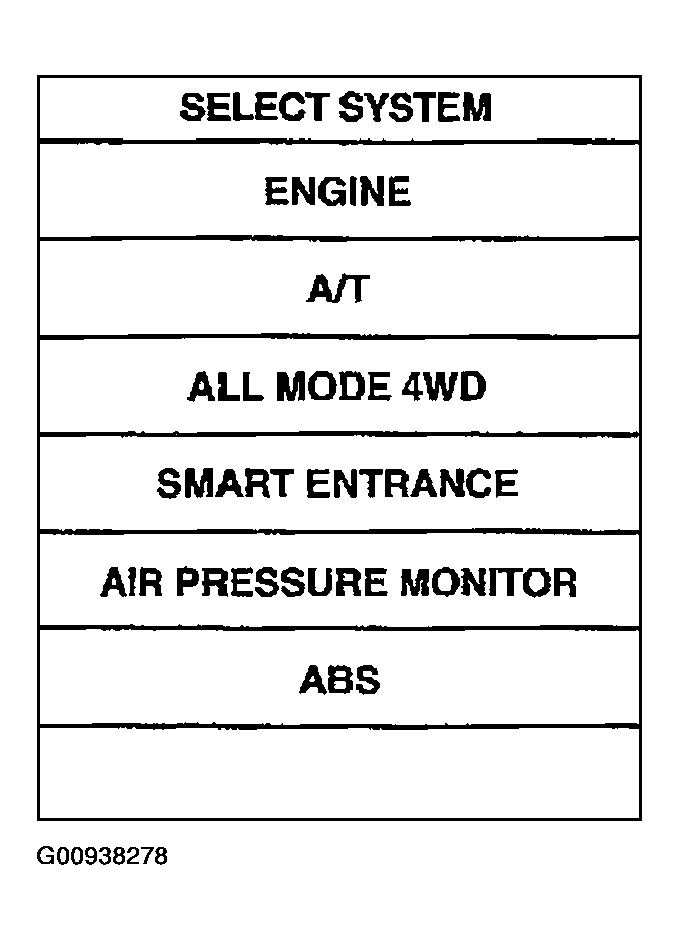

Fig 3: Displaying Touch "SMART ENTRANCE"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "MULTI REMOTE ENT".

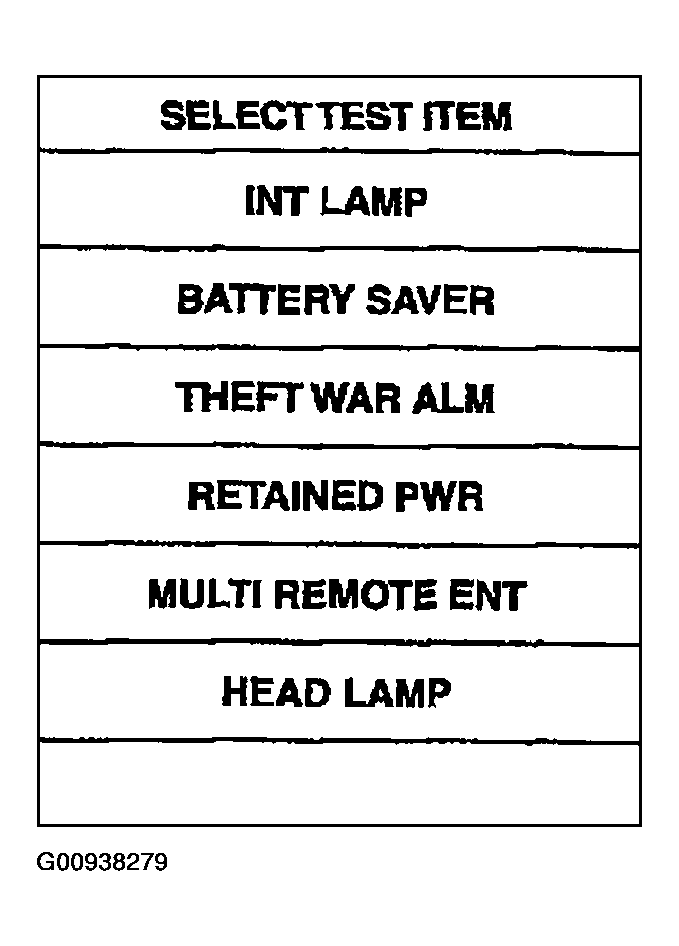

Fig 4: Displaying Touch "MULTI REMOTE ENT"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "WORK SUPPORT".

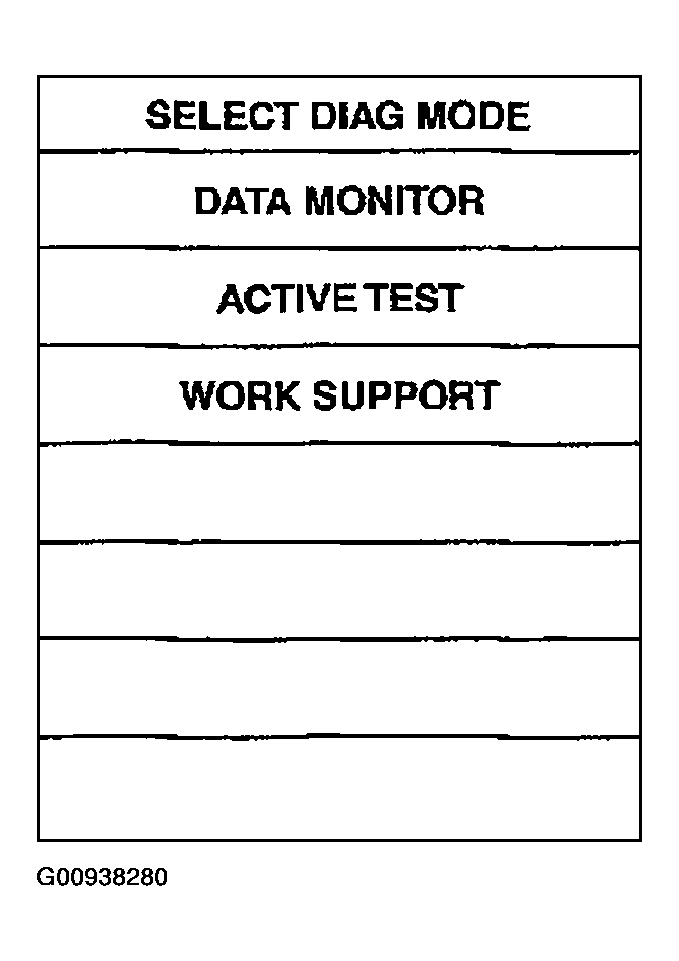

Fig 5: Displaying Touch "WORK SUPPORT"
Courtesy of NISSAN MOTOR CO., U.S.A.
The items are shown on the figure at left can be set up.

"REMO CONT ID CONFIR"
Use this mode to confirm if a keyfob ID code is registered or not.
"REMO CONT ID REGIST"
Use this mode to register a keyfob ID code.

NOTE: Register the ID code when keyfob or smart entrance control unit is replaced, or when additional keyfob is required.

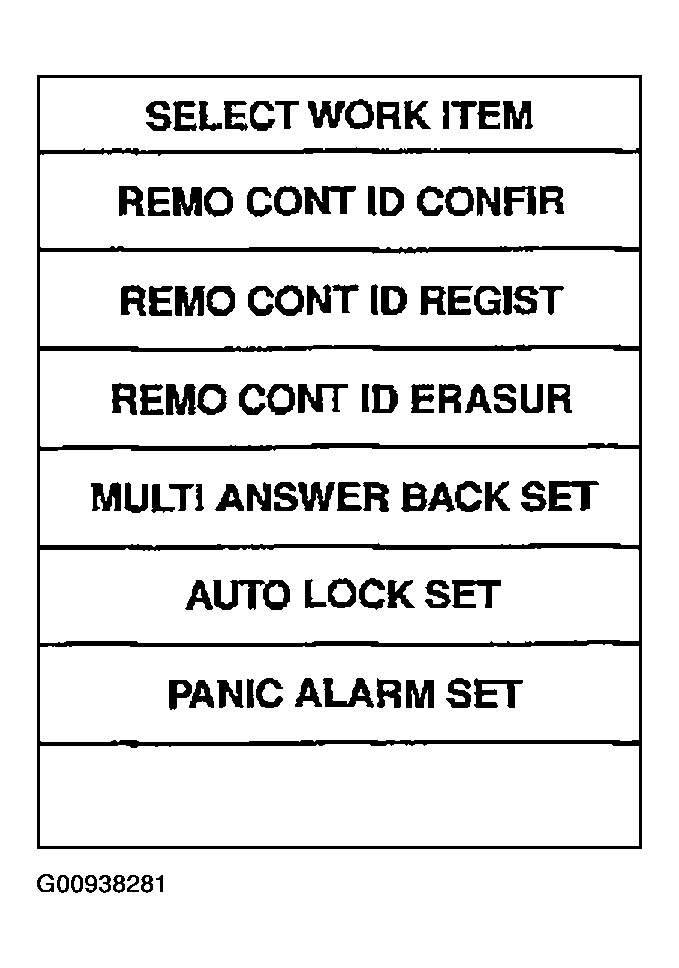

Fig 6: Displaying "REMO CONT ID REGIST"

Courtesy of NISSAN MOTOR CO., U.S.A.

"REMO CONT ID ERASUR"
Use this mode to erase a keyfob ID code.

Refer to the Work Support in "CONSULT-II Application Items" for the following items.
"MULTI ANSWER BACK SET"
"AUTO LOCK SET"
"PANIC ALARM SET"
"TRUNK OPENER"
"PW DOWN SET"

NOTE: Even though TRUNK OPENER is actually displayed on the CONSULT-II screen, it is not equipped, therefore, they cannot be activated.
