Removal and Installation: Components

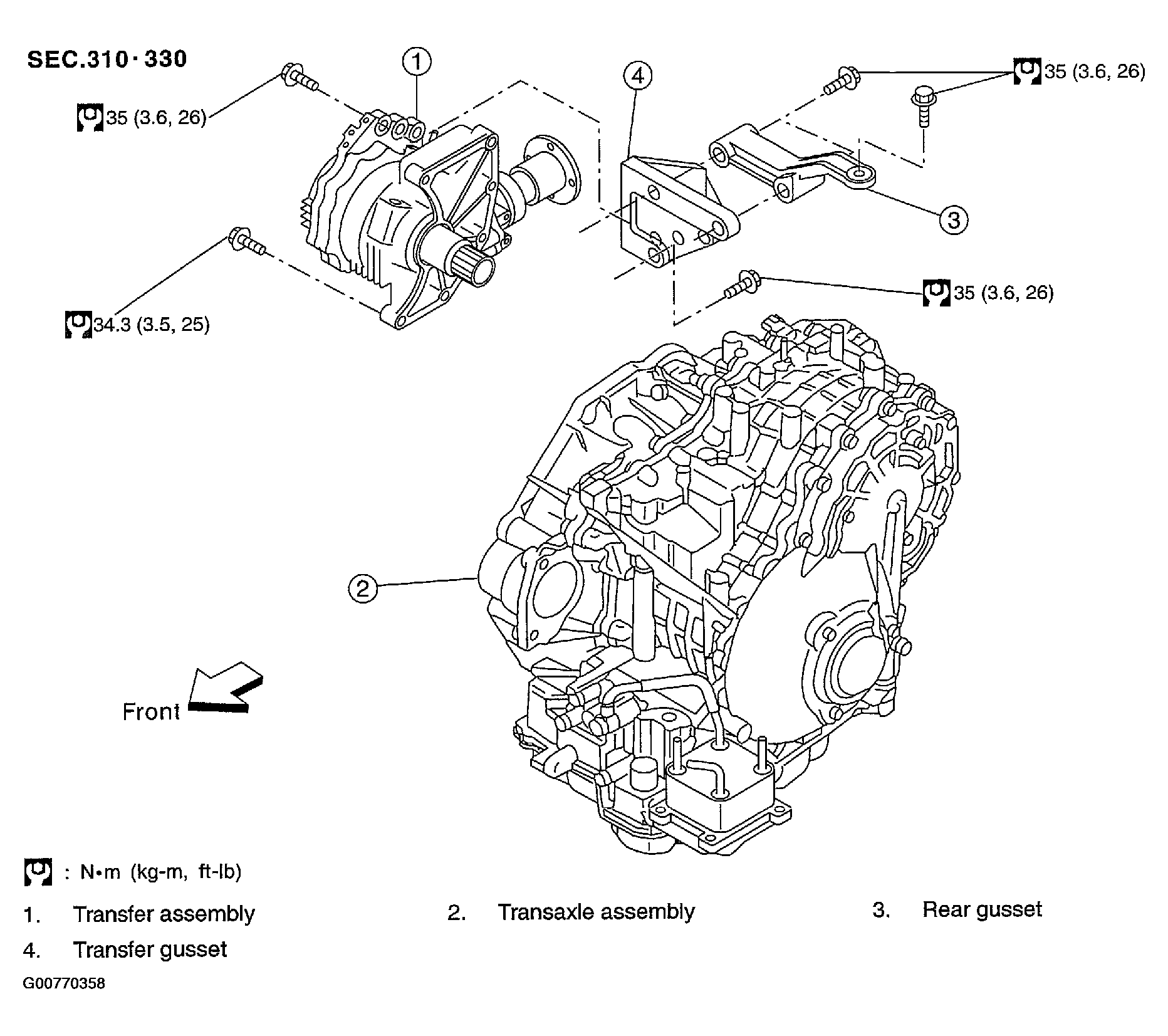

Fig 1: Removing/Installing Transfer Assembly

G00770358

Courtesy of NISSAN MOTOR CO., U.S.A.
