Disassembly and Assembly: Components

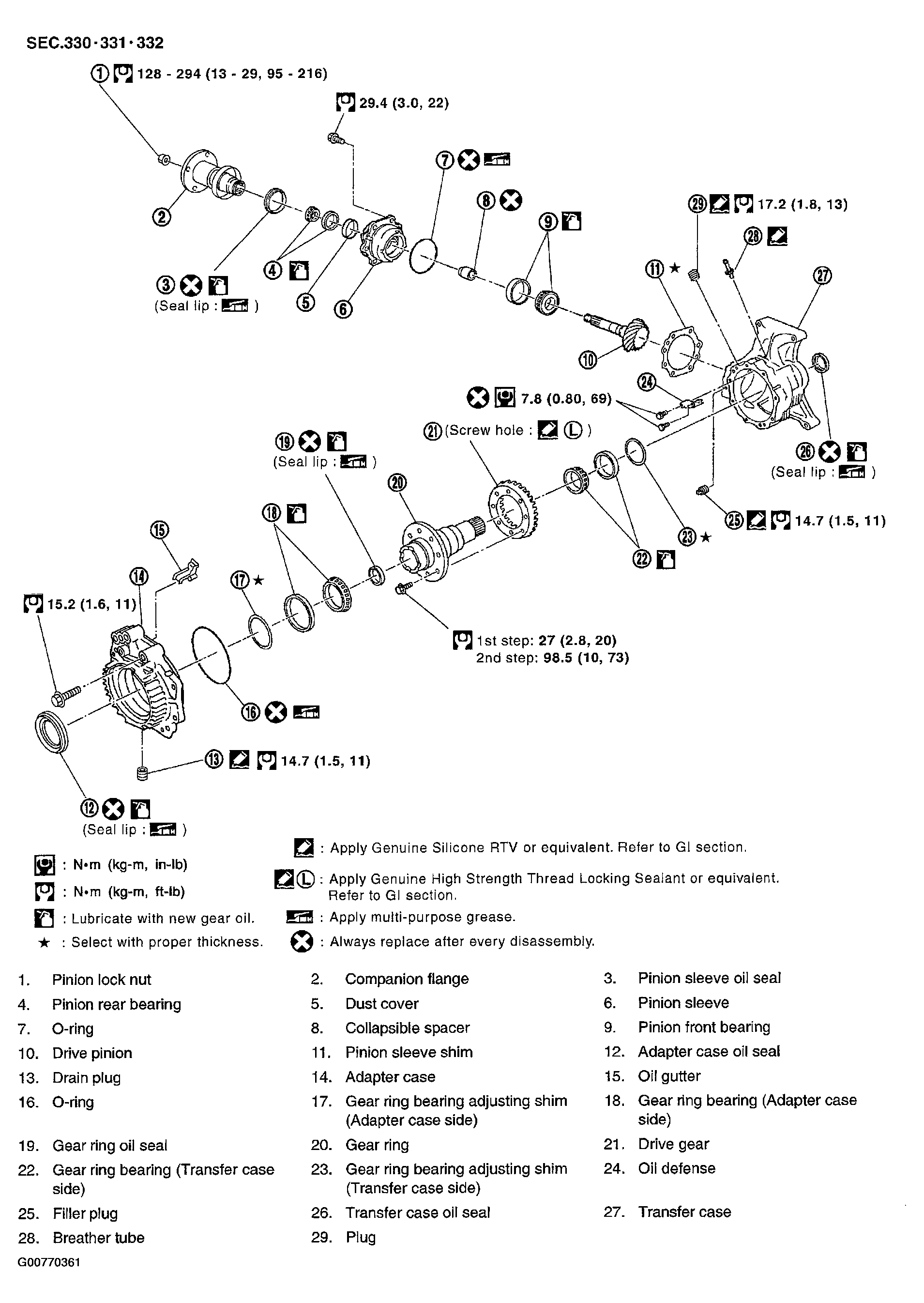

Fig 1: Exploded View Of Transfer Assembly

G00770361

Courtesy of NISSAN MOTOR CO., U.S.A.
