Nissan-Datsun
>>
2004
>>
Murano SL, AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System
>>
Trouble Diagnosis
>>
Circuit Diagram
Circuit Diagram

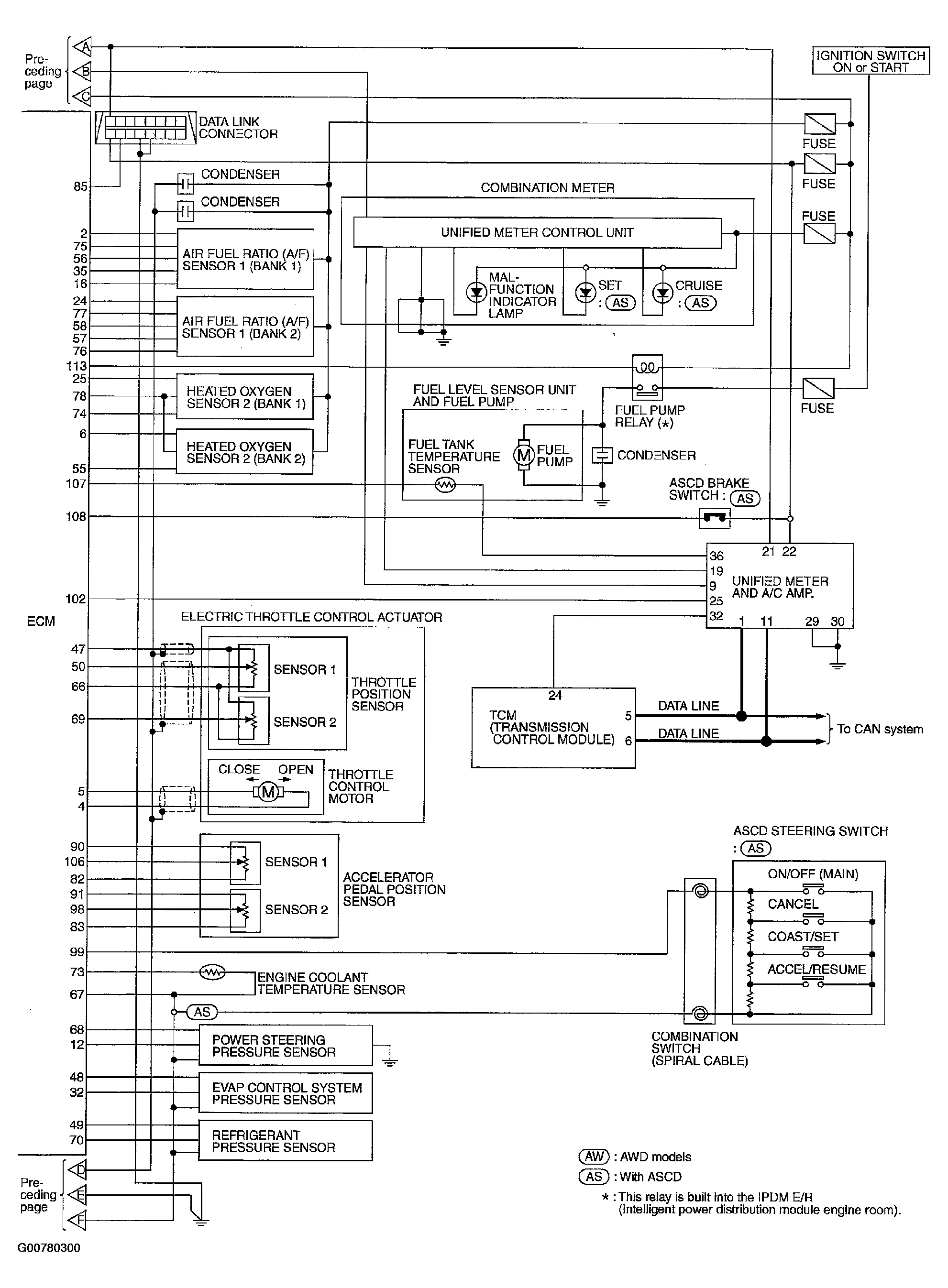

Fig 1: Circuit Diagram (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

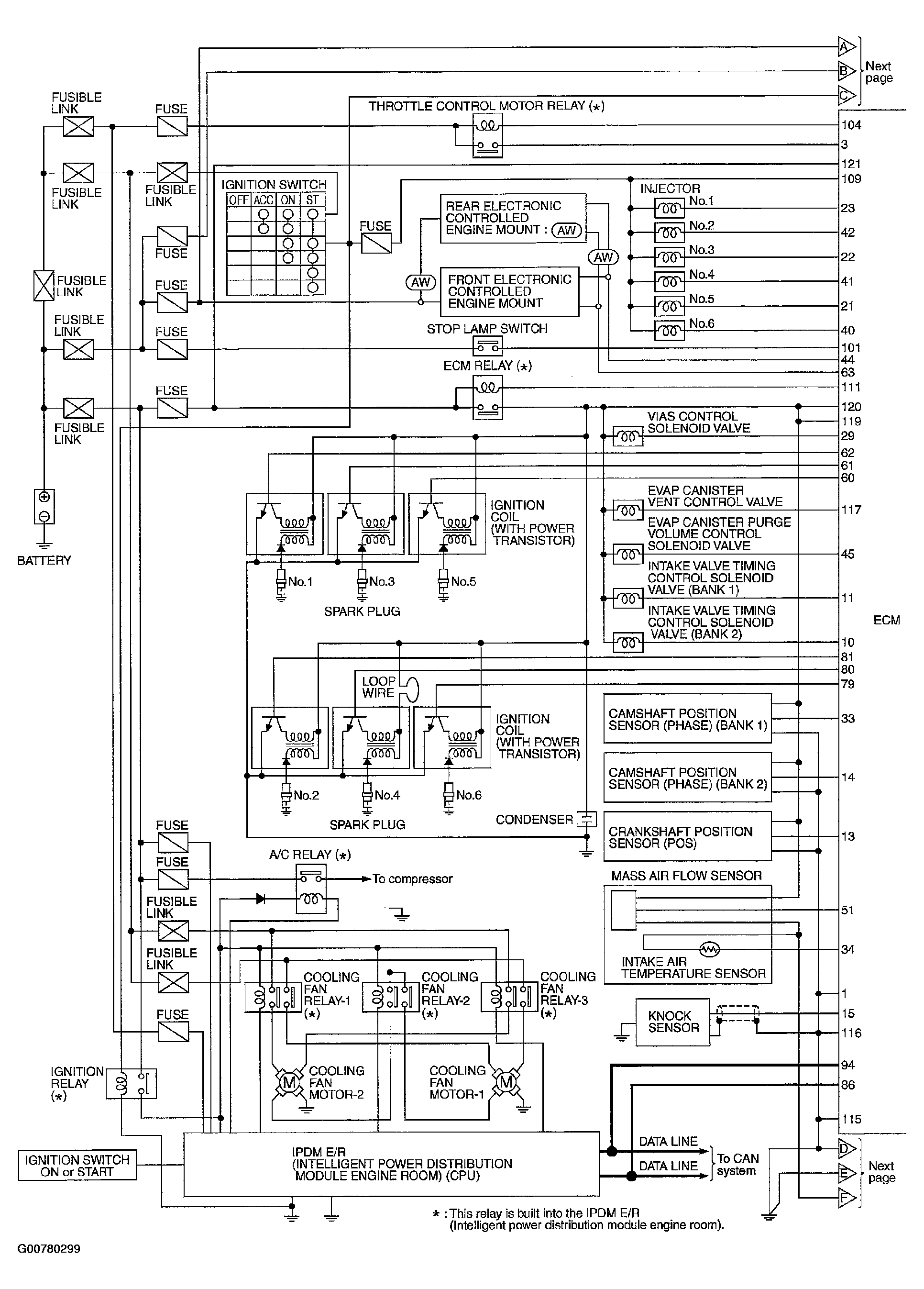

Fig 2: Circuit Diagram (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
