DTC P0117, P0118: ECT Sensor: Wiring Diagram

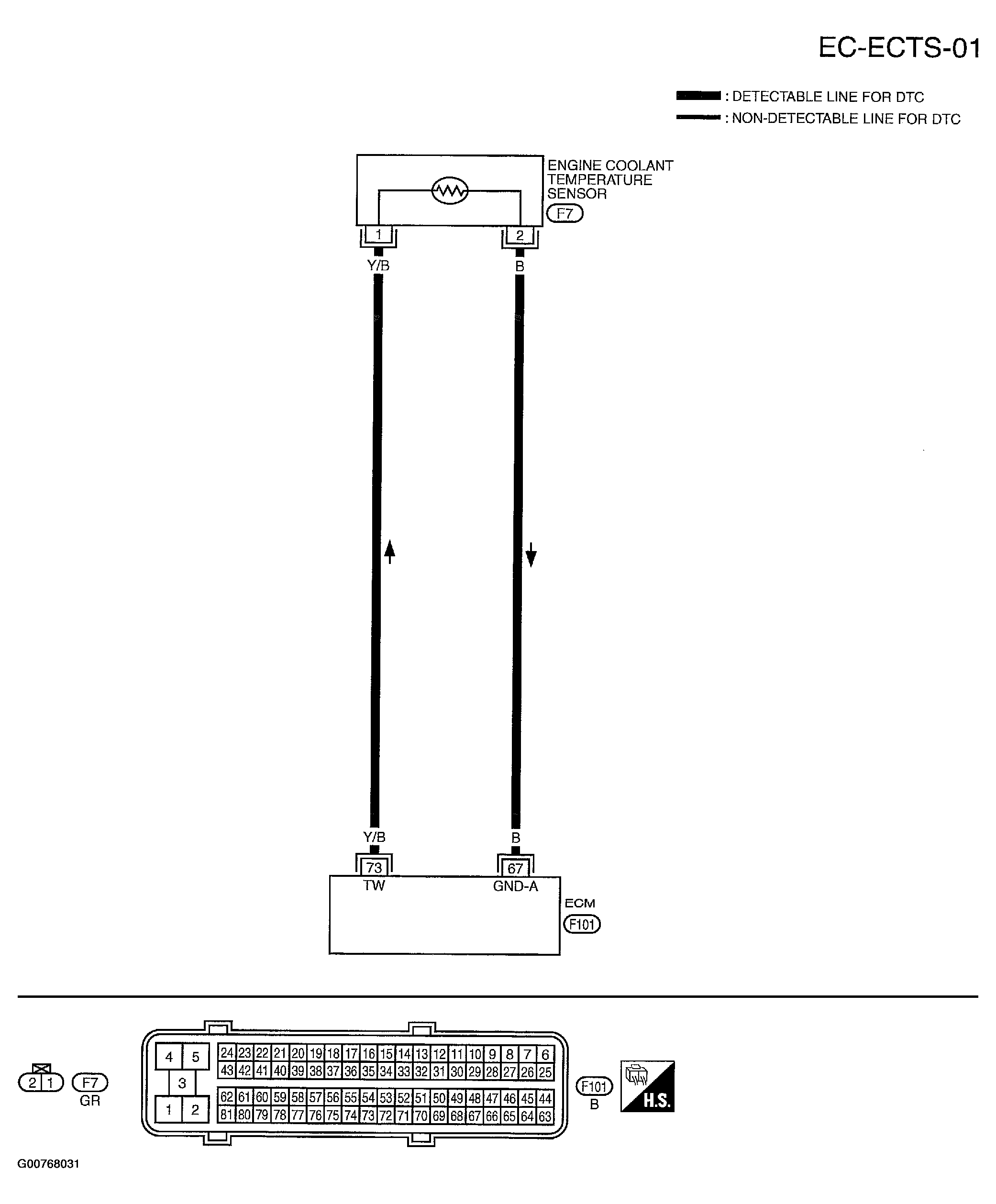

Fig 1: Wiring Diagram - EC-ECTS-01

G00768031

Courtesy of NISSAN MOTOR CO., U.S.A.
