LEMON Manuals
: Even more car manuals for everyone
Home
>>
Nissan-Datsun
>>
2004
>>
Murano SL, AWD
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Engine Lubrication System
>>
Lubrication System
>>
System Drawing
System Drawing

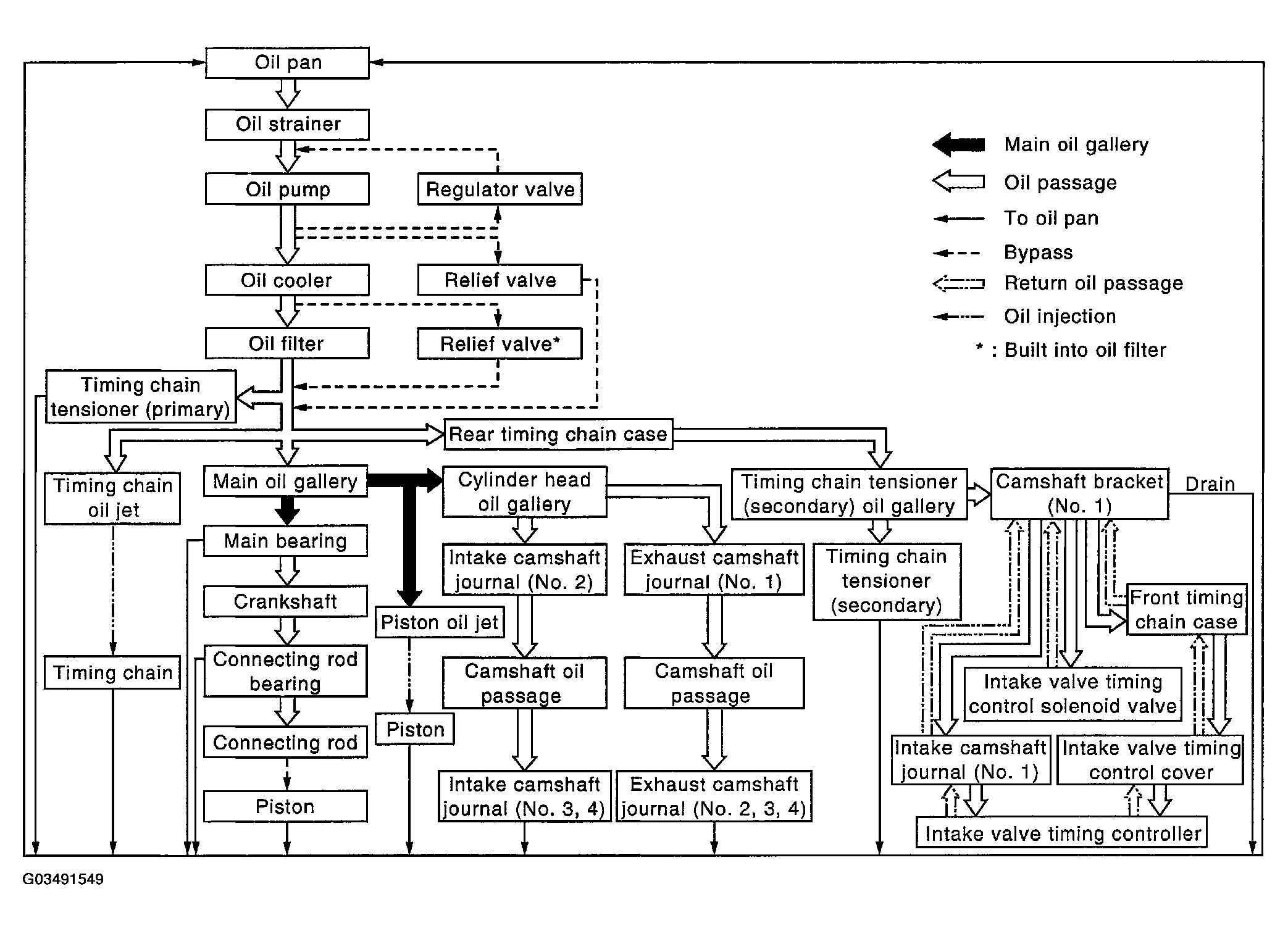

Fig 1: System Drawing
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
