CAUTION:
The display shows control unit calculation data, so a normal value might be displayed even in the event the output circuit (harness) is open or short - circuited.

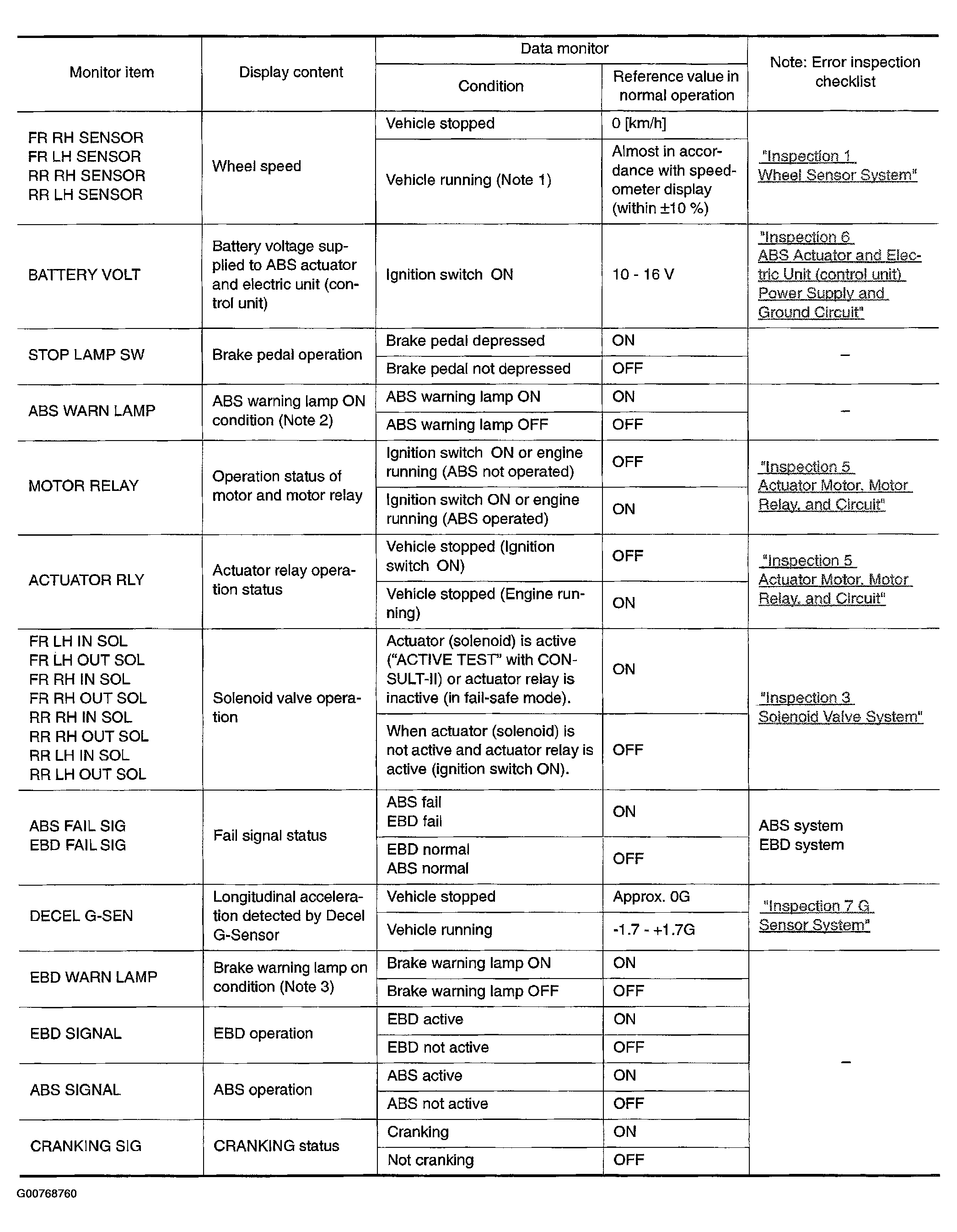

Fig 1: Control Unit Input/Output Signal Standard Table (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

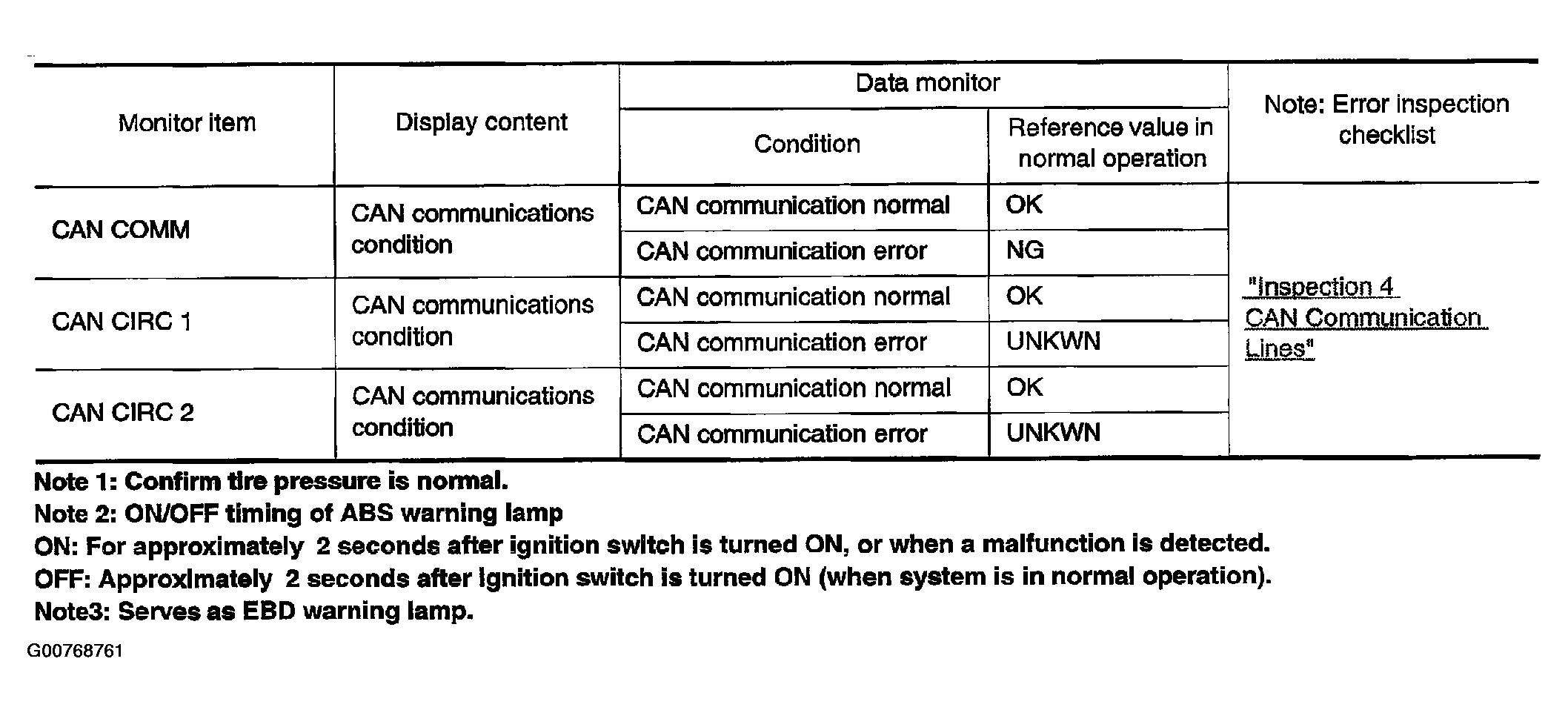

Fig 2: Control Unit Input/Output Signal Standard Table (2 Of 2)
