Consult-II Function Application Table (Main Items)

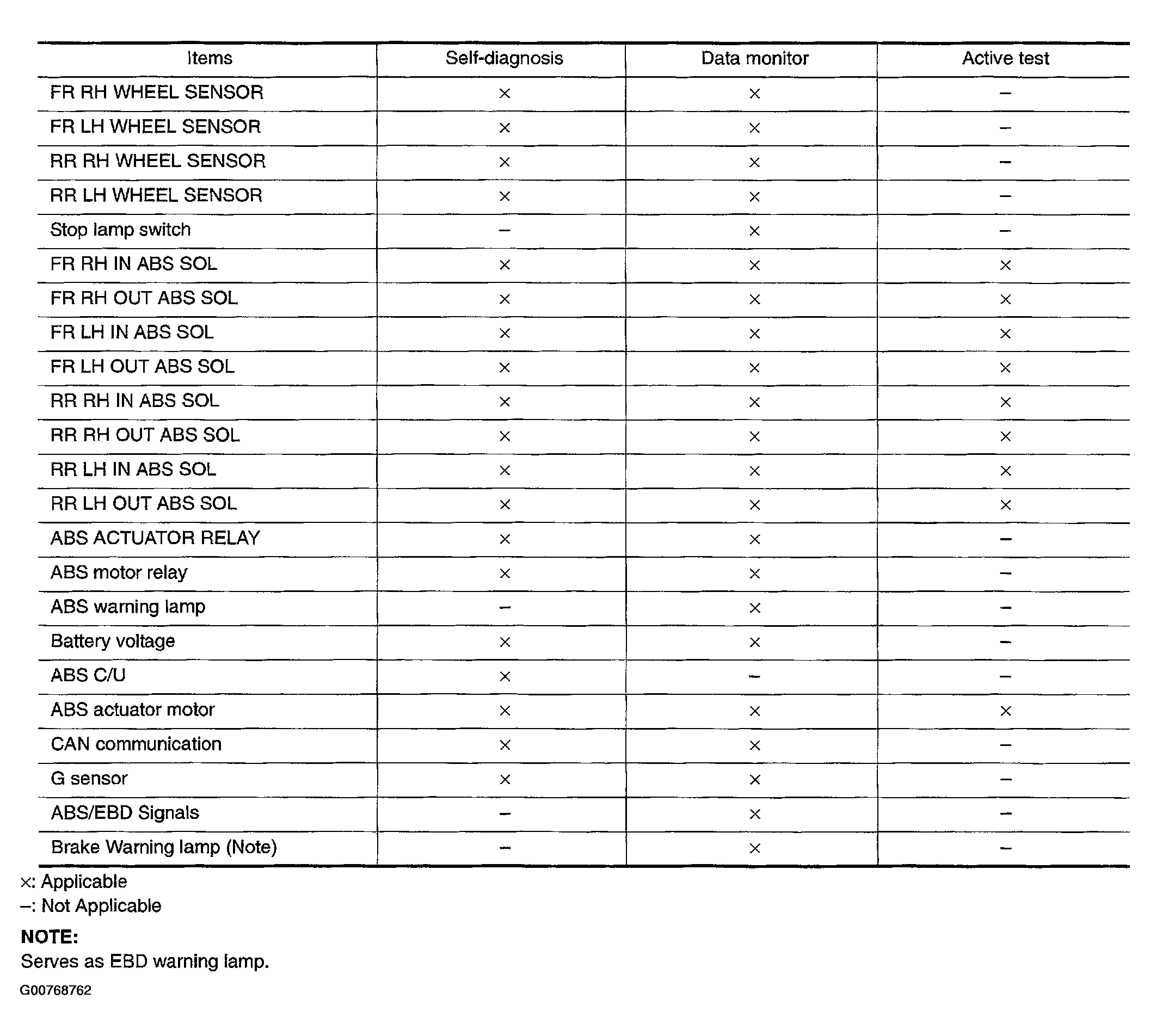

Fig 1: CONSULT-II Function Application Table (Main Items)

G00768762

Courtesy of NISSAN MOTOR CO., U.S.A.
