Terminal and Reference Value for BCM

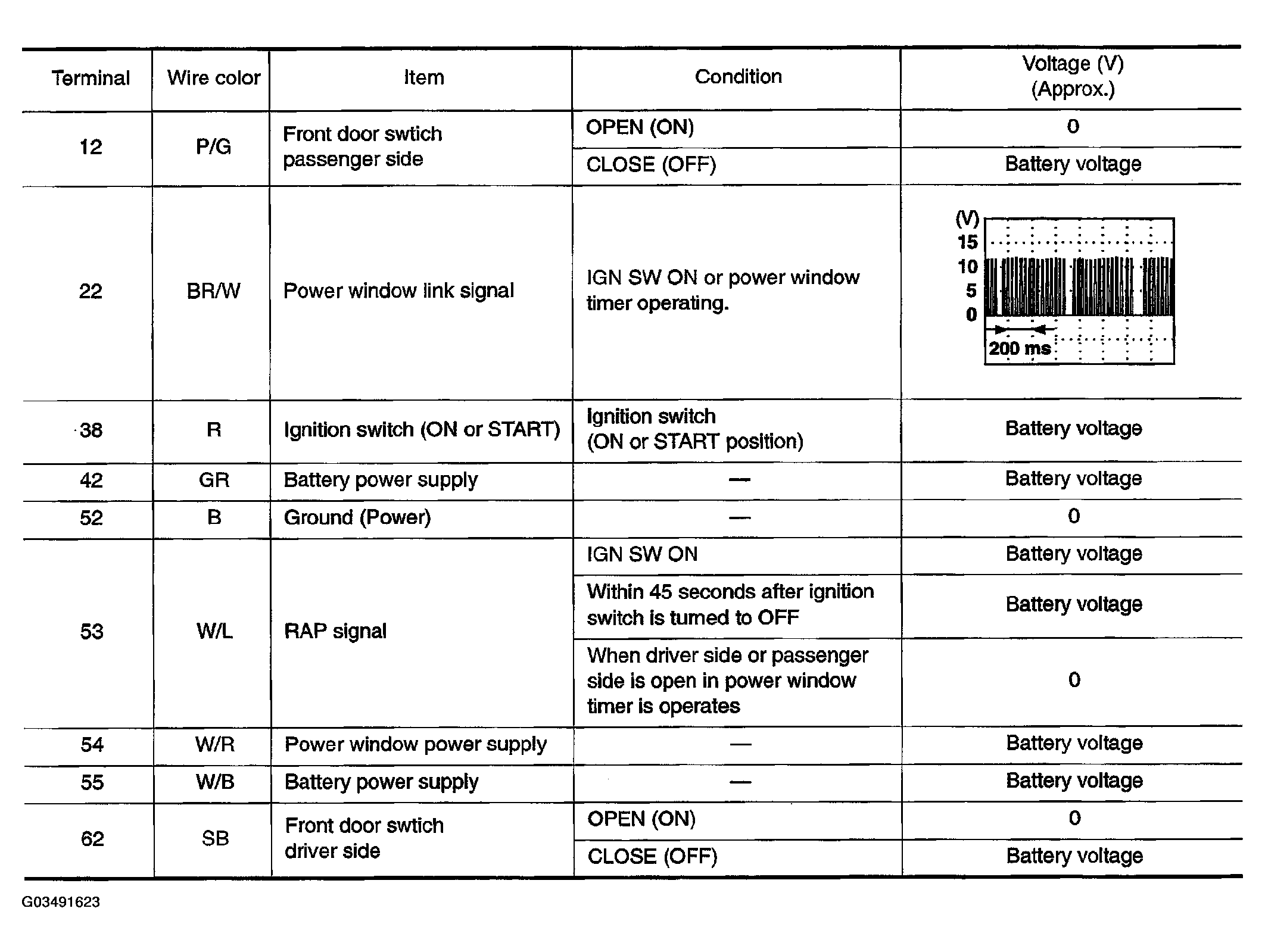

Fig 1: Terminal And Reference Value For BCM Chart

G03491623

Courtesy of NISSAN MOTOR CO., U.S.A.
