Control Device: Removal

  1. Slide the selector knob cover downwards with fingers to reveal the selector knob clip.
  2. Remove selector knob clip outward as shown, then lift the selector knob up to remove.

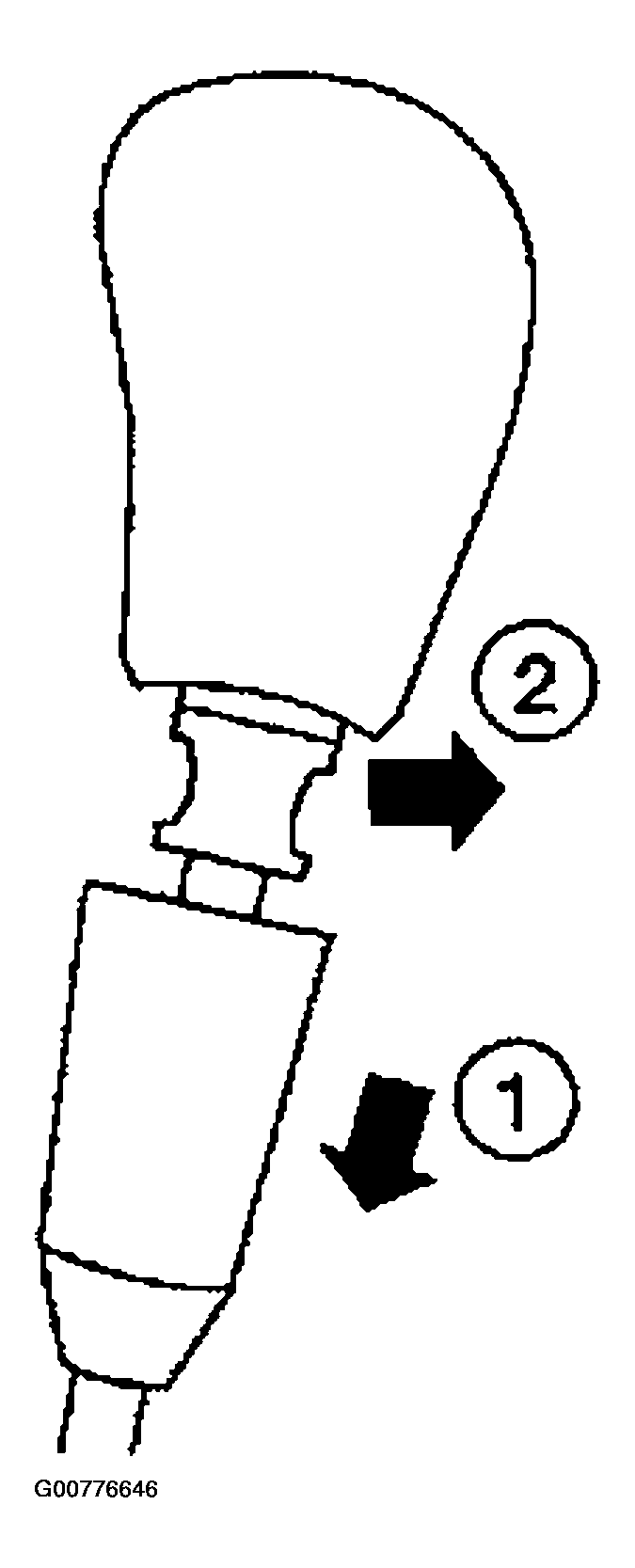

Fig 1: Removing selector knob clip
G00776646Courtesy of NISSAN MOTOR CO., U.S.A.
