Nissan-Datsun
>>
2004
>>
Maxima SL, RE4F04B
>>
Repair and Diagnosis
>>
Transmission
>>
Transmission Control Systems
>>
Automatic Transaxle - Re4F04B
>>
Shift Control System
>>
Control Cable
Control Cable

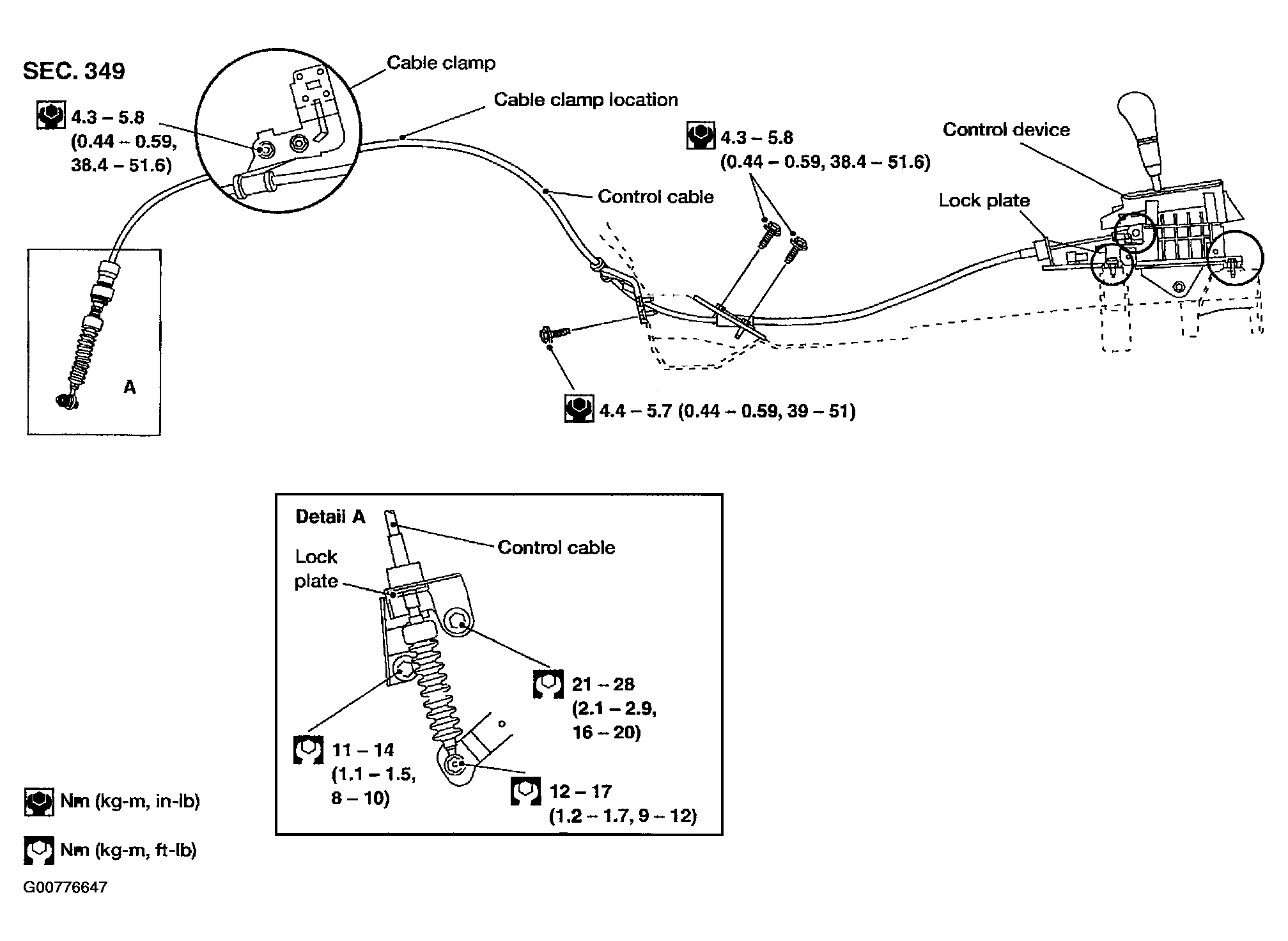

Fig 1: Control Cable
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
