Control Valve Lower Body: Components

Apply ATF to all components before installation.

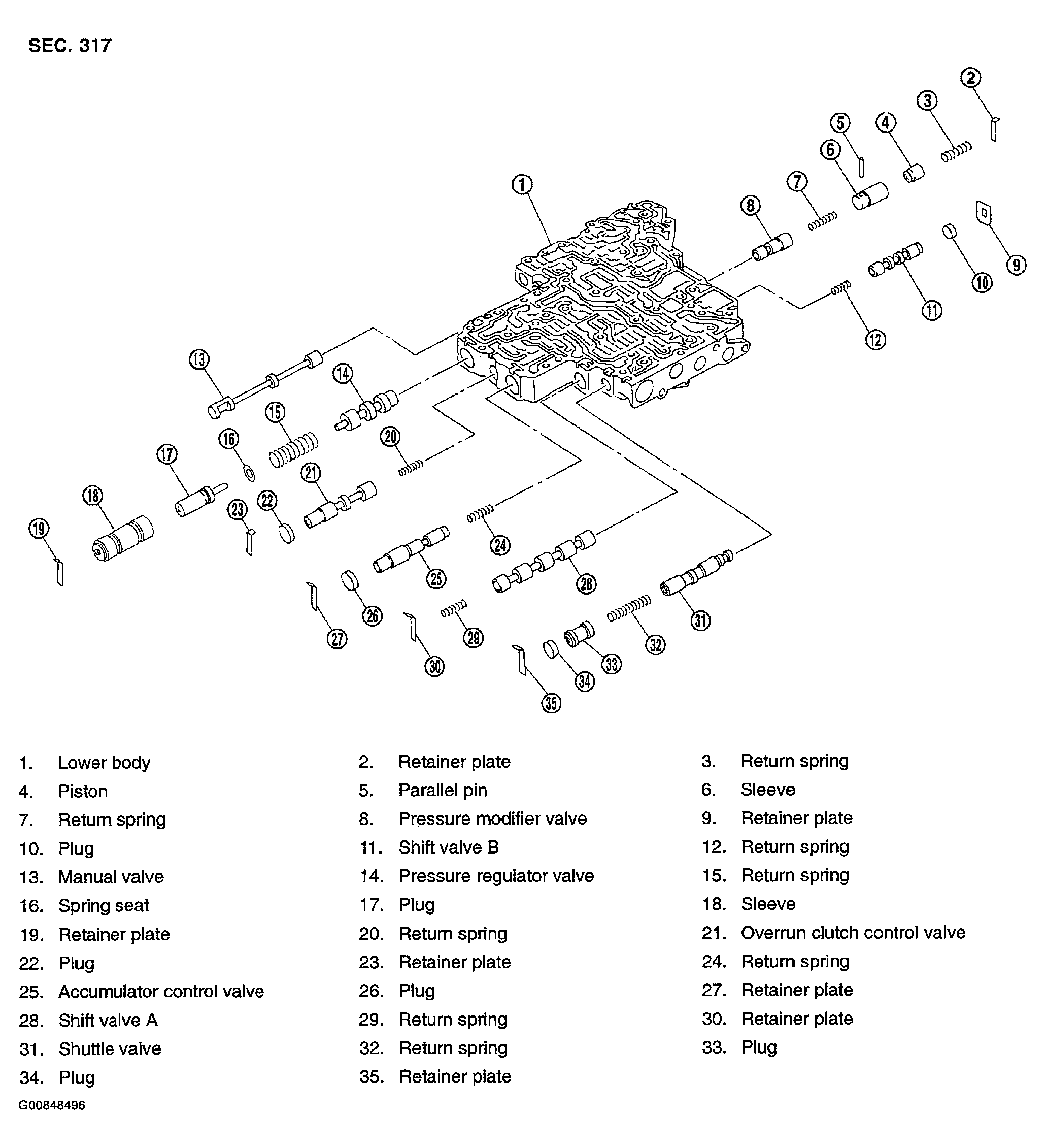

Fig 1: Control Valve Lower Body Components

G00848496

Courtesy of NISSAN MOTOR CO., U.S.A.
