Control Valve Assembly: Components

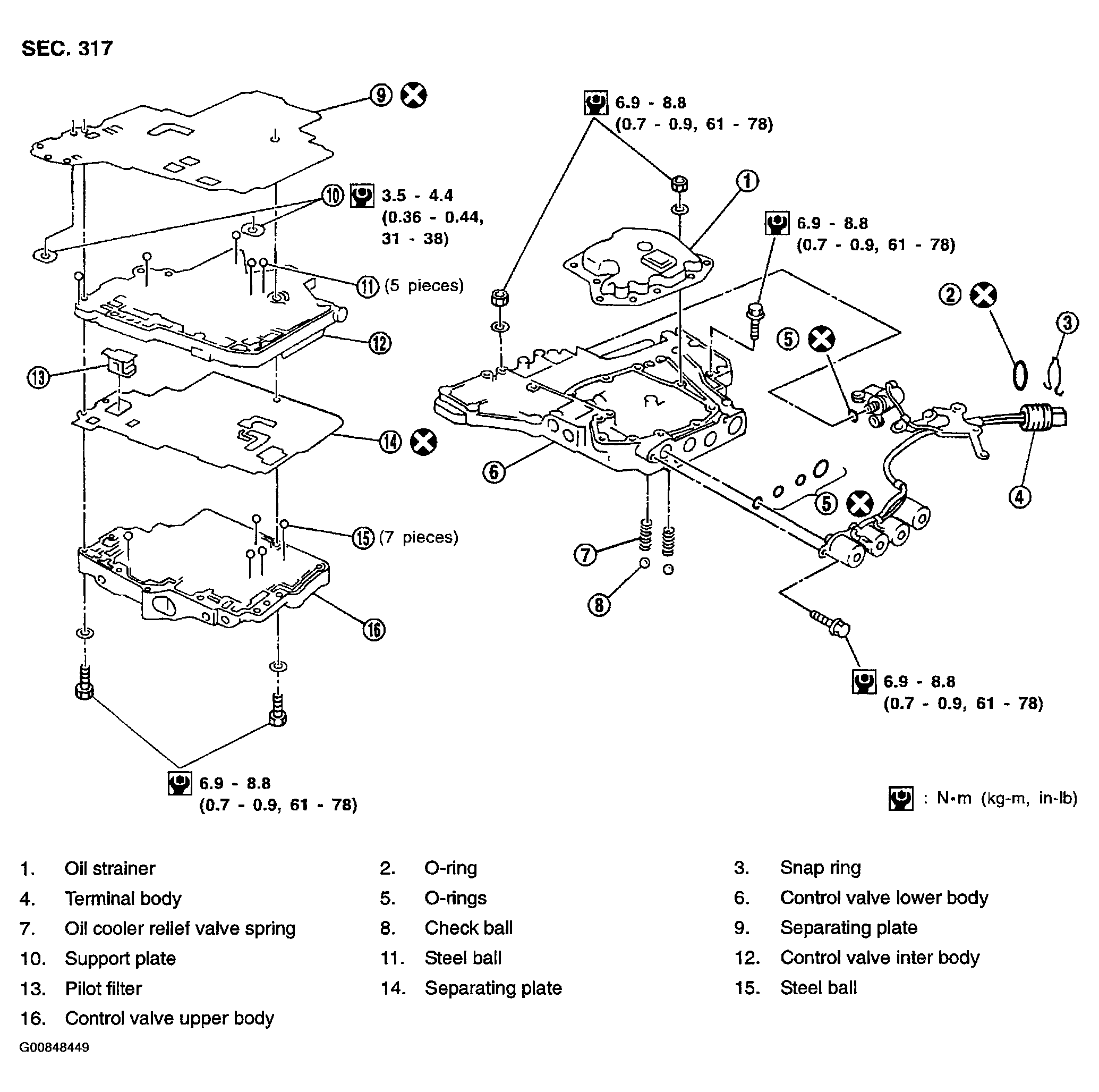

Fig 1: Control Valve Assembly Components
G00848449Courtesy of NISSAN MOTOR CO., U.S.A.
