Automatic Transaxle - Re4F04B
>>
Overall System
>>
Cross-Sectional View
Cross-Sectional View

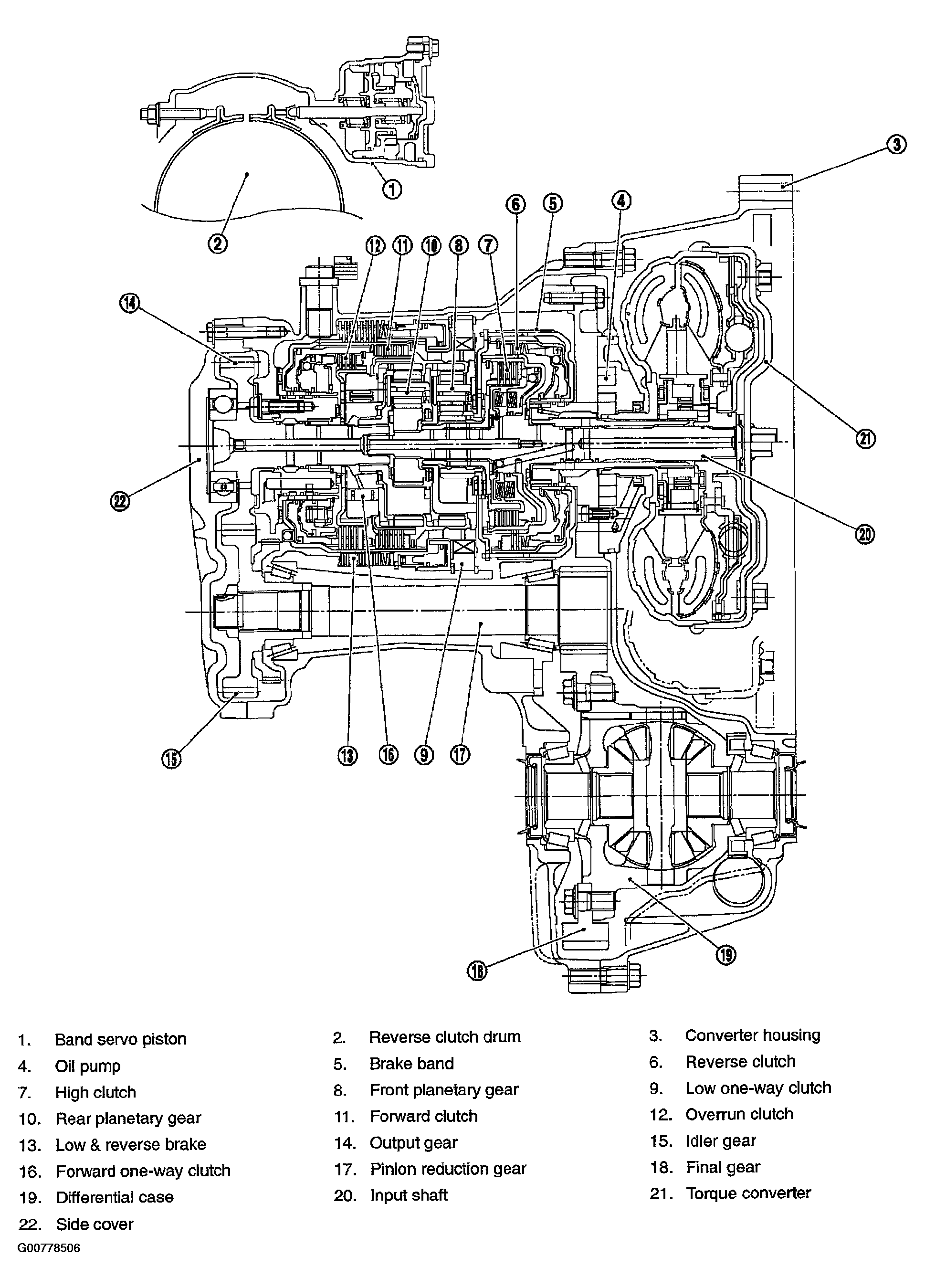

Fig 1: Cross-sectional View
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
