LEMON Manuals
: Even more car manuals for everyone
Home
>>
Nissan-Datsun
>>
2004
>>
Maxima SL, RE4F04B
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System - Introduction
>>
Power Supply Circuit For ECM
>>
Diagnostic Procedure
>>
4) Check Ground Connections
4) Check Ground Connections
Turn ignition switch OFF.
Loosen and retighten four ground screws on the body.

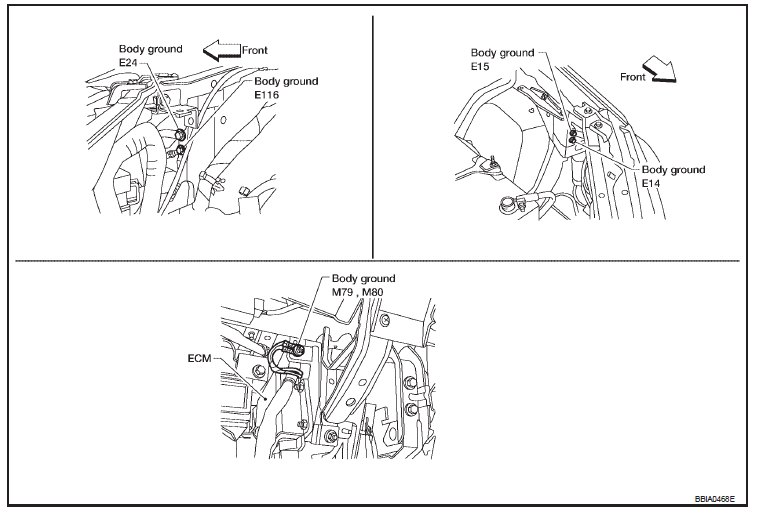

Fig 1: Locating Ground Screws On Body
Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
OK: GO TO 5.
NG: Repair or replace ground connections.
