Overall Inspection Sequence

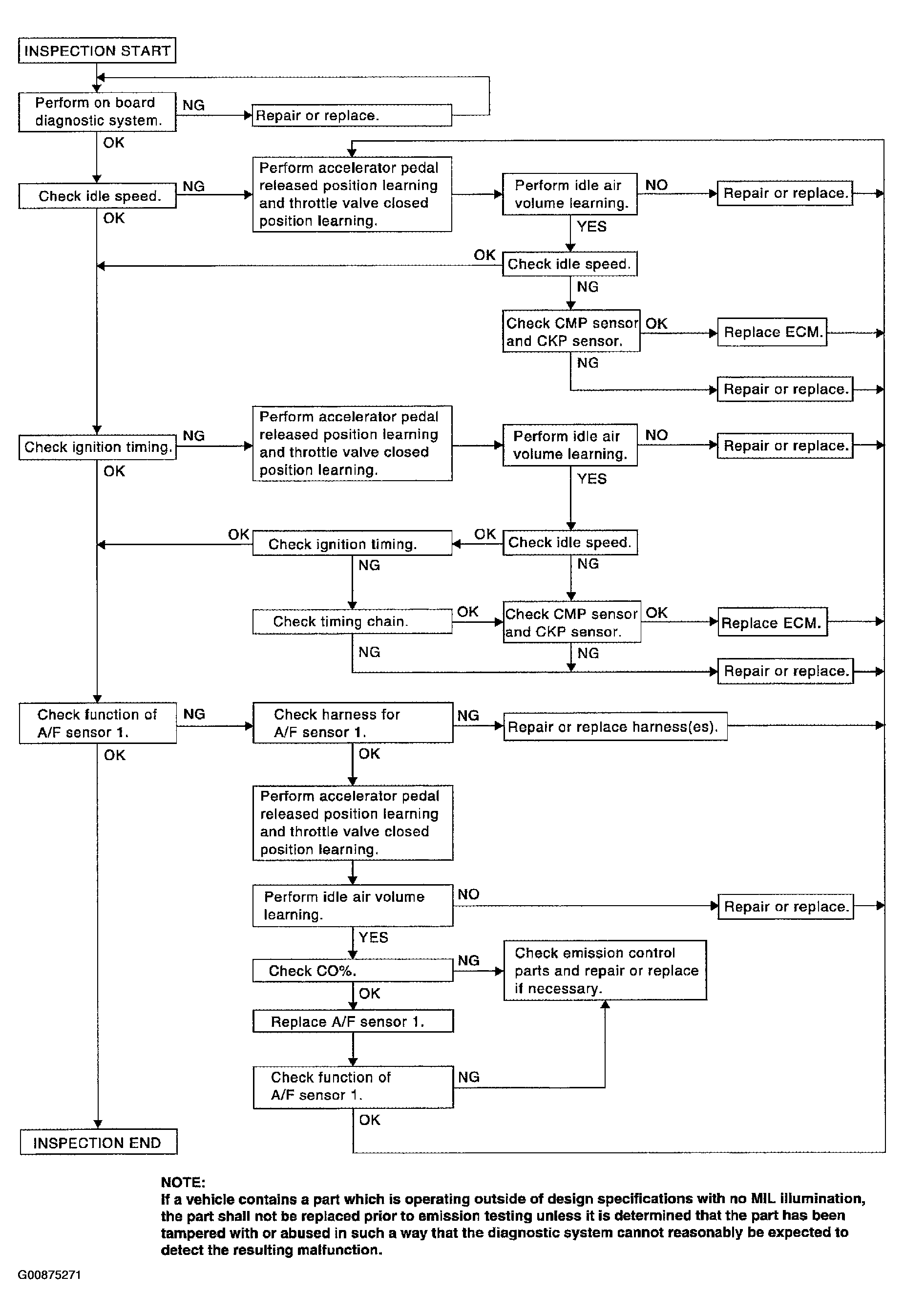

Fig 1: Overall Inspection Sequence
G00875271Courtesy of NISSAN MOTOR CO., U.S.A.
