8. Install The Pressure Pump

To locate the EVAP leak, install EVAP service port adapter and pressure pump to EVAP service port securely.

NOTE: Improper installation of the EVAP service port adapter to the EVAP service port may cause leaking.

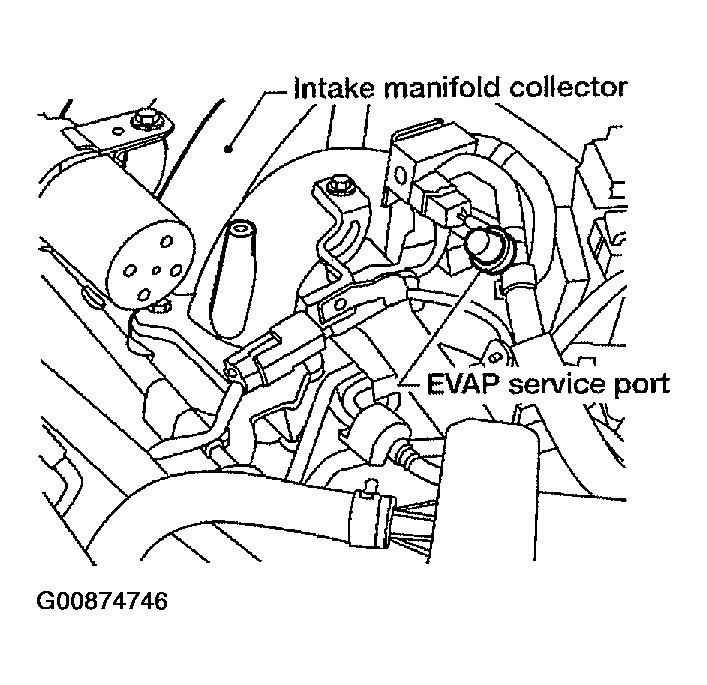

Fig 1: Locating EVAP Service Port
G00874746Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Connecting Pressure Pump To EVAP Service Port
G00874747Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Models with CONSULT-II: GO TO 9.
  2. Models without CONSULT-II: GO TO 10 .
