DTC P0117, P0118: ECT Sensor: Wiring Diagram

For system wiring diagrams, see SYSTEM WIRING DIAGRAMS .

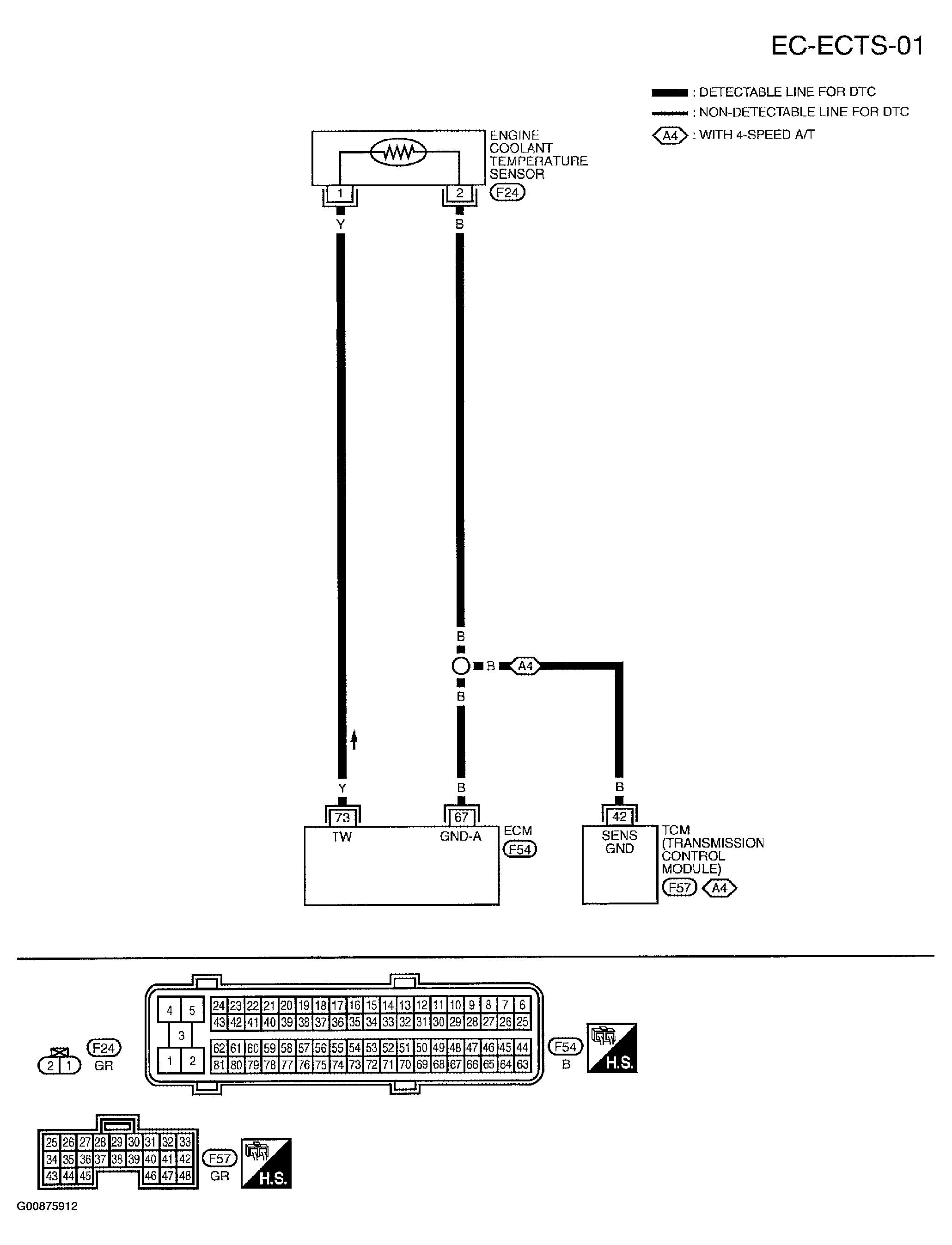

Fig 1: Wiring Diagram - EC-ECTS-01
G00875912Courtesy of NISSAN MOTOR CO., U.S.A.
