Nissan-Datsun
>>
2004
>>
Maxima SL, RE4F04B
>>
Repair and Diagnosis
>>
Electrical
>>
Gauges
>>
Navigation System
>>
Terminals and Reference Value for Display Control unit
Terminals and Reference Value for Display Control unit

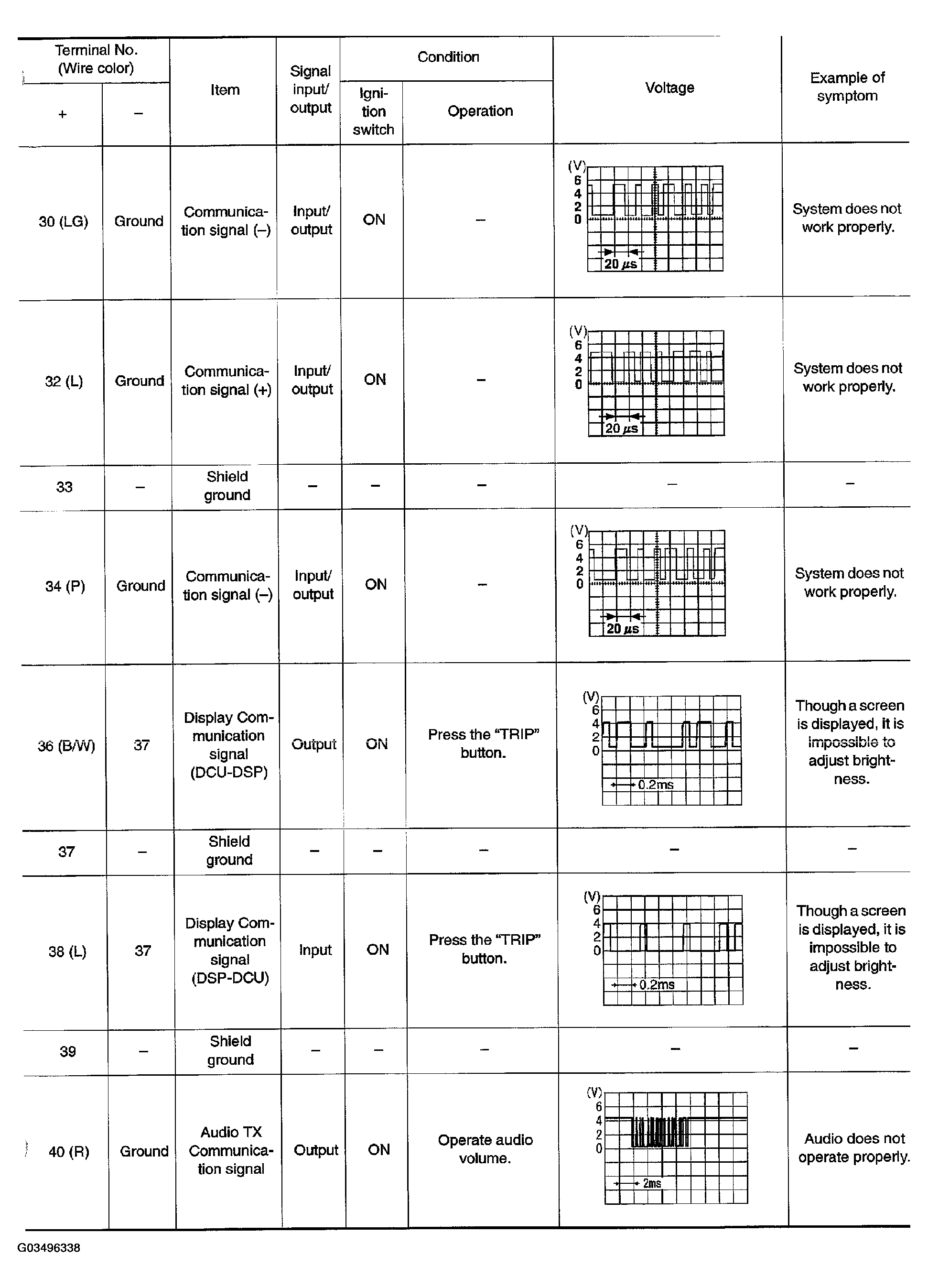

Fig 1: Terminals & Reference Value For Display Control Unit Chart (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

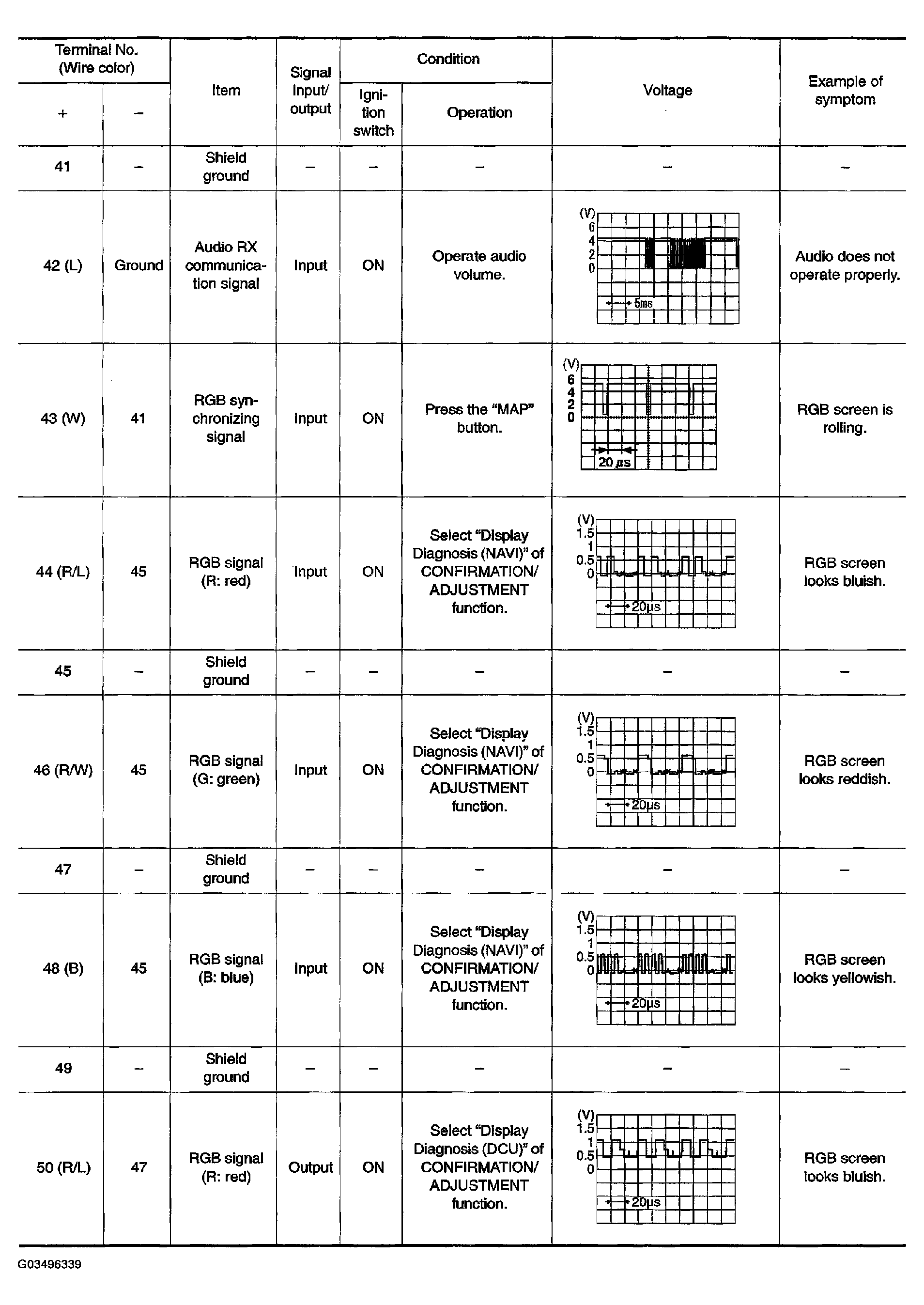

Fig 2: Terminals & Reference Value For Display Control Unit Chart (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

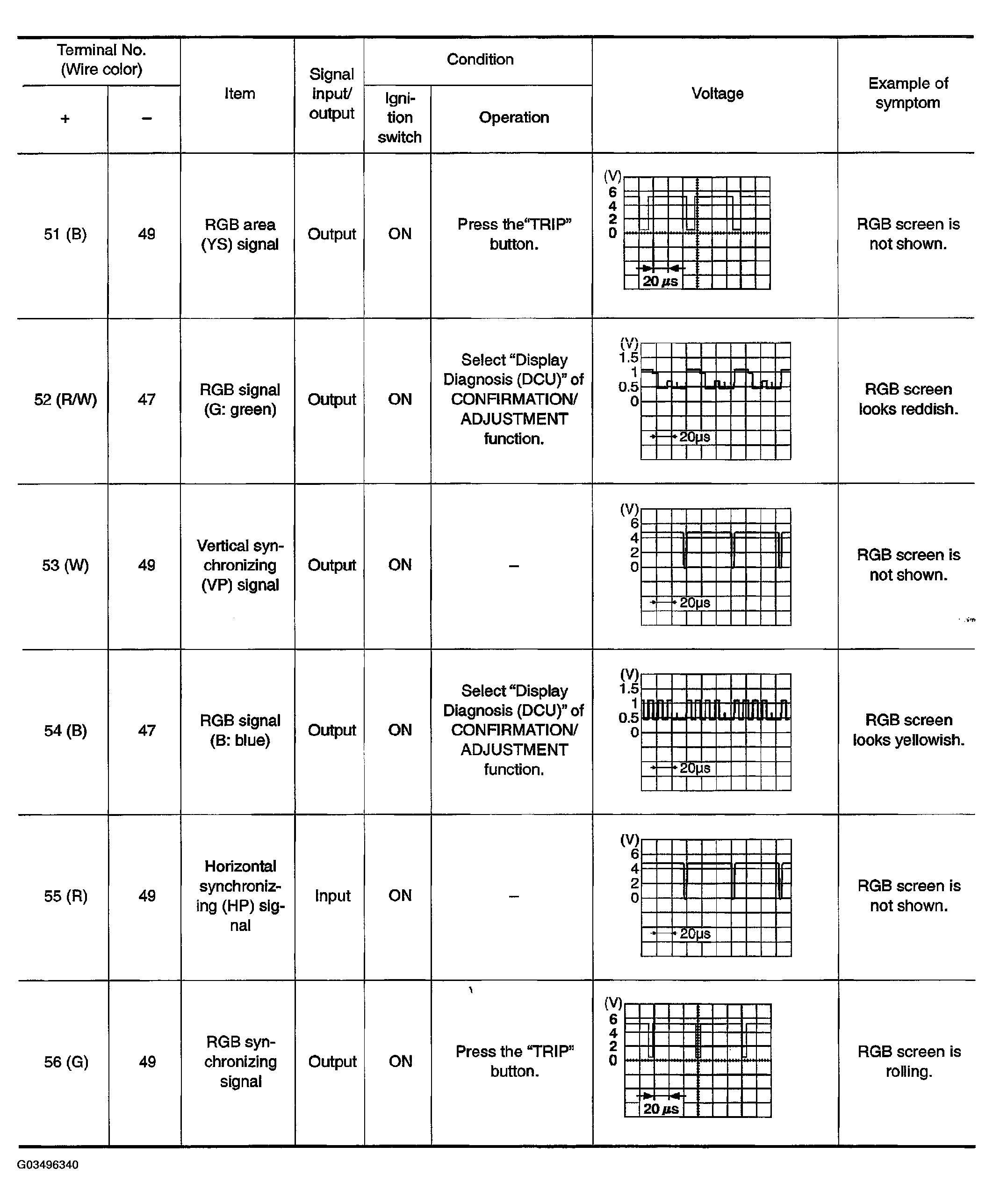

Fig 3: Terminals & Reference Value For Display Control Unit Chart (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

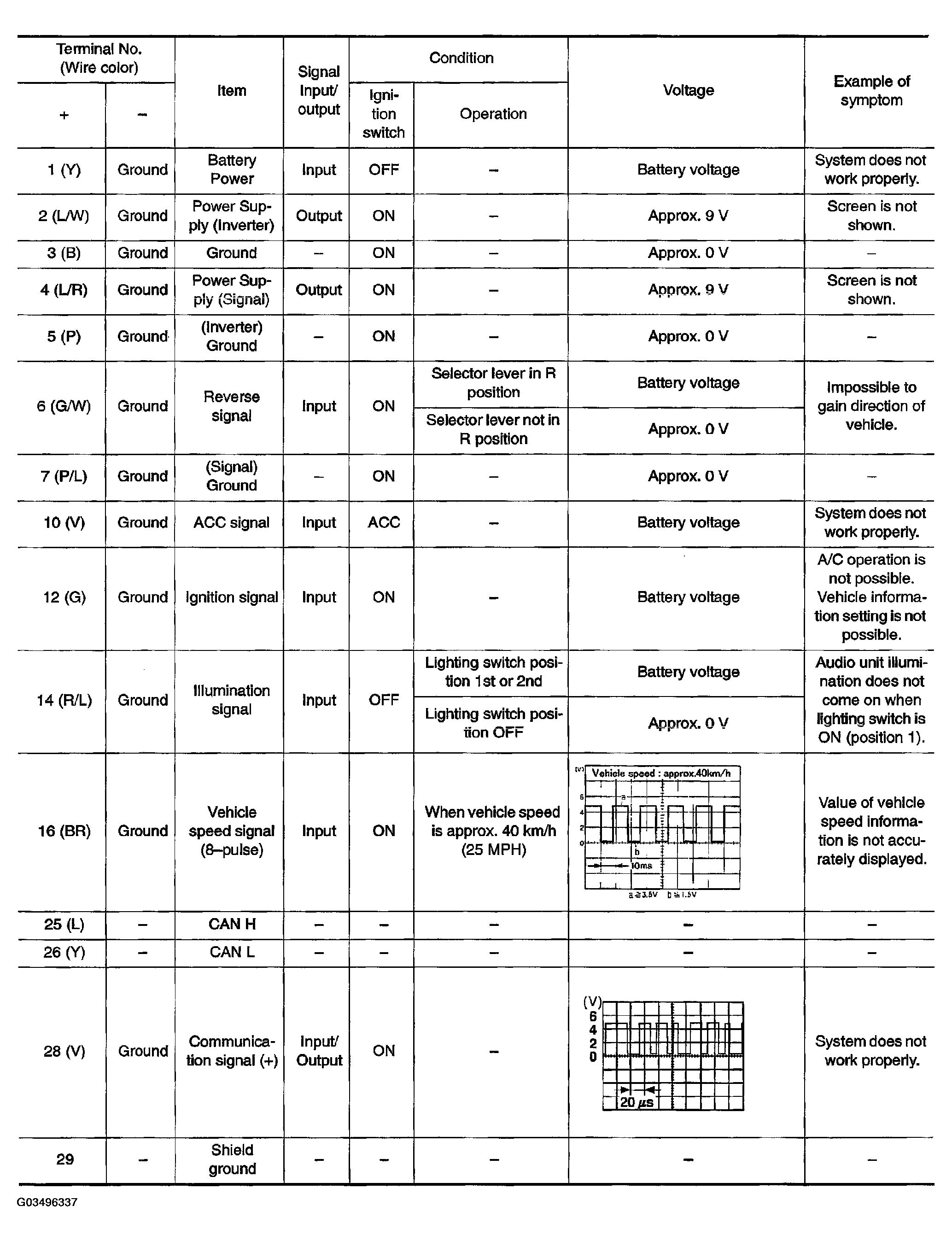

Fig 4: Terminals & Reference Value For Display Control Unit Chart (4 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
