Maxima SL, RE4F04B
>>
Repair and Diagnosis
>>
Electrical
>>
Gauges
>>
Navigation System
>>
Schematic
Navigation System: Schematic

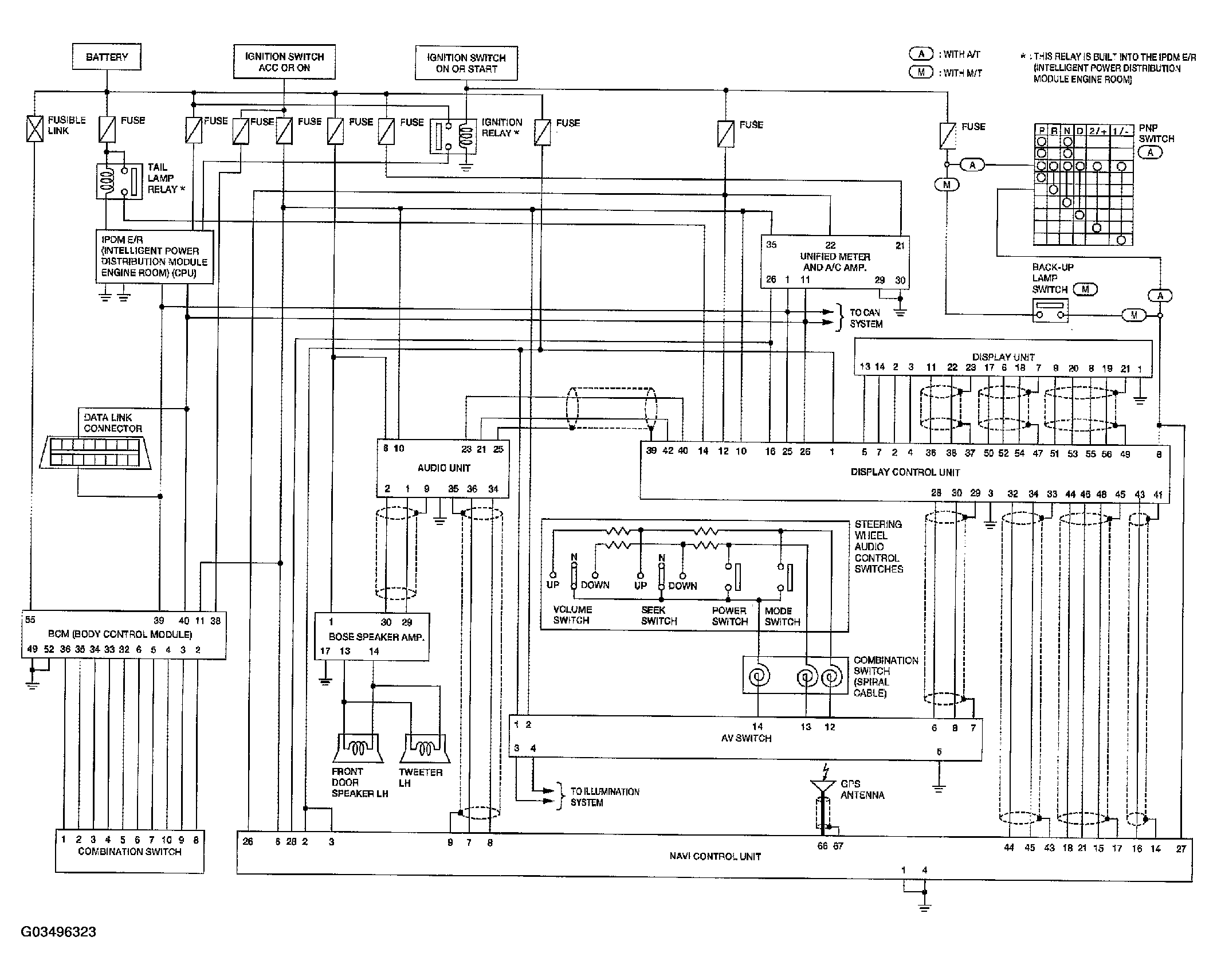

Fig 1: Navigation System Schematic
Courtesy of NISSAN MOTOR CO., U.S.A.

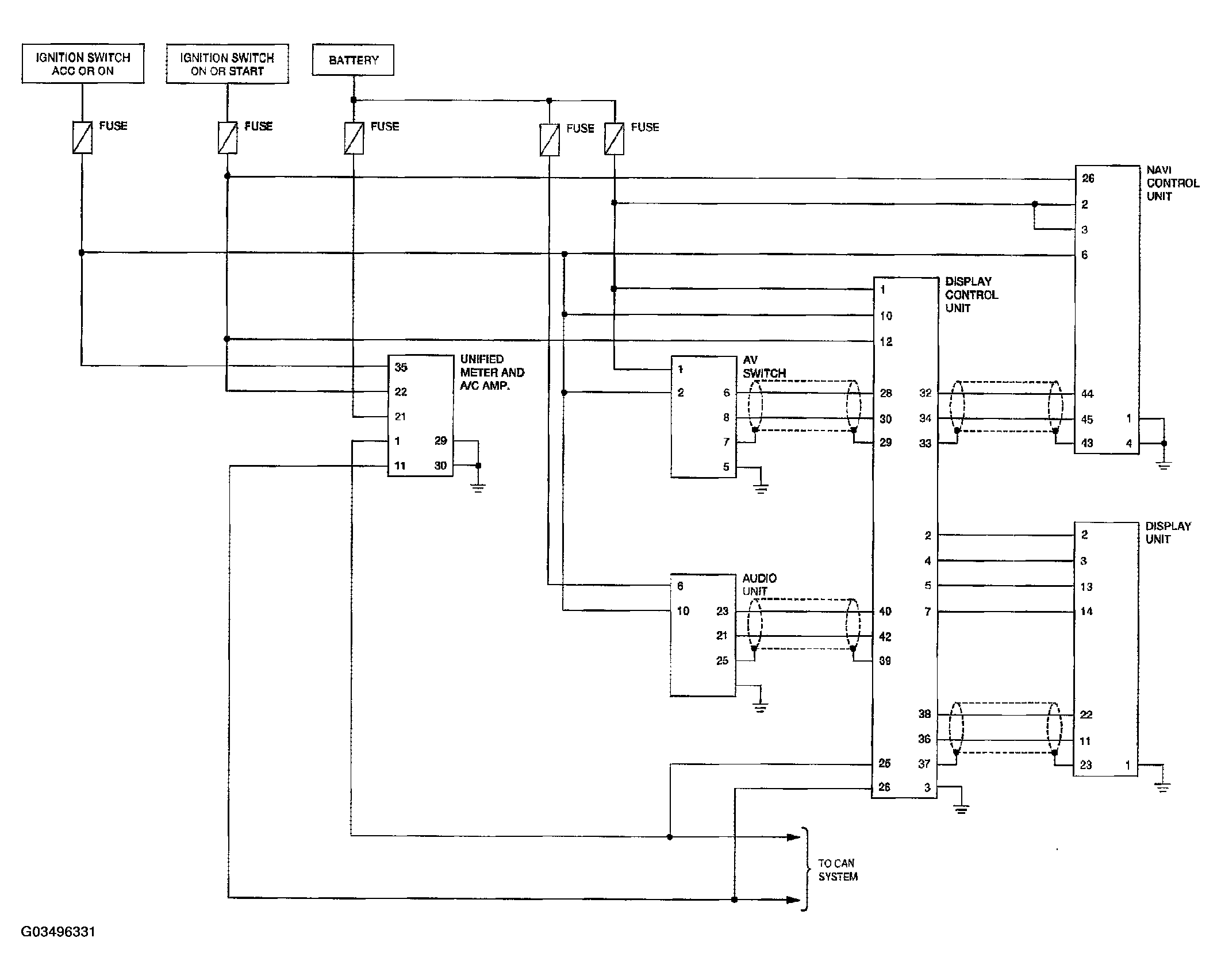

Fig 1: Navigation System Wiring Schematic
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
