RGB Screen is Rolling (NAVI Screen)

1. Turn ignition switch OFF.
2. Disconnect NAVI control unit connector and display control unit connector.
3. Check continuity between NAVI control unit and display control unit.
   TERMINALS CONTINUITY REFERENCE



   Terminals				Continuity
   NAVI control unit (+)		Display control unit (-)
   Connector	Terminal (Wire color)	Connector	Terminal (Wire color)
   M96	16 (W)	M95	43 (W)	Yes

4. Check continuity between NAVI control unit and ground.

OK or NG

1. OK: GO TO 2.
2. NG: Repair harness.

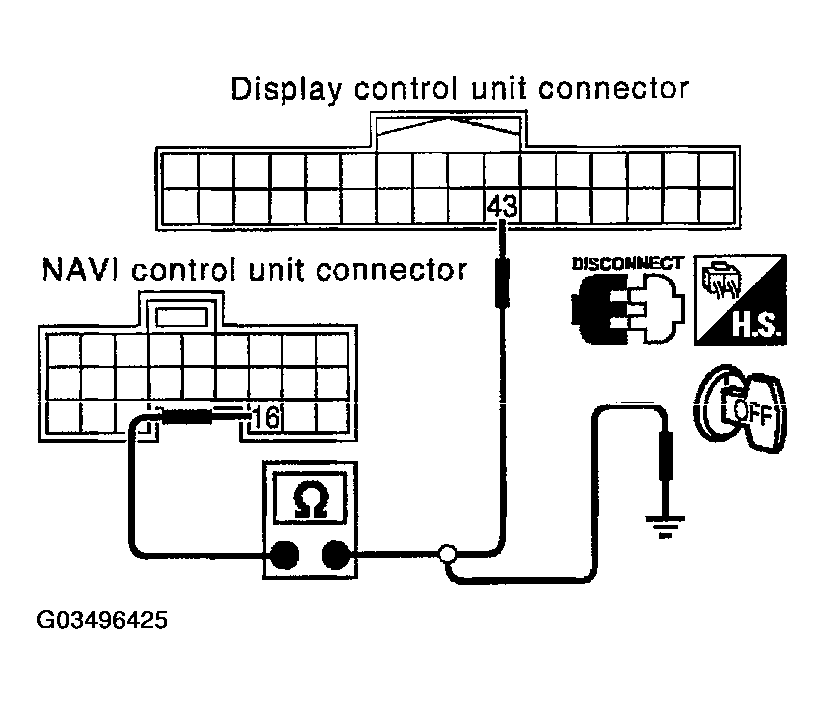

Fig 1: Checking Continuity Between NAVI Control Unit & Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Connect NAVI control unit connector and display control unit connector.
2. Turn ignition switch ON.
3. Check signal between NAVI control unit connector M95 terminals 16 (W) and 14 with CONSULT-II or oscilloscope.

1. 16(W)-14:  Refer to "TERMINALS AND REFERENCE VALUE FOR NAVI CONTROL UNIT  ".

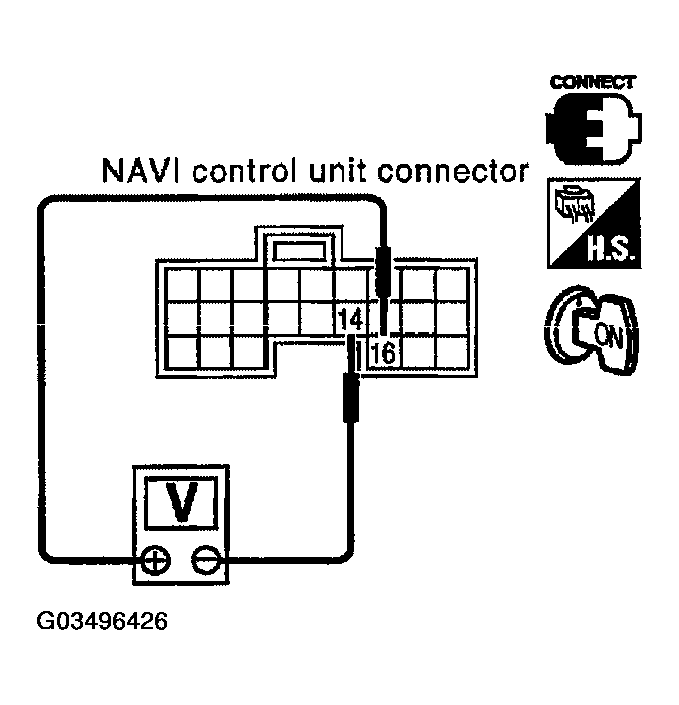

Fig 2: Checking Signal Between NAVI Control Unit Connector Terminals With CONSULT-II Or Oscilloscope

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: Replace display control unit. Refer to "REMOVAL AND INSTALLATION OF DISPLAY CONTROL UNIT  ".
2. NG: Replace NAVI control unit. Refer to REMOVAL AND INSTALLATION OF NAVI CONTROL UNIT  .
