Examples Of Current-Location Mark Displacement: Notes

Vehicle's travel amount is calculated by reading its travel distance and turning angle. Therefore, if the vehicle is driven in the following manner, an error will occur in the vehicle's current location display. If correct location has not been restored after driving the vehicle for a while, perform location correction.

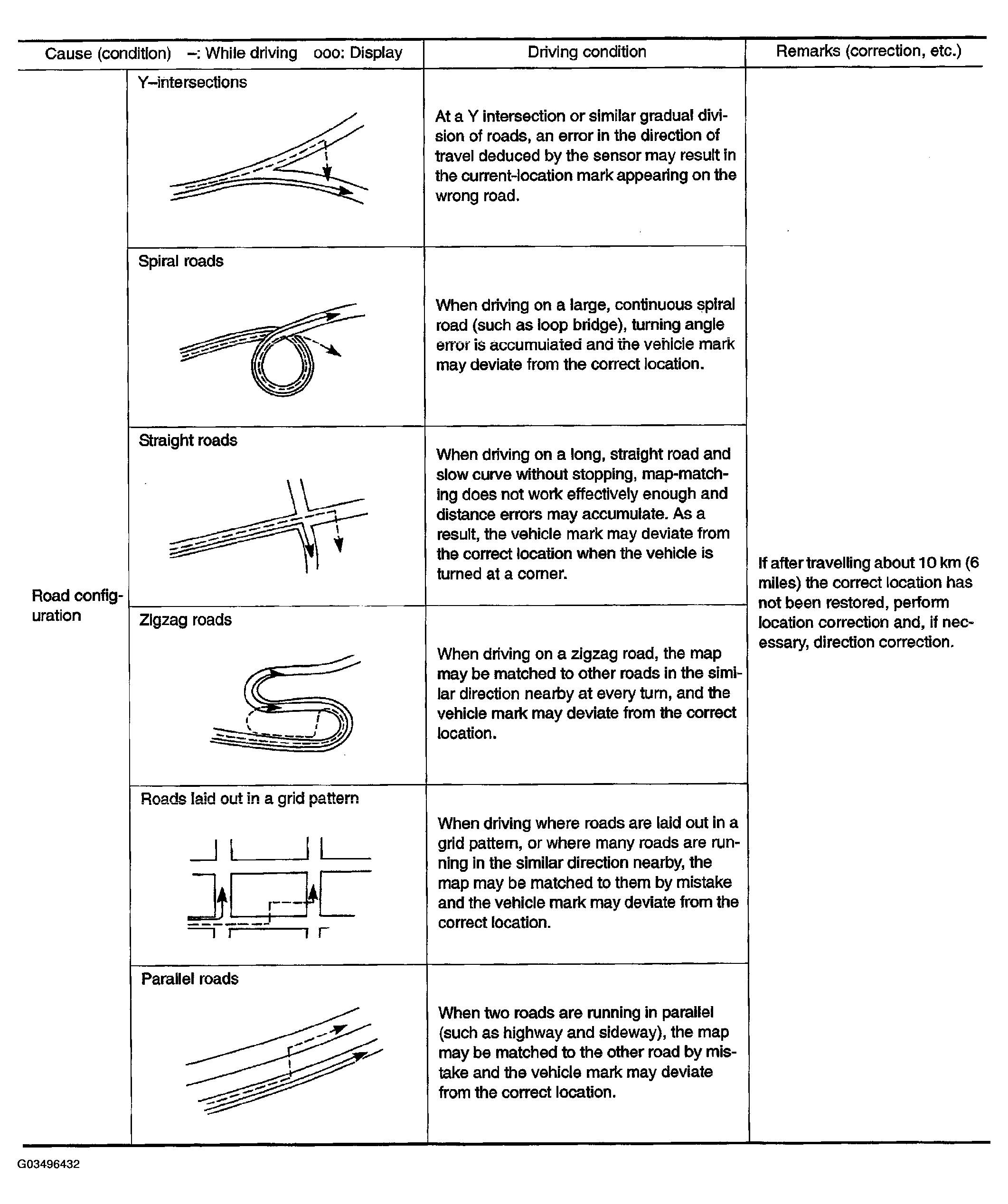

Fig 1: Identifying Examples Of Current-Location Mark Displacement (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

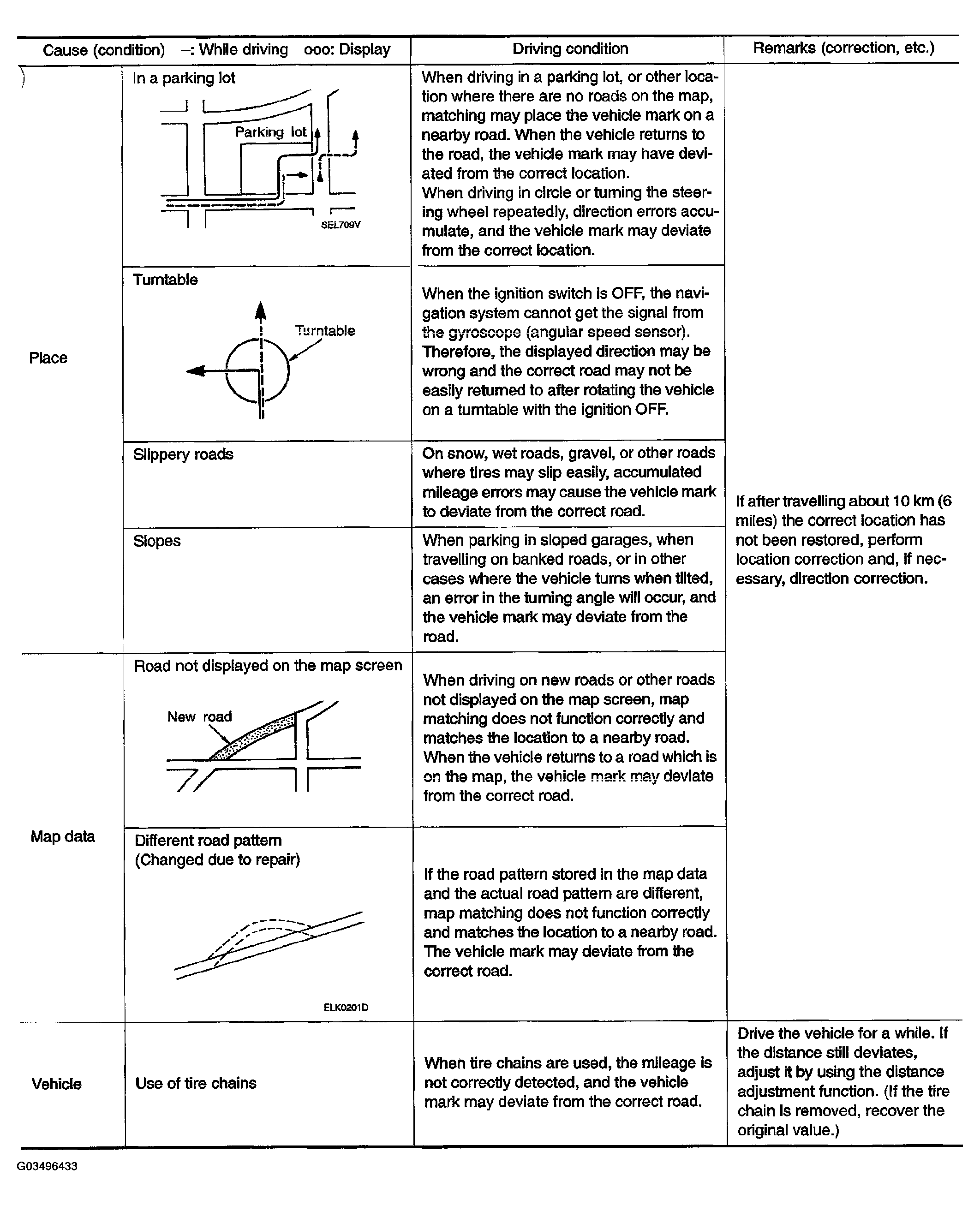

Fig 2: Identifying Examples Of Current-Location Mark Displacement (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

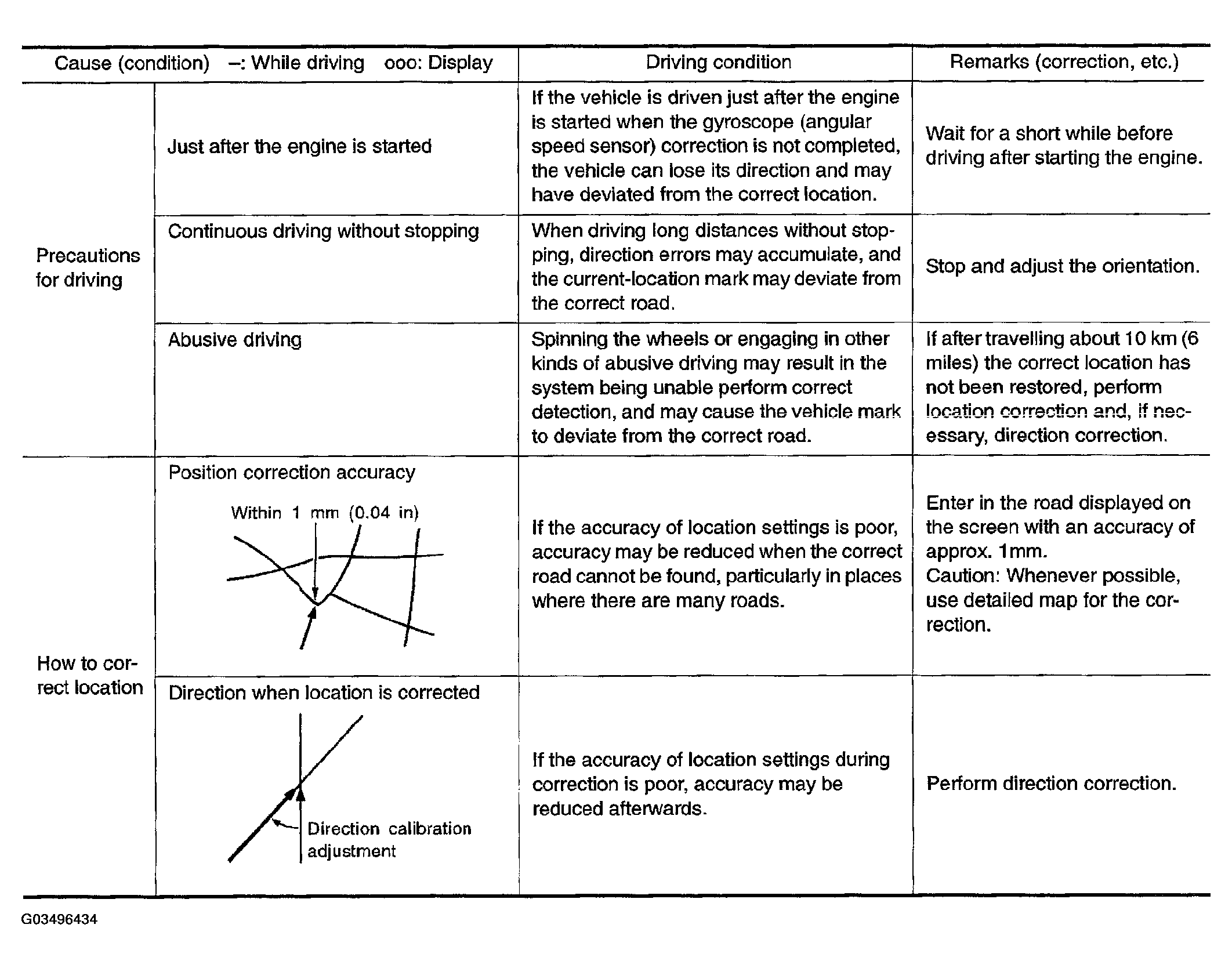

Fig 3: Identifying Examples Of Current-Location Mark Displacement (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

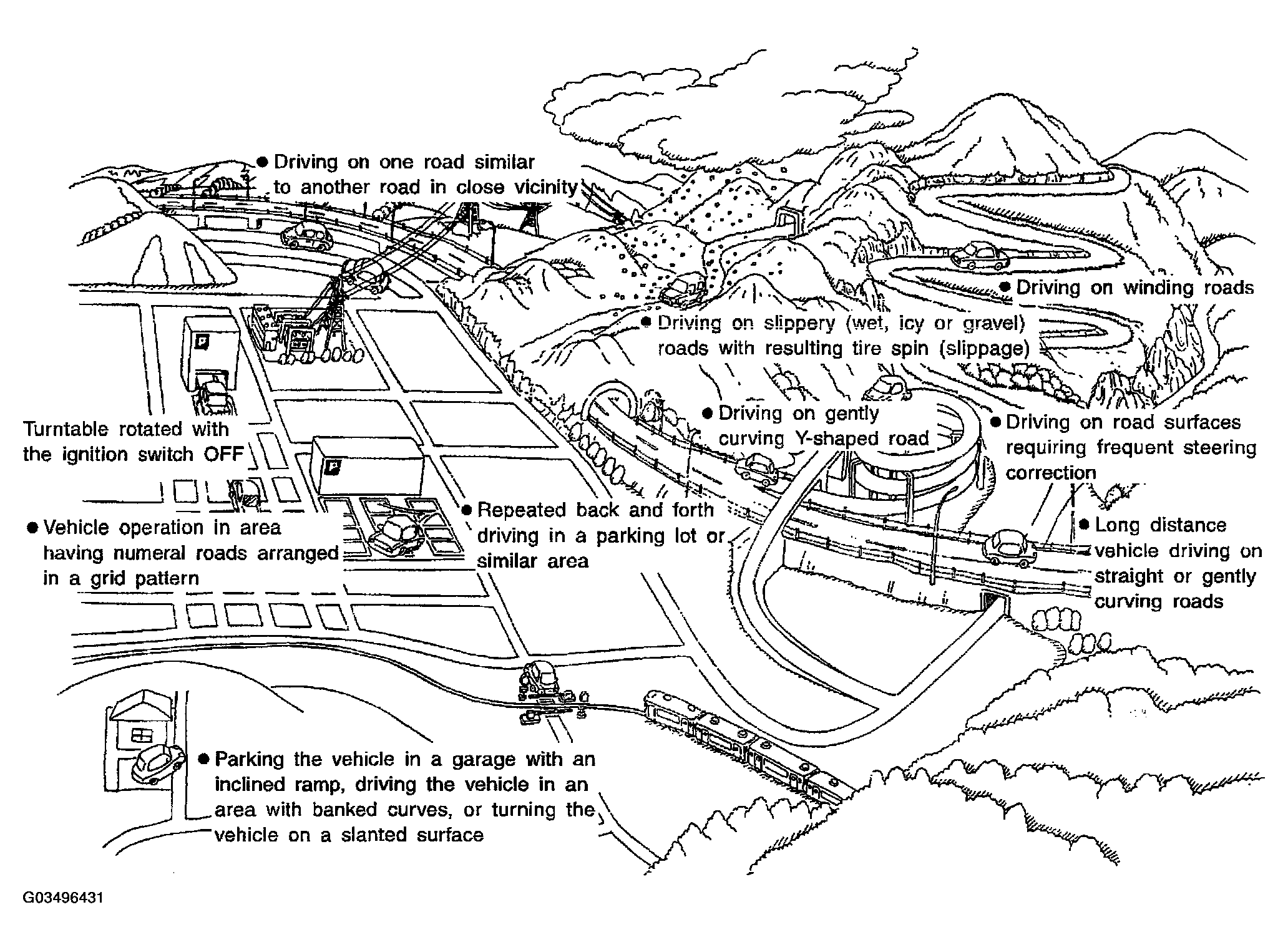

Fig 4: Identifying Examples Of Current-Location Mark Displacement (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
