Automatic Transaxle - Re5F22A: Overhaul: Components

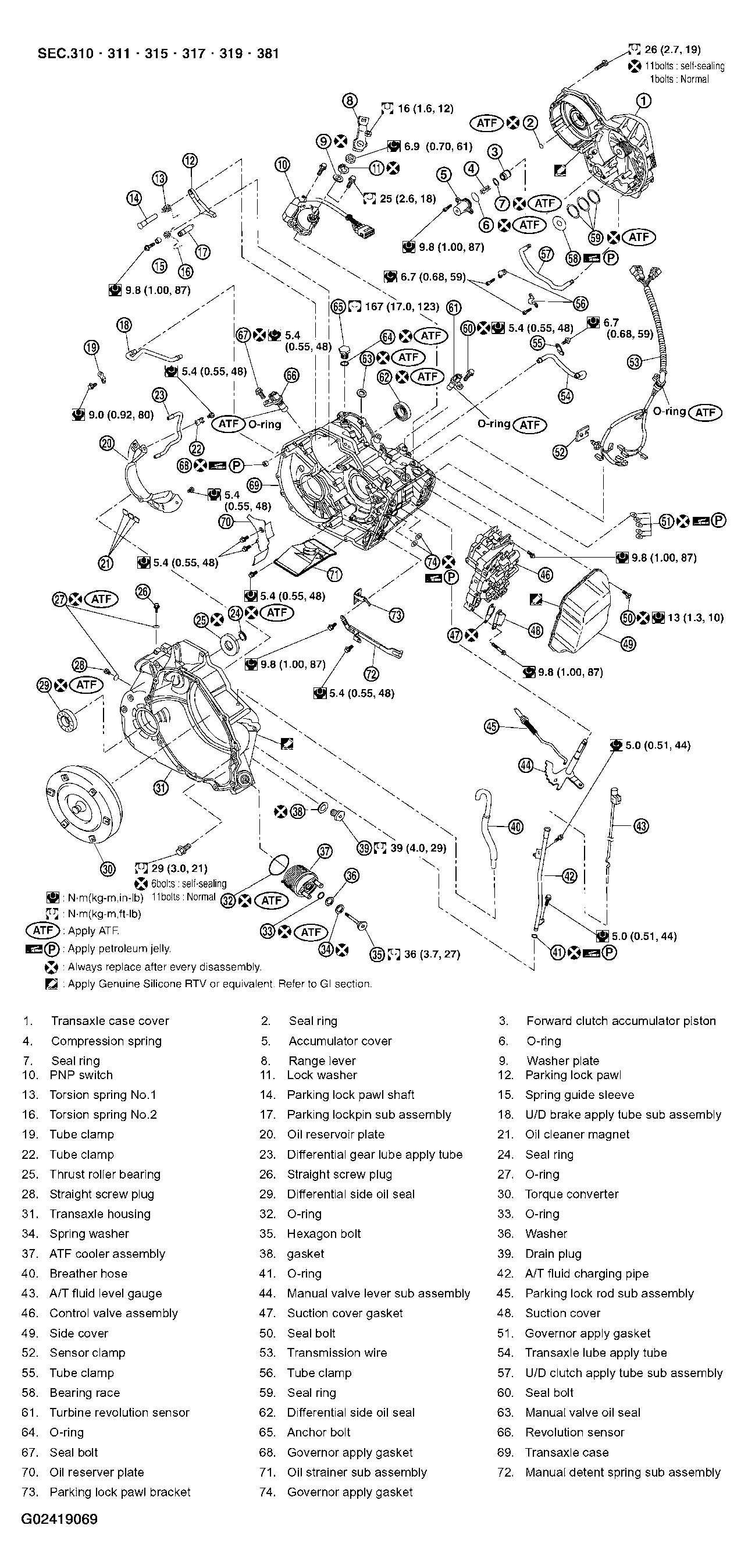

Fig 1: Exploded View Of Automatic Transaxle Components (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

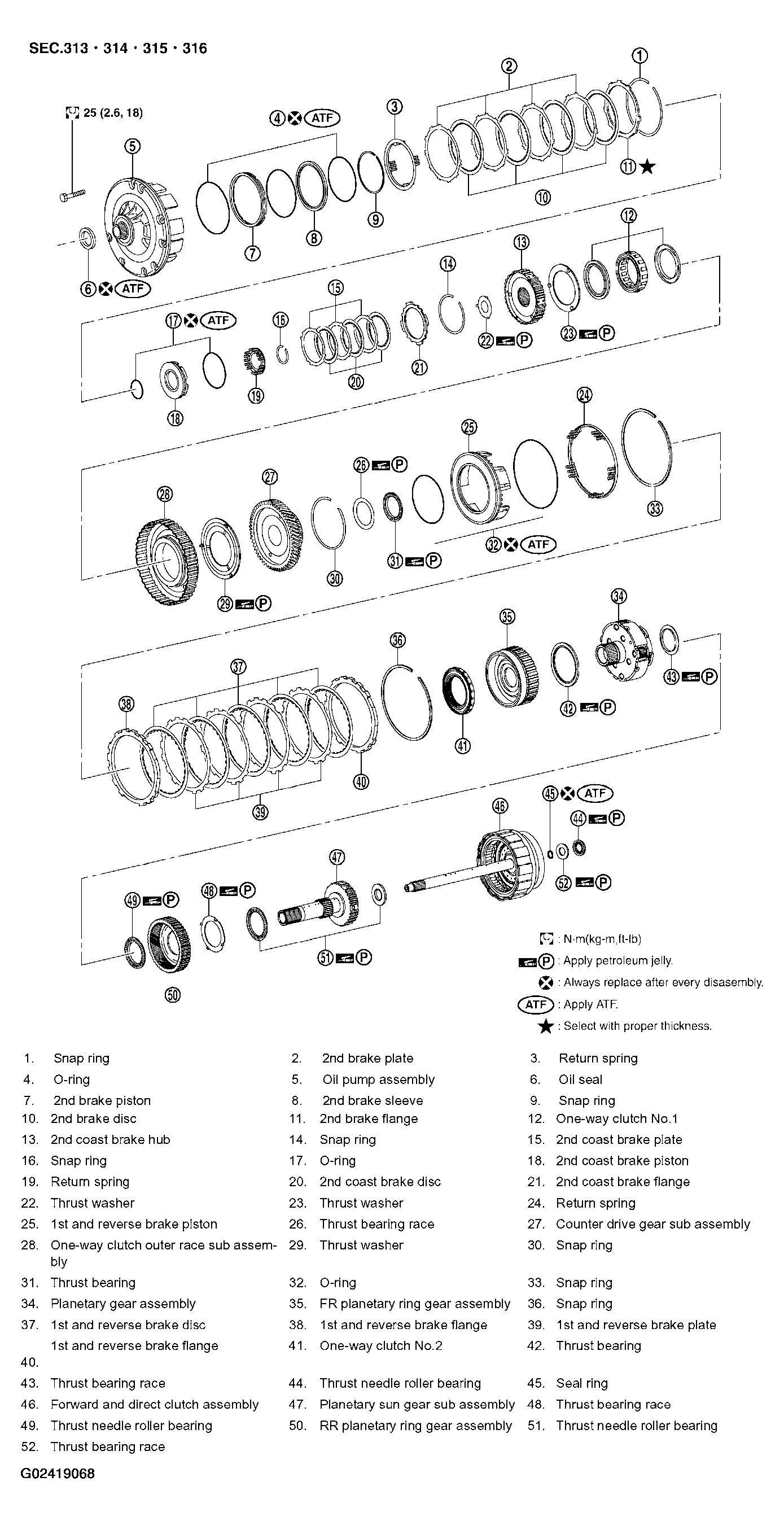

Fig 2: Exploded View Of Automatic Transaxle Components (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

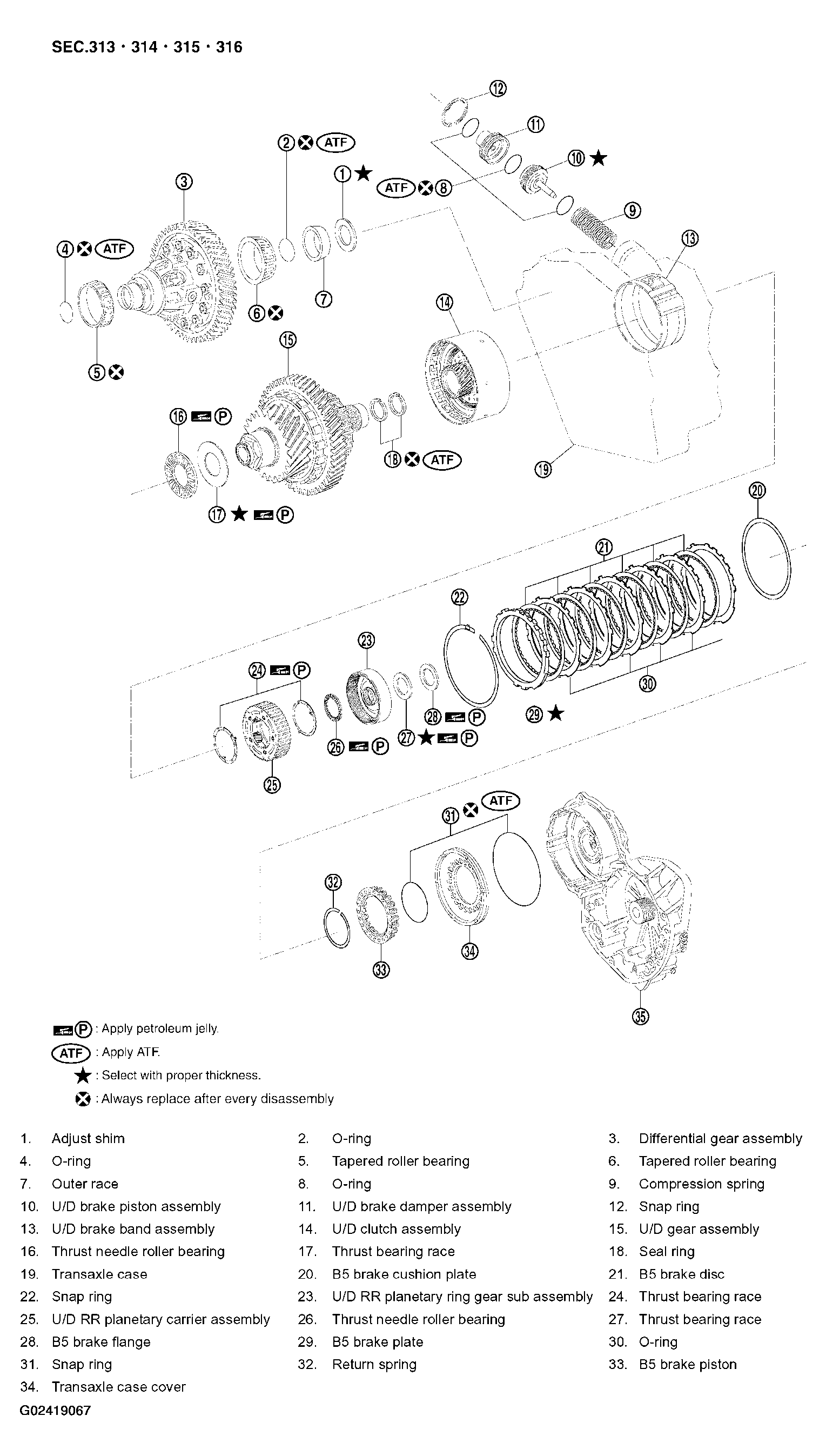

Fig 3: Exploded View Of Automatic Transaxle Components (3 Of 3) With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
