Consult-II Reference Value In Data Monitor Mode

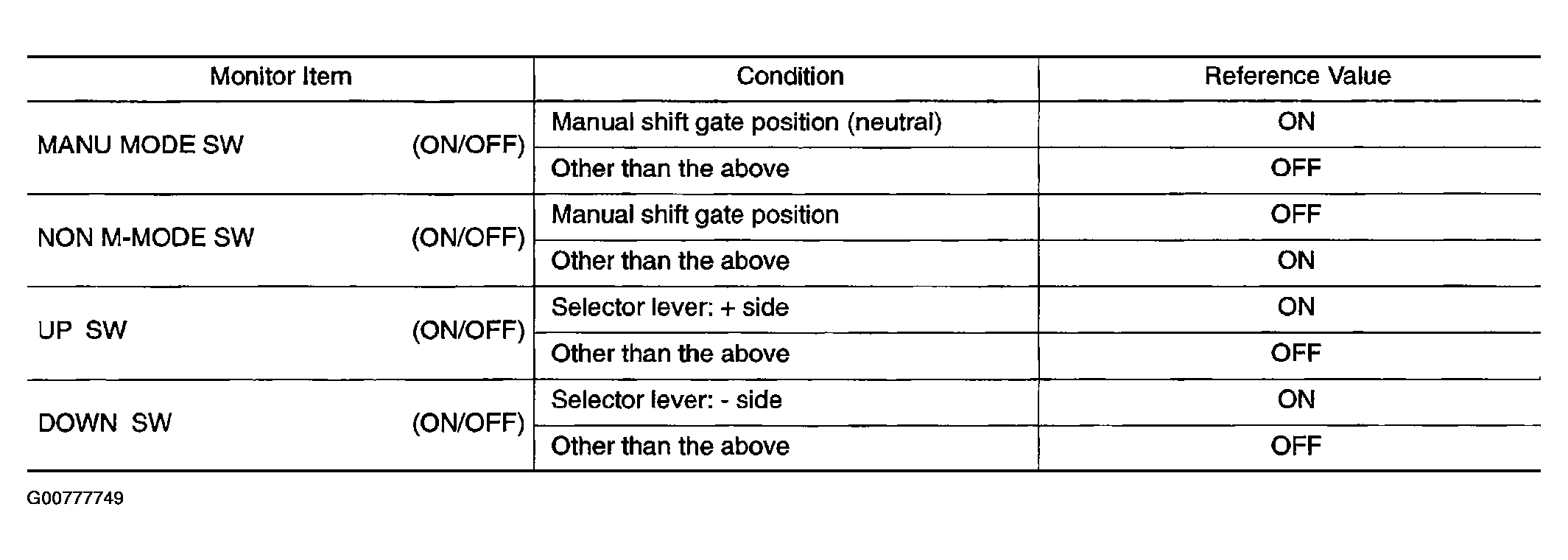

Fig 1: Consult-II Reference Value in Data Monitor Mode

G00777749

Courtesy of NISSAN MOTOR CO., U.S.A.
