2. Check Fuel Tank Temperature Sensor Power Supply Circuit

1. Turn ignition switch OFF.
2. Disconnect "fuel level sensor unit and fuel pump" harness connector.
3. Turn ignition switch ON.

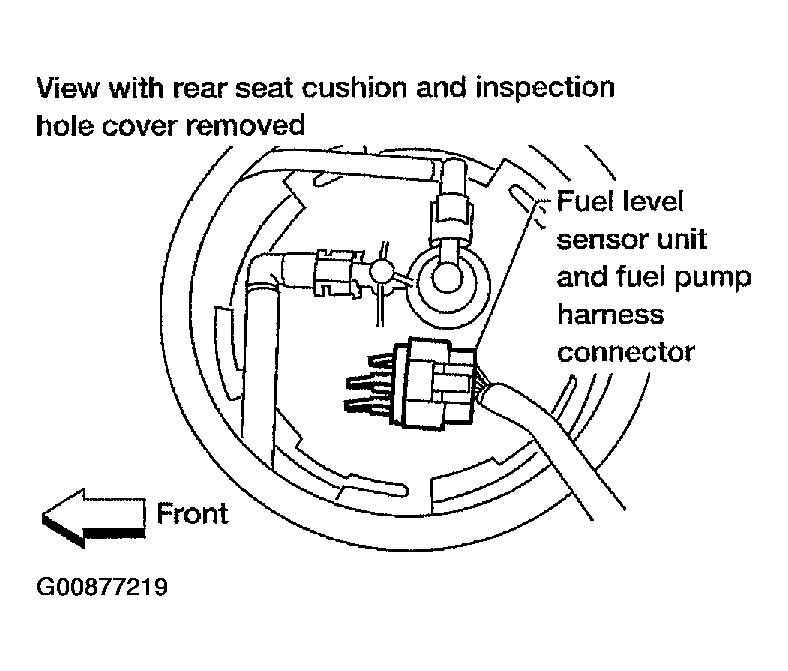

   Fig 1: Disconnect "Fuel Level Sensor Unit And Fuel Pump" Harness Connector

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Check voltage between "fuel level sensor unit and fuel pump" terminal 4 and ground with CONSULT-II or tester.
   1. Voltage: Approximately 5V

OK or NG

1. OK: GO TO 4 .
2. NG: GO TO 3.

Fig 2: Check Voltage

Courtesy of NISSAN MOTOR CO., U.S.A.
